6 stations, 10 stations, 12 stations office paper collator machine, industrial paper gathering machine, paper collating aseembly machine
Description of paper collator machine, paper collating machine
1. there are two types, one is for office use, the other is for industry .
2. there are 6 stations, 10 stations model can be choose.Also we can custom the quantity according to the customer's need.
3. For printing paper, like offset paper, we have suction feed model. It is no harm for the printing when feed the paper.
4. for office paper collator model, it suits for max. thickness of the paper is 120gram.
5. The paper collator machine can be in line with the stitching folding machine.
For office paper collator machine:
1. 6 stations paper collator machine
Specification of 6 stations paper collator machine
Model |
OR-AS-6 |
Feed Station |
6 stations |
Station Capability |
300 sheets(80g) |
Speed |
A4:2800 sets/hour;A3:2200 sets/hour |
Paper Weight |
55g-120g,210g for bin 1 |
Paper Size |
A5-A3 |
Stacker |
Straight, Crisscross |
Stacker Capability |
600 sheets(80g) |
Counter |
Count down, Count up |
LCD Display |
Feed error, Double feed, Jam, No paper, Stacker full |
Other Functions |
Paper eject backwards, Total count |
Power Supply |
AC 110-240V, 50/60Hz |
Weight |
78kg |
Package Dimensions |
870*920*670 mm |
2. 10 stations paper collator machine
Specification of 10 stations paper collator machine
Model |
OR-AS-10 |
Feed Station |
10 stations |
Station Capability |
300 sheets(80g) |
Speed |
A4:2800 sets/hour;A3:2200 sets/hour |
Paper Weight |
55g-120g,210g for bin 1 |
Paper Size |
A5-A3 |
Stacker |
Straight, Crisscross |
Stacker Capability |
600 sheets(80g) |
Counter |
Count down, Count up |
LCD Display |
Feed error, Double feed, Jam, No paper, Stacker full |
Other Functions |
Paper eject backwards, Total count |
Power Supply |
AC 110-240V, 50/60Hz |
Weight |
109KG |
Package Dimensions |
1270(L)×710(W)×970(H) mm |
Features of 6 stations and 10 stations paper collator machine
- Friction feed paper way
- *Provides Crisscross stacking mode

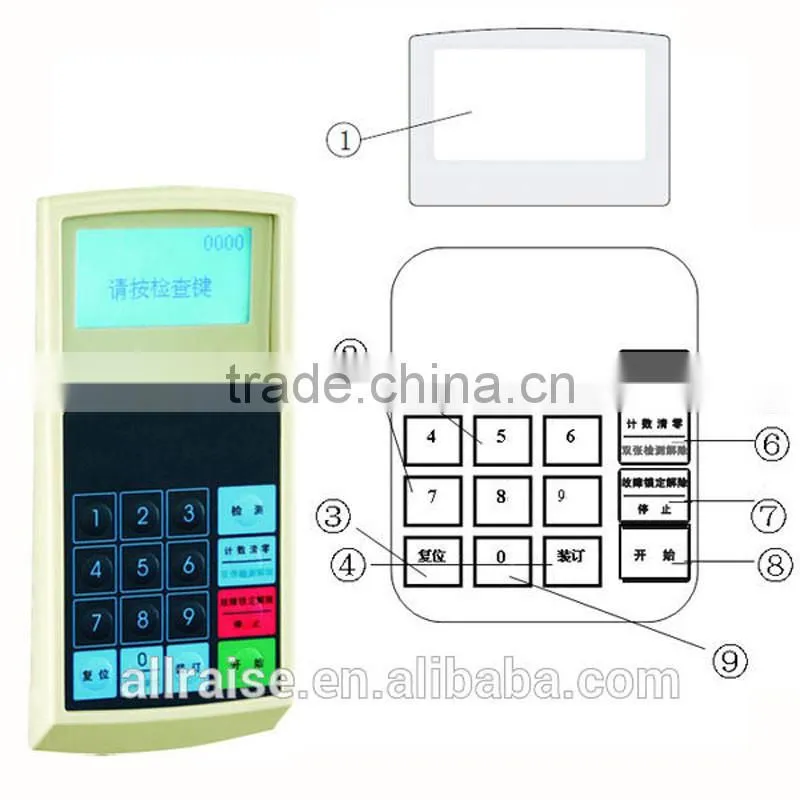

- Unique interface: soft-touch large keyboard, easy and simple to operate
- *The machines operating state is clear at a glance with its liquid crystal display.
- Flexible count mode.
- *Count-down mode: Set the desired collating number before start. The collating machine counts down. The machine automatically stops when the number turns to zero .
- *Suitable many kinds of paper size:A3,B4,A4,B5,A5

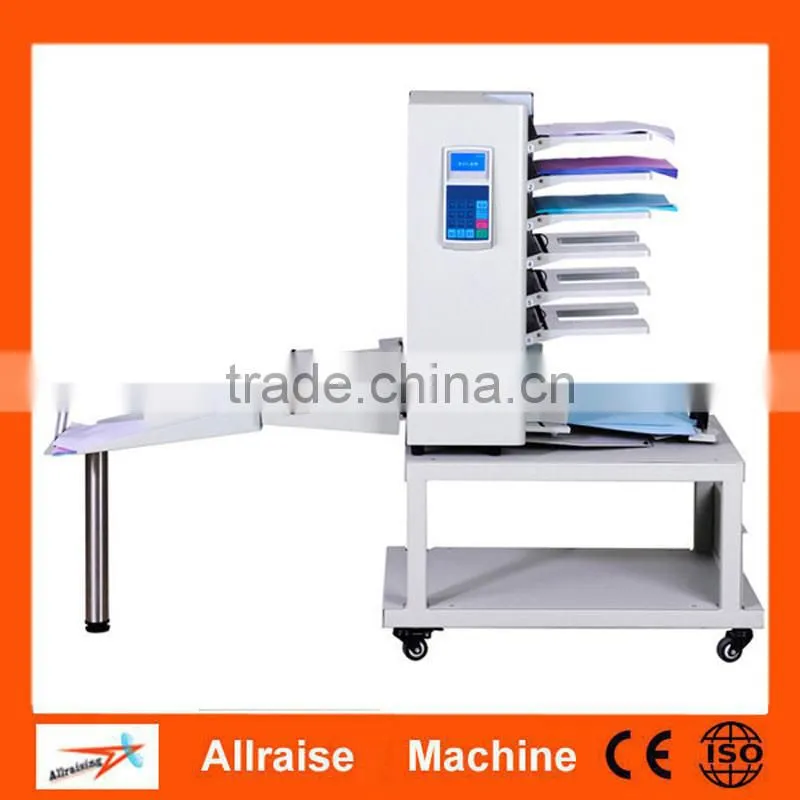

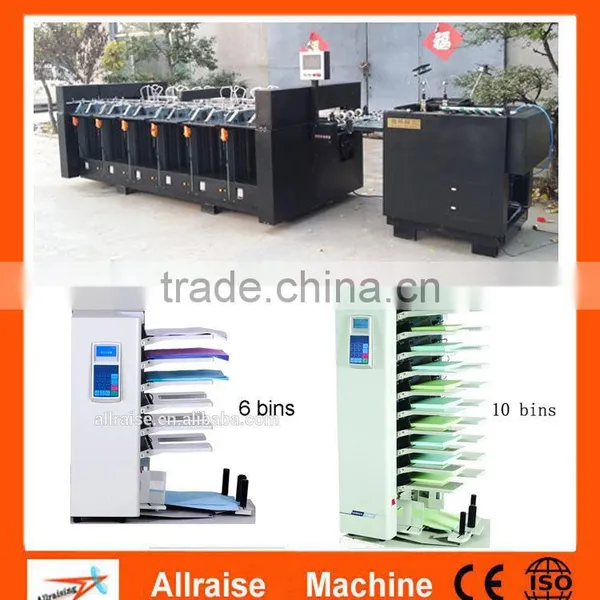

More detail picture of the 6 stations and 10 stations paper collator machine :

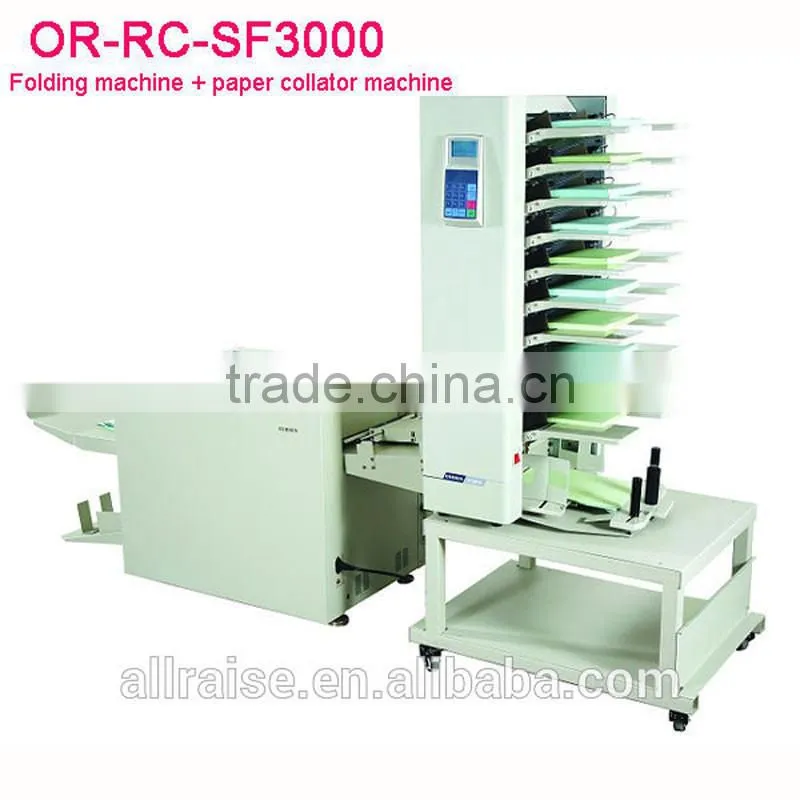

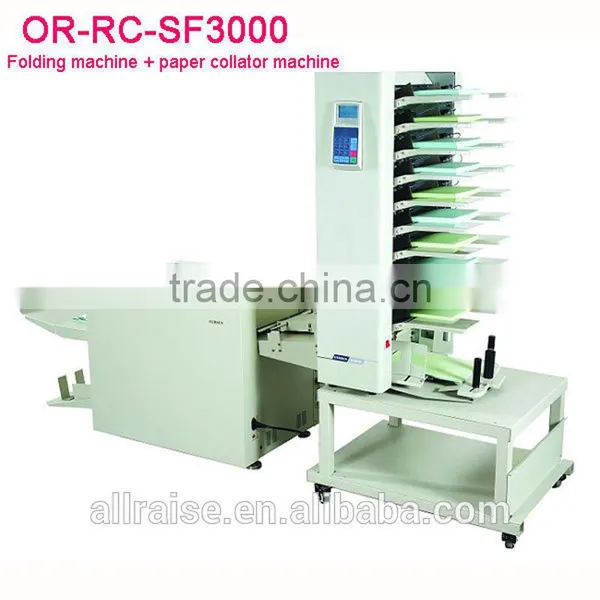

Collating+ binding folding machine
(please click the following picture to see the following model)
For industrial paper collator machine:
- stations quantity can be customed,
- And the paper size can be customed also.
Description of industry paper collator machine
1. The paper collator machine is suitable for big size paper collating.
The common size we have : 530 mm×760 mm 390 mm×543 mm 271 mm×390 mm
We can accept customize
2. Paper thickness: 50~400g
3. It is very suitable for offset paper collating.

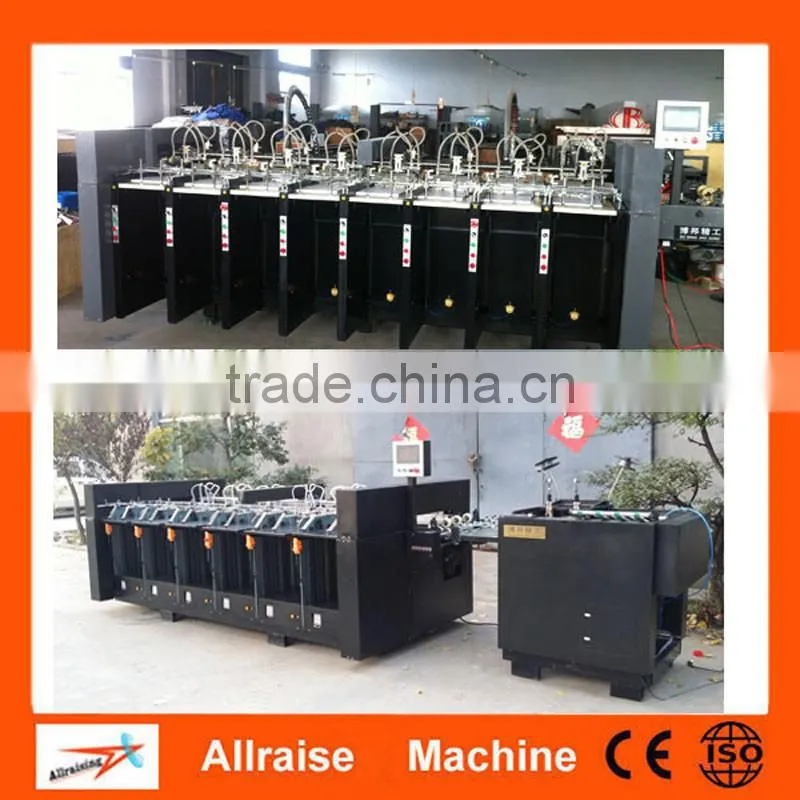

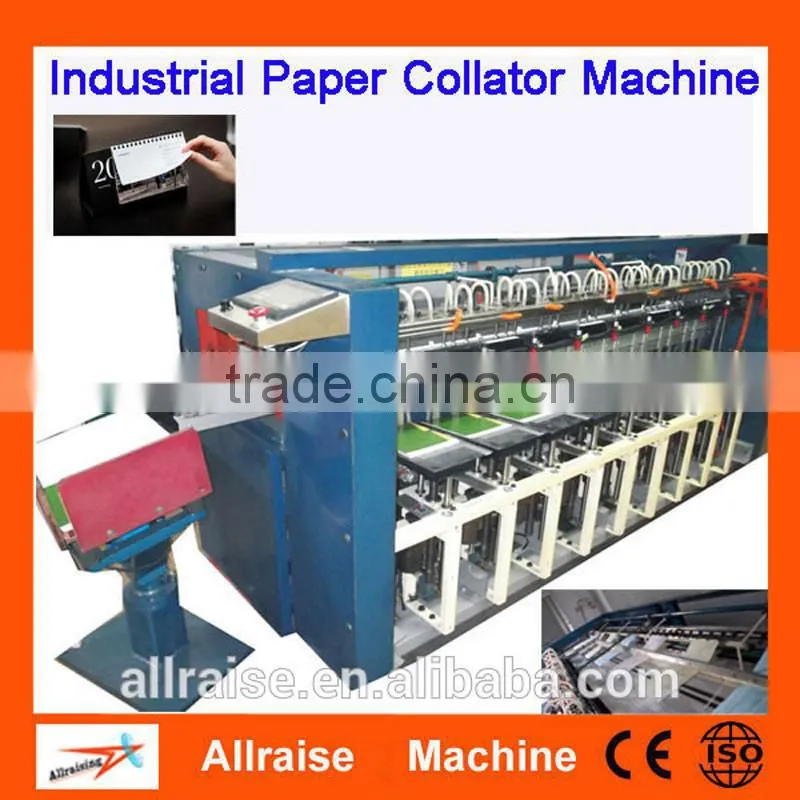

Machine picture of industry paper collator machine
Packaging & Shipping:
| Packing Detailed | Normal standard packing for Collating Machine |
Delivery Detailed |
According to order |
