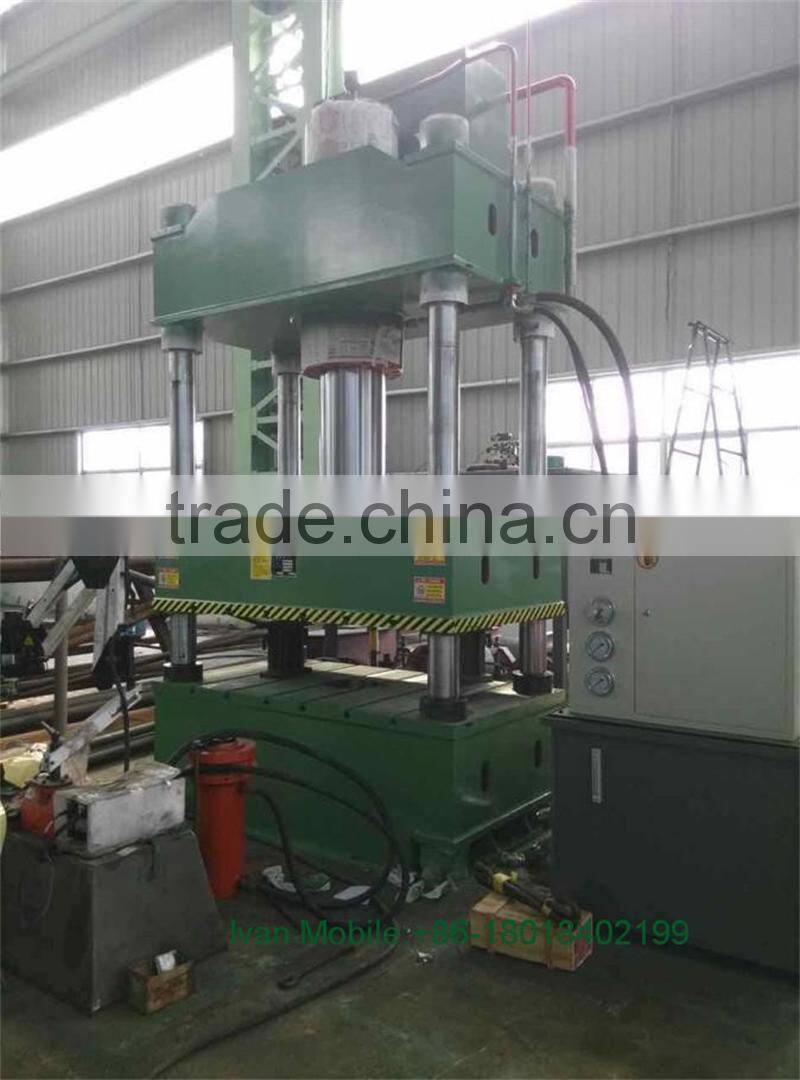

DESCRIPTION 2015 400T four column hydraulic press ,oil hydraulic press
1.This machine is suitable for pressing process of various plastic materials.
2.This machine has independent power agencies and electrical systems, and the button centralized control, process action relay controller controls, jog, semi-automatic two modes of operation.
3.Working pressure of the machine, the travel range can be adjusted according to process needs.
More details please feel free to contact us!
TECHNICAL PARAMETER 2015 400T four column hydraulic press ,oil hydraulic press
| Type | Unit | 400T | 500T | 630T | 800T | 1000T | 1500T | 2000T | ||
| Nominal Force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 15000 | 20000 | ||
| Max. working Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||
| Max. opening Height | mm | 1400 | 1400 | 1500 | 1500 | 1600 | 1800 | 2000 | ||
| Slider Stroke | mm | 800 | 800 | 900 | 1000 | 1000 | 1200 | 1400 | ||
| Ejector Force | KN | 500 | 630 | 1000 | 1600 | 2000 | 4000 | 6300 | ||
| Ejector Stroke | mm | 250 | 300 | 300 | 320 | 350 | 400 | 400 | ||
| Slider Speed | Idle | mm/s | >150 | >150 | >150 | >150 | >150 | >150 | >150 | |
| Working | mm/s | 10 | 10 | 10 | 8 | 10 | 12 | 12 | ||
| Return | mm/s | 80 | 85 | 80 | 75 | 70 | 80 | 80 | ||
| Worktable Size | L-R | mm | 1400 | 1400 | 1600 | 1800 | 1800 | 2000 | 2400 | |
| F-B | mm | 1200 | 1400 | 1400 | 1400 | 1600 | 1600 | 2000 | ||
| Blanking Hole Diameter | mm | φ120 | φ120 | φ120 | φ120 | φ120 | φ120 | φ120 | ||
| Motor Power | KW | 22 | 37 | 22x2 | 45 | 37x2 | 45x2 | 45x3 | ||
| Overall Size | L-R | mm | 3600 | 3800 | 4100 | 4400 | 4400 | 5100 | 5600 | |
| F-B | mm | 1500 | 1700 | 1900 | 2000 | 2200 | 2500 | 2800 | ||
| Height | mm | 4300 | 4500 | 5100 | 5350 | 5600 | 6300 | 7300 | ||
| Gross Weight | KG | 18500 | 25000 | 34000 | 41000 | 48000 | 65000 | 90000 | ||
Requirement of main electric and hydraulic components
NO | NAME | standard configuration |
1 | Instrumentation integrated valve | JINING TAIFENG |
2 | operated solenoid valve | JINING TAIFEI |
3 | high-pressure oil pump | QIDONG |
4 | motor | NANTONG HENGLI |
5 | Non-contact proximity switch | 0MRON |
6 | command button switch | Schneider |
7 | pressure gauge | WUXI |
8 | miniature relay | TIANSHUI ,SUZHOU SIEMENS |
9 | control transformer | |
10 | automatic air breaker | |
11 | sealing ring | Austria |
2015 400T four column hydraulic press ,oil hydraulic press

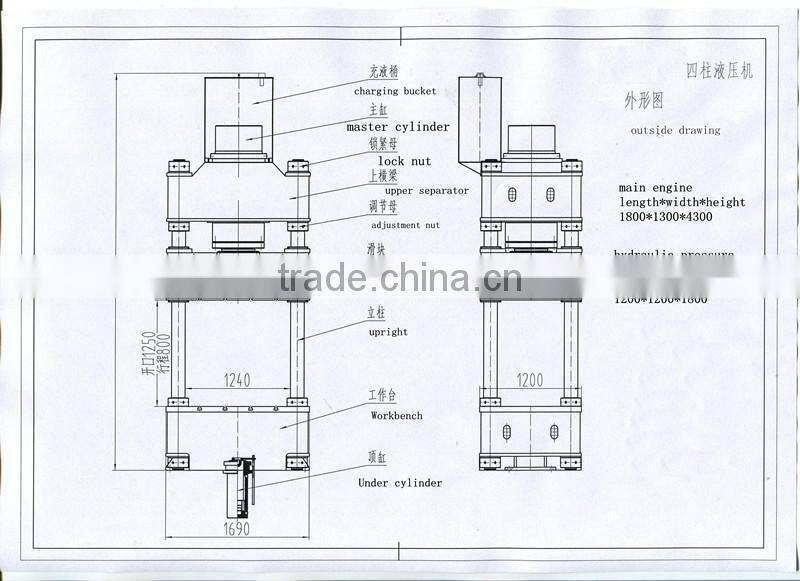

OUTSIDE DRAWING 2015 400T four column hydraulic press ,oil hydraulic press
