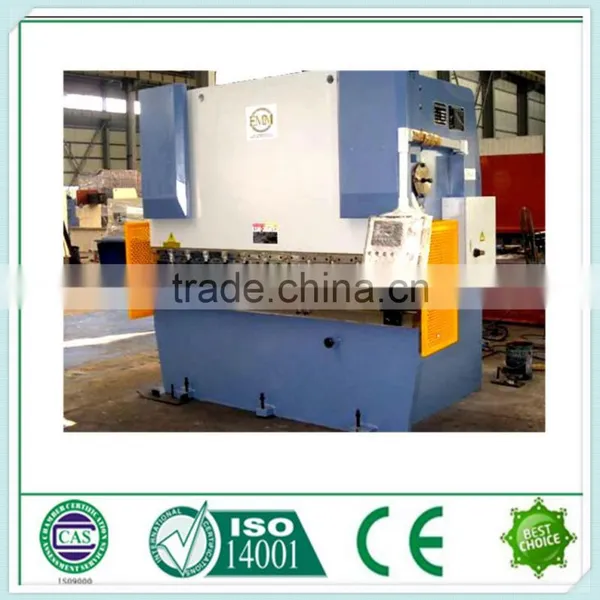

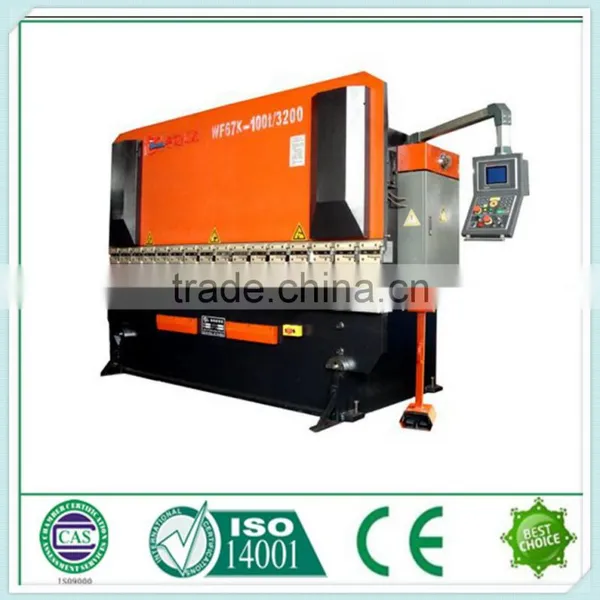

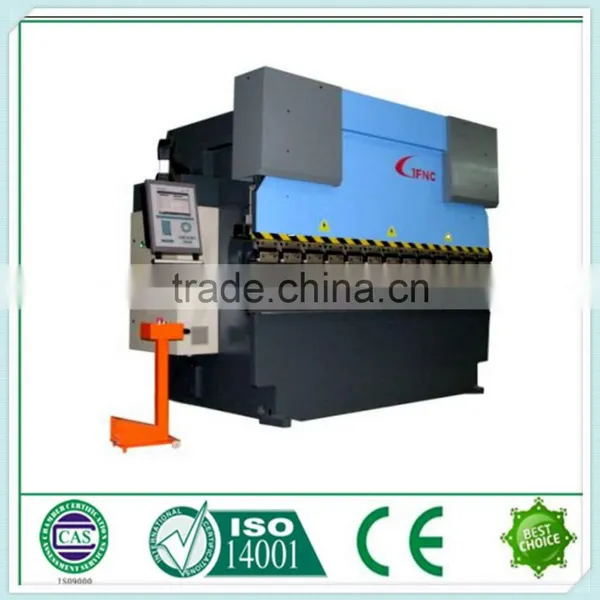

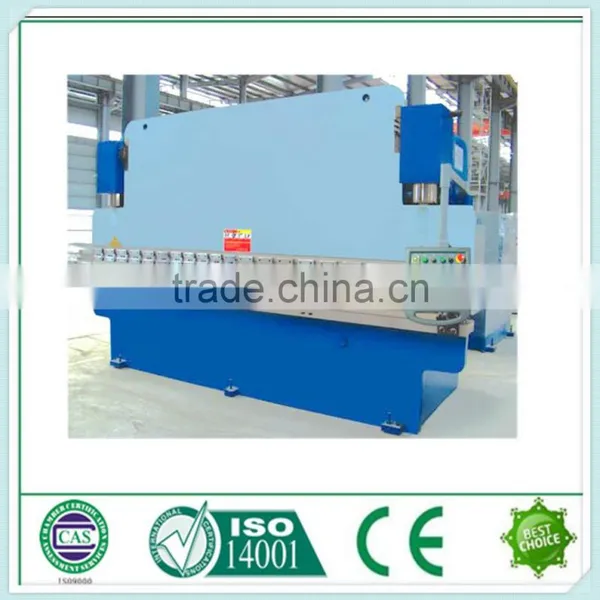

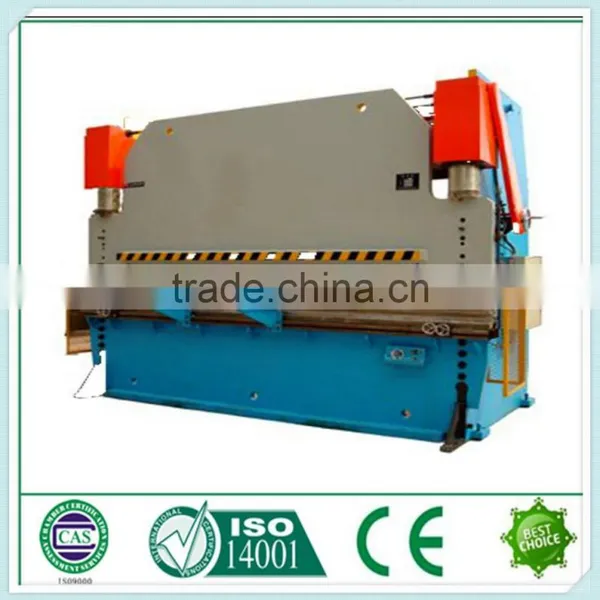

Help Center2015 NEW WC67Y-200T3200 Hydrulic Plate Semi-automatic Press Brake Bending Machine Manufacturer
Related Products
-
WC67Y Series Sheet Metal Bending Machines ,press Brake From China Top SupplierUS$ 10,000 - 100,000MOQ: 1 Set -
New Jiangsu WC67K 100T/3200 CNC Bending MachineUS$ 32,000 - 40,000MOQ: 1 Set
-
2015 Hot Sale WC67K 200/3200 CNC Sheet Metal Bending Machine With Stable Structure From ChinaUS$ 32,000 - 40,000MOQ: 1 Set
-
Hayrake Tooth Spring Tooth RakeUS$ 0.5 - 1.2MOQ: 500 Pieces
-
Walton Rake Tooth Ford Rake Tooth Hay Rake TeethUS$ 0.5 - 1.2MOQ: 500 Pieces
GOODS DESCRIPTION
Performance features:
1.Total steel welded structure and stress elimination by vibration,High mechanical strength and good
rigidity;
2.Hydraulic top-drive , stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability;
3.Mechanical stop and steel torsion bar to maintain synchronization and high precision;

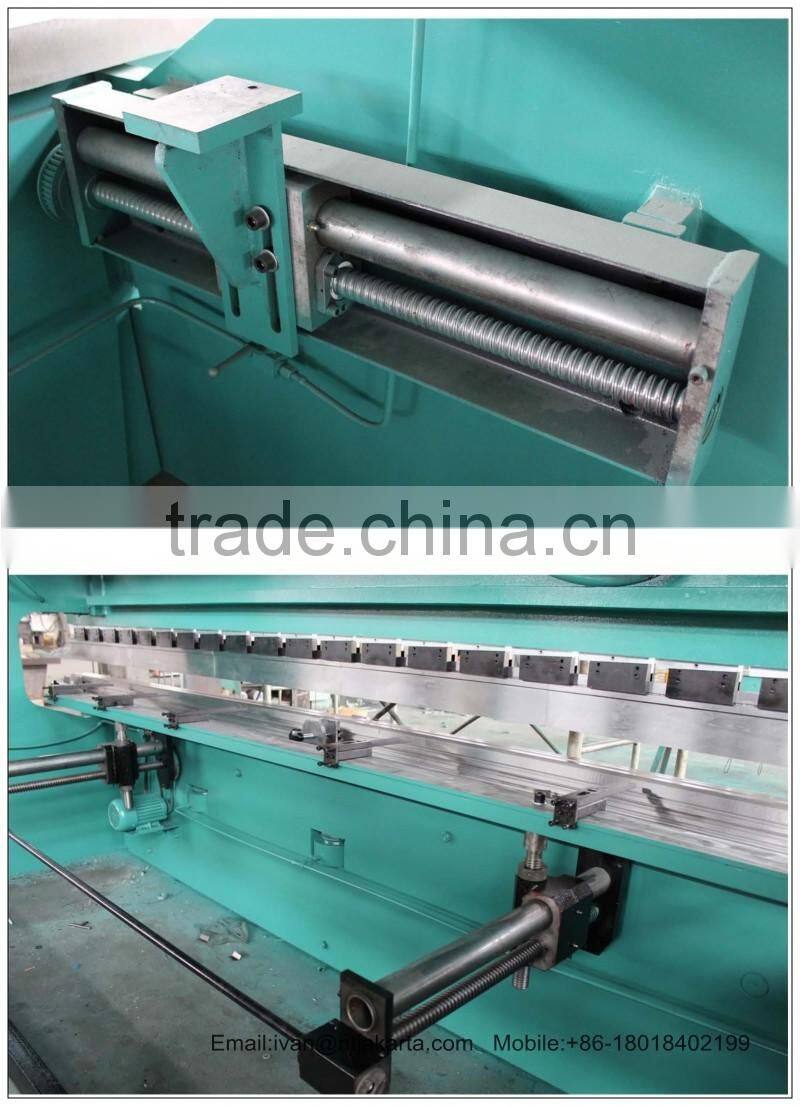

4.The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the
adjustment is displayed by digital meters;
5.Deflection compensation device is provided for the upper die and or for the lower die if the operation
pressure is 250T or above;
6.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
TECHNICAL PARAMETERS WC67Y Hydraulic press brake ,Bending machine
Specification | Nominal Pressure (KN) | Length of working table (mm) | The Depth of throat (mm) | Ram Stroke (mm) | Open Height (mm) | Motor Power (kw) |
WC67Y-63/2500 | 630 | 2500 | 250 | 100 | 360 | 5.5 |
WC67Y-63/3200 | 630 | 3200 | 250 | 100 | 360 | 7.5 |
WC67Y-80/3200 | 800 | 3200 | 320 | 120 | 370 | 7.5 |
WC67Y-100/3200 | 1000 | 3200 | 320 | 120 | 370 | 7.5 |
WC67Y-100/4000 | 1000 | 4000 | 320 | 120 | 370 | 7.5 |
WC67Y-160/3200 | 1600 | 3200 | 320 | 200 | 470 | 11 |
WC67Y-160/4000 | 1600 | 4000 | 200 | 200 | 470 | 11 |
WC67Y-160/5000 | 1600 | 5000 | 200 | 200 | 470 | 11 |
WC67Y-160/6000 | 1600 | 6000 | 200 | 210 | 520 | 11 |
WC67Y-200/3200 | 2000 | 3200 | 250 | 200 | 520 | 15 |
WC67Y-200/4000 | 2000 | 4000 | 250 | 200 | 520 | 15 |
WC67Y-200/6000 | 2000 | 6000 | 250 | 200 | 520 | 15 |
WC67Y-250/3200 | 2500 | 3200 | 250 | 250 | 560 | 18.5 |
WC67Y-250/4000 | 2500 | 4000 | 250 | 250 | 560 | 18.5 |
WC67Y-320/4200 | 3200 | 4200 | 400 | 250 | 560 | 2*15 |
WC67Y-500T/8000 | 5000 | 8000 | 6200 | 600 | 400 | 45 |

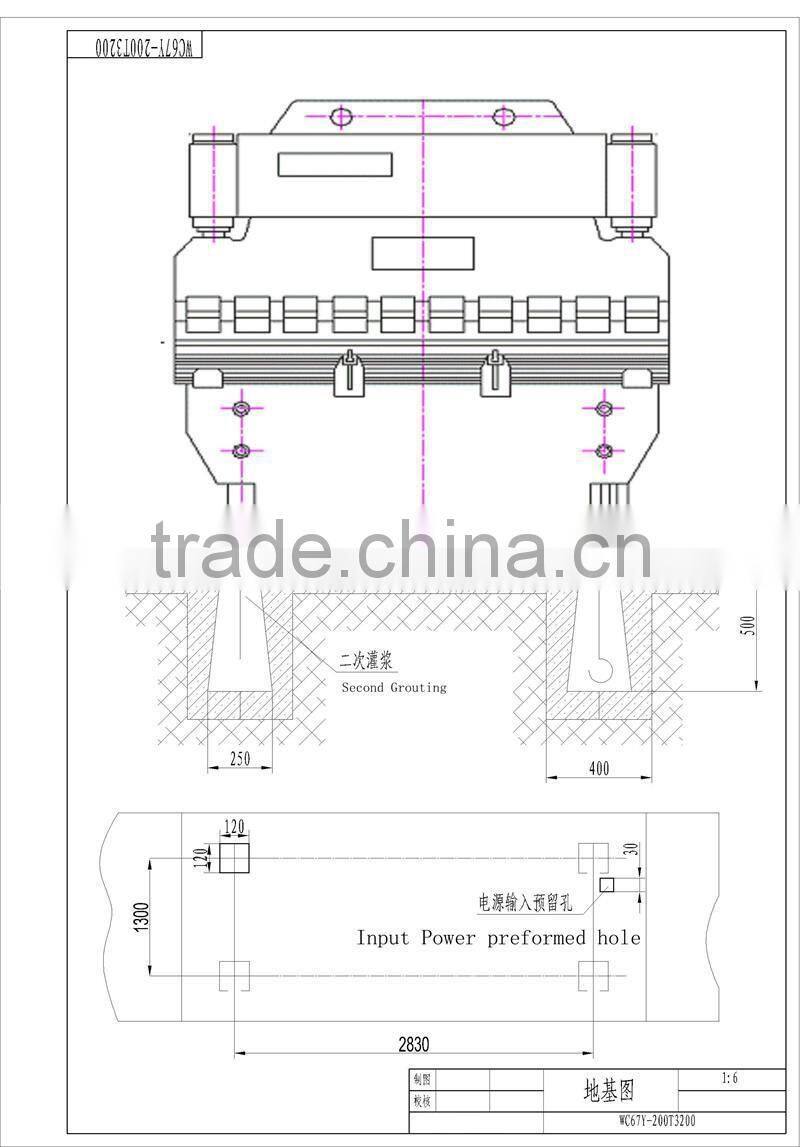

FOUDATION DRAWINGS
OUR OUTSTANDING ACHIEVEMENT

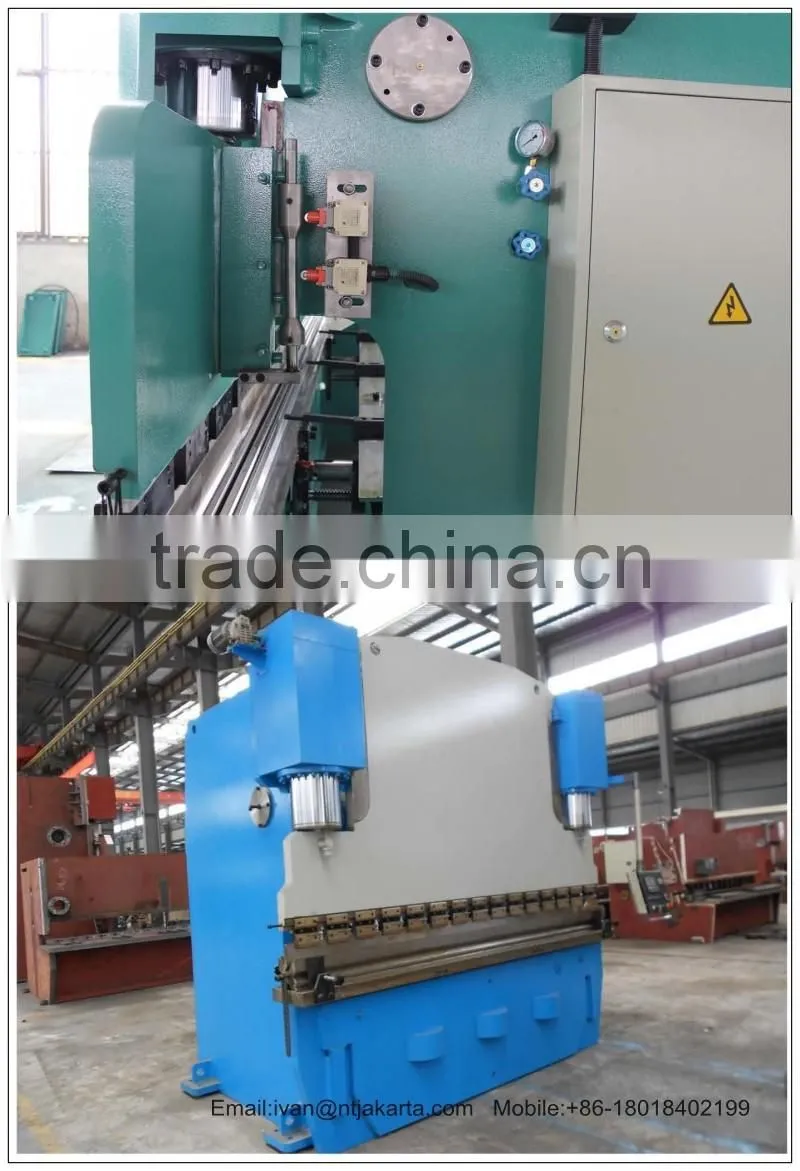

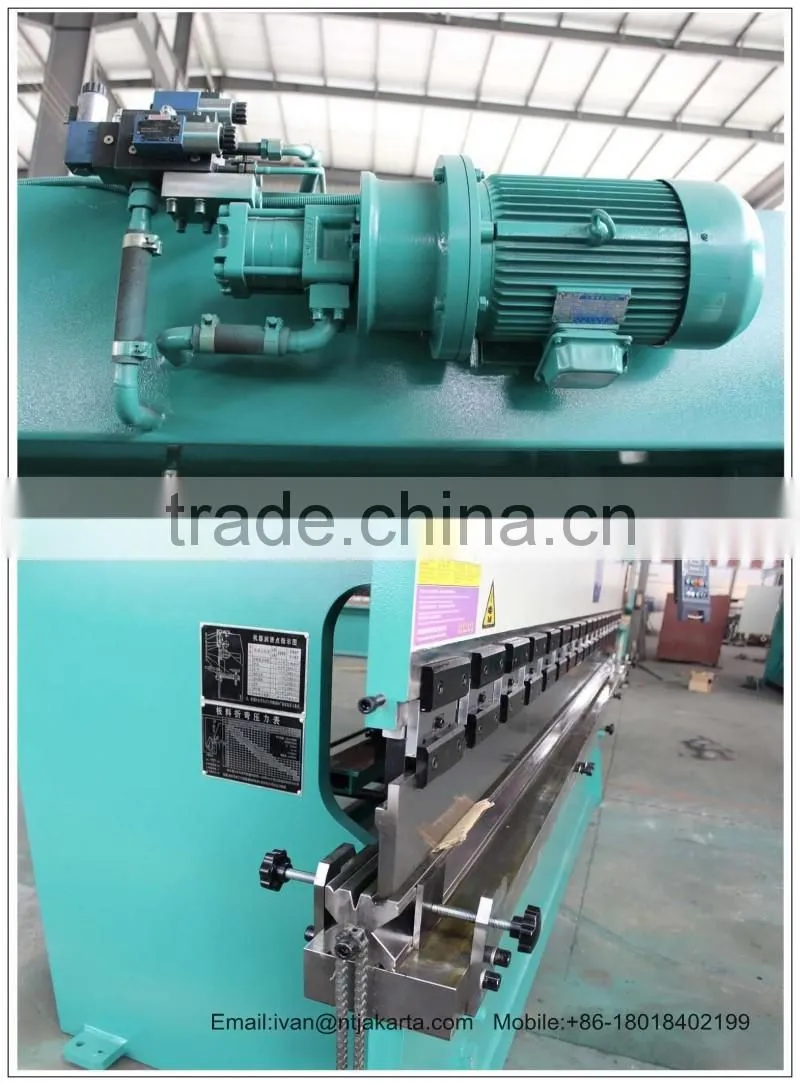

MORE DETAILS

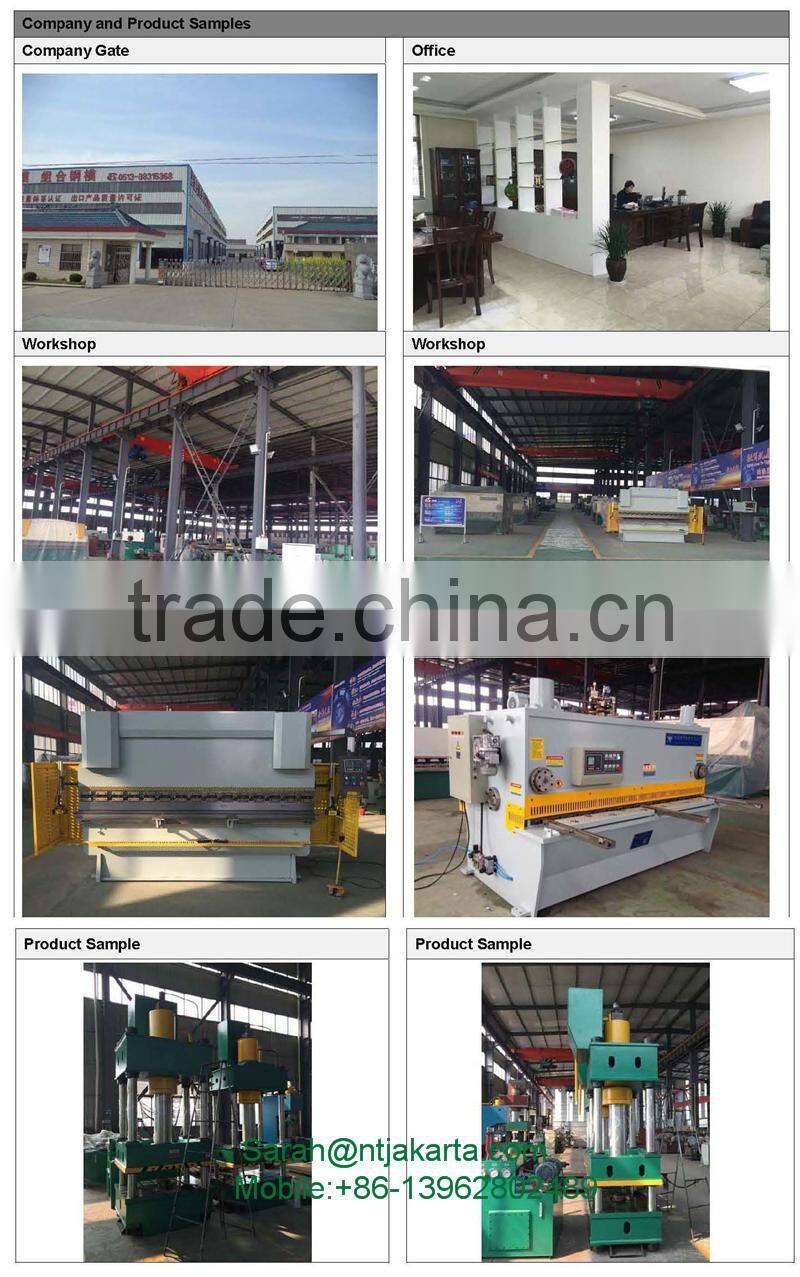

OUR COMPANY
PACKAGING
SHIPPING
PAYMENT TERMS
CONTACT INFORMATION
Our service
1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all JKDmachines. We dispatch technician to customer's
factory for installation and preoperation of machines. ( Customers only need to pay the airfare
and hotel )
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well,
you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same
as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's
materials for test. After making sure machine is the best performance, then make shipments.
FAQ
How to get an accurate quotation from us ?
1.Tell us metal thickness.
2.Tell us metal width.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,
it is small problem.we can solve it through email and video.
What policy for broken parts?
Within one year,we offer free parts. If beyond one year,you need to buy by factory cost.
