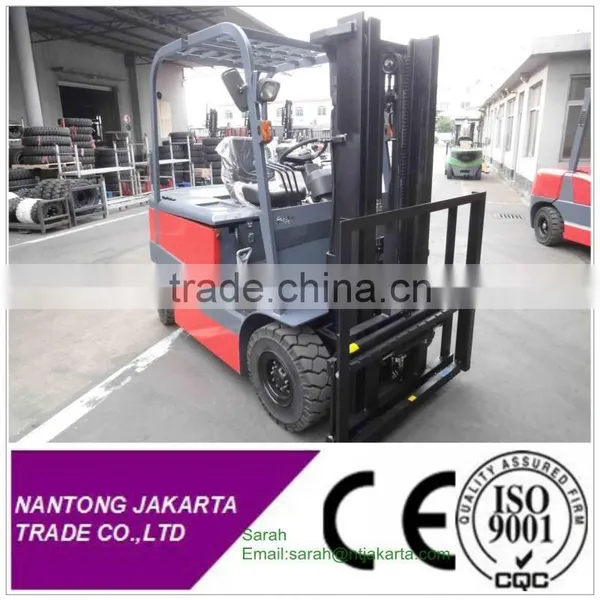

China 2.0 Ton Electric Forklift Truck CE Approved With Battery AC Motor

China 2.0 Ton Electric Forklift Truck CE Approved With Battery AC Motor thumbnail-1
China 2.0 Ton Electric Forklift Truck CE Approved With Battery AC Motor photo-1
US$ 13,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name OEM
Model Number FB20
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2000kg
Max. Lifting Height 3000mm
Min. Lifting Height 160mm
Fork Length 1070mm
Fork Width 122mm
Overall Dimensions 2375*1150*2110mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

 Goods description of DC electric forklift FB20

Forklift truck is widely used in station, port, airport, factory, warehouse or others production departments.It is the high efficient equipment for loading and unloading, stacking, Short-Distance transport.



Features:



1). Streamlined exterior and beautiful appearance

2). The wide-view mast improves the efficiency and safety of operations

3). Scientific ergonomic designs ensure the comfort of driving

4). Reliable separate excitation motor

5). SME/ZAPI/Curtis/GE electronic controller

6). High-capacity batteryChina 2.0 ton electric forklift truck CE approved with battery AC motorChina 2.0 ton electric forklift truck CE approved with battery AC motor

Standard specifications for 2.0ton electric forklift



Model   FB20
Load Capactity kg 2000
Load Center mm 500
Motor Type   Battery
Driving Type   Sit Down Driving Type
Tire Type   Pneumatic
Max. Lift Height mm 3000
Free Lift Height mm 160
Fork Size (L×W×T) mm 1070×122×40
Mast Tilt Angle (Fwd/Bwd) deg 6/12
Front Overhang mm 460
Overall Dimensions Length to Fork Face mm 2375
Width mm 1150
Mast Lowered Height mm 2010
Mast Extended Height mm 3990
Overhead Guard Height mm 2110
Min. Turning Radius mm 2080
Min. Right Angle Aisle Width 1000×1200 crossways mm 3810
800×1200 lengthways mm 3940
Ground Clearance mm 130
Lifting Speed Unladed mm/s 360
Laded mm/s 220
Traveling Speed Unladed km/h 12.5
Laded km/h 11
Max. Gradeability % 15
Deadweight (including battery) kg 4130
Tire Front/Rear pcs 2/2
Size Front   7.00-12-12 PR
Rear   18×7-8-14 PR
Wheelbase mm 1500
Tread Front mm 960
Rear mm 950
Battery Voltage/Capacity V/Ah 48/600
Electric Motor Drive Motor kw 7
Lifting Motor kw 10
Electronic Controller   DC Controller (SME / ZAPI / Curtis / GE)
Working Pressure Mpa 17.5







  More details

China 2.0 ton electric forklift truck CE approved with battery AC motor

China 2.0 ton electric forklift truck CE approved with battery AC motorChina 2.0 ton electric forklift truck CE approved with battery AC motorChina 2.0 ton electric forklift truck CE approved with battery AC motor
