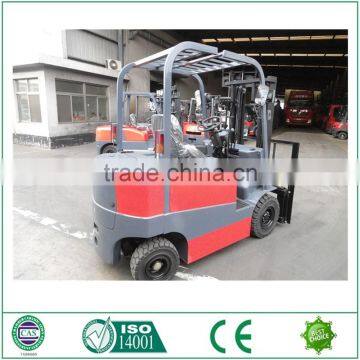

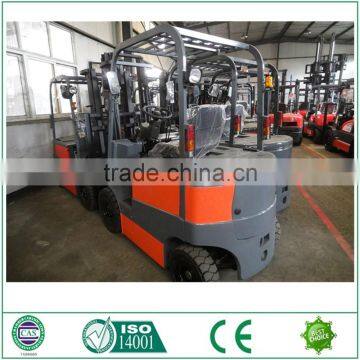

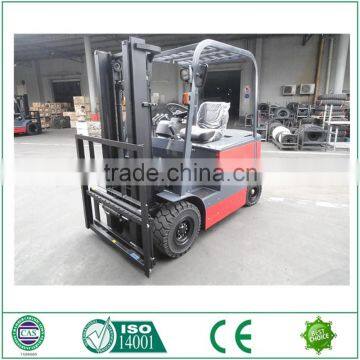

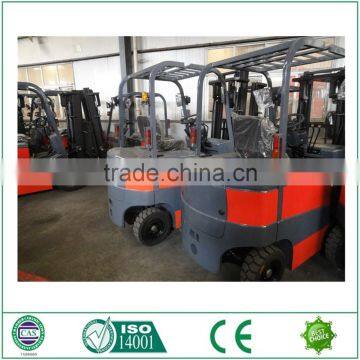

Goods description of DC electric forklift FB30
Forklift truck is widely used in station, port, airport, factory, warehouse or others production departments.It is the high efficient equipment for loading and unloading, stacking, Short-Distance transport.
Features:
1). Streamlined exterior and beautiful appearance
2). The wide-view mast improves the efficiency and safety of operations
3). Scientific ergonomic designs ensure the comfort of driving
4). Reliable separate excitation motor
5). SME/ZAPI/Curtis/GE electronic controller
6). High-capacity battery
Standard specifications for 3.0ton electric forklift
Model | FB30 | ||||
Features | Power type |
| Battery | ||
Rated Load | kg | 3000 | |||
Load Center | mm | 500 | |||
Lifting Height | mm | 3000 | |||
Free Lifting Height | mm | 145 | |||
Fork Size | L*W*T | mm | 1070×125×45 | ||
Mast Tilt Radius | Front/Rear | . | 6/12 | ||
Minimum Turning Radius | mm | 2245 | |||
Minimum Stacking Right Angle Channel Width | mm | 4420 | |||
Minimum Right Angle Channel Width | mm | 2030 | |||
Minimum Ground Clearance | mm | 120 | |||
Overhead Guard Height | mm | 2170 | |||
Height From Seat To Overhead Guard | mm | 1005 | |||
Front Overhang | mm | 475 | |||
Performance | Max. Travelling Speed | Full load | km/h | 12.5 | 13.5 |
Max. Lifting Speed | Full load | mm/s | 280 | 320 | |
Max. Climbing Ability | % | 12 | 15 | ||
Dimension | Overall Length | Without Fork | mm | 2511 | |
Overall Width | mm | 1225 | |||
Max. Fork Lifting height (With Load Backrest) | mm | 4264 | |||
Mast Height | mm | 2055 | |||
Power | Tyre | Front | mm | 28×9-15-12PR | |
Rear | mm | 18×7-8-14PR | |||
Wheel Base |
| mm | 1600 | ||
Wheel Tread | Front/Rear | mm | 1000/980 | ||
Curb Weight | Without load | kg | 5050 | ||
Battery | Voltage/Capacity | V/Ah | 80/500 | ||
Motor | Driving | Kw | 10 | 12 | |
Lifting | Kw | 12 | 14 | ||
Controller |
| GE | CURTIS | ||
Control mode |
| DC | AC | ||
Working Pressure | Mpa | 17.5 | |||
