3 Ton Balance Weight Forklift

3 Ton Balance Weight Forklift thumbnail-1
3 Ton Balance Weight Forklift thumbnail-2
3 Ton Balance Weight Forklift thumbnail-3
3 Ton Balance Weight Forklift thumbnail-4
3 Ton Balance Weight Forklift thumbnail-5
3 Ton Balance Weight Forklift photo-1
3 Ton Balance Weight Forklift photo-2

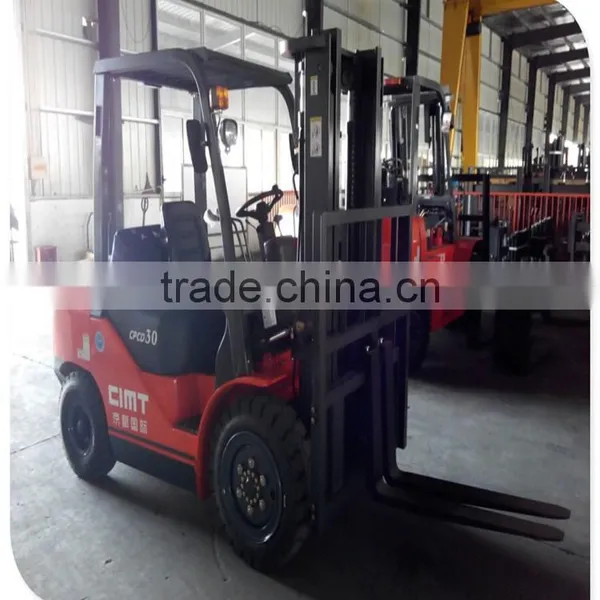

3 Ton Balance Weight Forklift photo-3

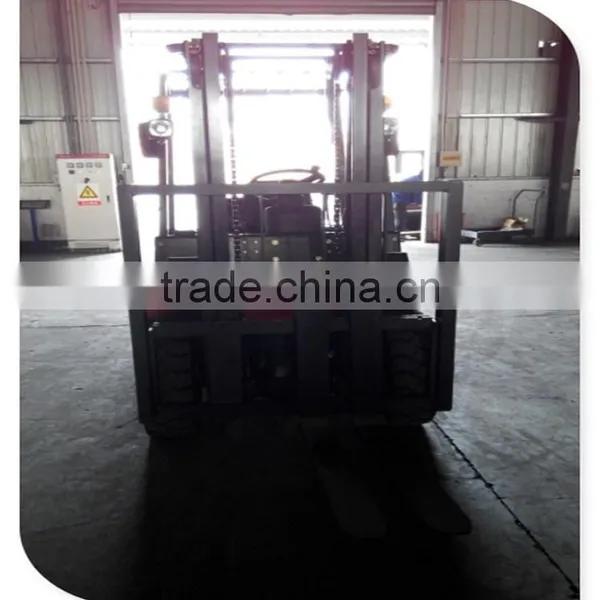

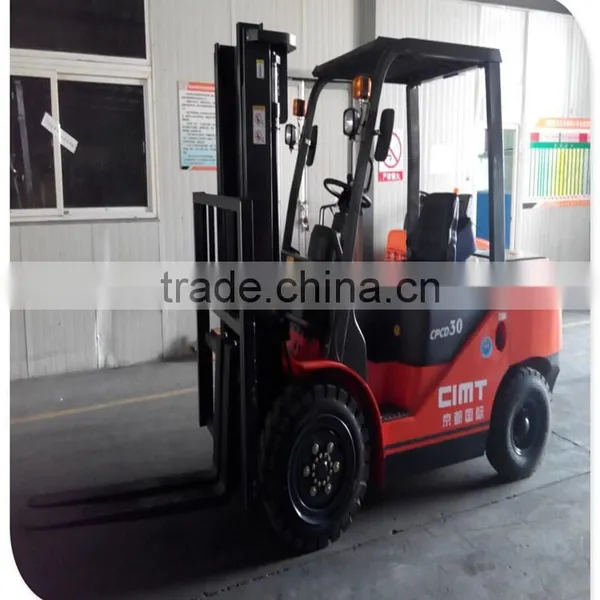

3 Ton Balance Weight Forklift photo-4

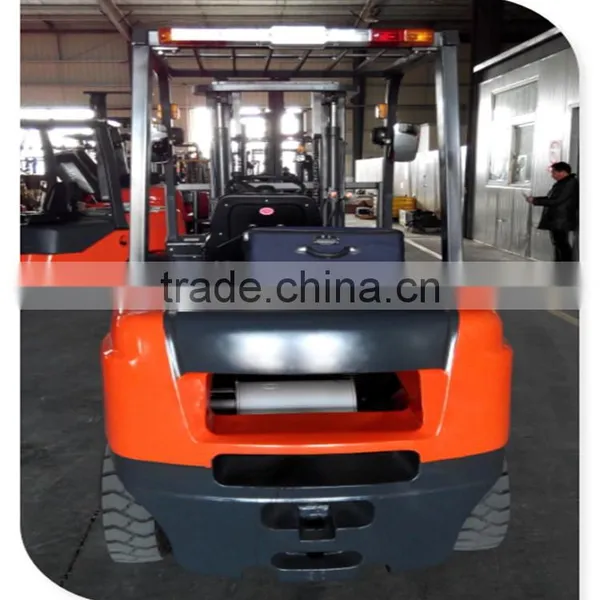

3 Ton Balance Weight Forklift photo-5
US$ 100 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Nantong Jakarta
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Nantong Jakarta
Model Number CPCD30
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 3000kg
Max. Lifting Height 6000mm
Min. Lifting Height 2000mm
Fork Length 1220mm
Fork Width 125mm
Overall Dimensions 3817mmx1230mmx2085mm
Certification ISO90001,ISO14001
After-sales Service Provided Engineers available to service machinery overseas

3 ton balance weight forklift



Export Market Distribution







Market

Revenue(Previous Year)

Total Revenue (%)

South America

confidential



0.23

Eastern Europe

0.96

Southeast Asia

1.51

Africa

1.19

Oceania

0.27

Mid East

1.83

Eastern Asia

0.03

Southern Europe

0.06

South Asia

0.3

Domestic Market

93.62







Testing Machinery



 (Acceptable Condition)



Machine Name

Brand & Model No.

Quantity

Number of Year(s) Used

Tubular Dynamometer

LTZ-50

1

4

Inside Diameter Dial Indicator

CL & 0-5mm

4

2

Outside Micrometer

SHLJ & 75-100mm

6

2

Multimeter

YT & VC3267

1

2.5

Vernier Calipers

LR & LRY020103

10

1.2

Infrared Radiation Thermometer

Center350

1

4

Analog Force Gauge

LG & NK-300

1

3

Tachometer

ICTOR & 6234P

1

2

Sound Lever Meter

HS5633

1

0.1









Forklift Specification



Model - CPC(D)30
Rated load lifting capacity Kg 3000
Load center distance mm 500
Lifting height mm 3000
Maximum height at work mm 4260
Mast tilt angle(Forwards/Backwards) 6/12
Hold under mast(min) mm
Turning radius(min) mm 2480
Travelling speed (max) Unloaded Km/h 20
Loaded 19.5
Lifting speed (max) Unloaded mm/s 470
Loaded 520
Lowering speeds(max) mm/s ≤600
Gradeability under full load (max) % 15
Dimensions Length Overall length mm 3830
Length (without fork) 2760
Width 1230
Height Closed mast height 2075
Overhead guard height 2085
Wheelbase mm 1700
Wheel tread 1600 mm 1000
Rear 970
Tire Front - 28×9-15-12PR
Rear - 6.50-10-10PR
Engine Model - Xinchai 490BPG
Displacement L 2.67
Rated power Kw 40
Revolution at rated power Rpm 2650
Maximum torque Nm 160
Revolution at maximum torque rpm 1800
Fuel tank capacity L 58
Fork size(LxWxT) mm 1070×125×45
Total weight Kg 4250

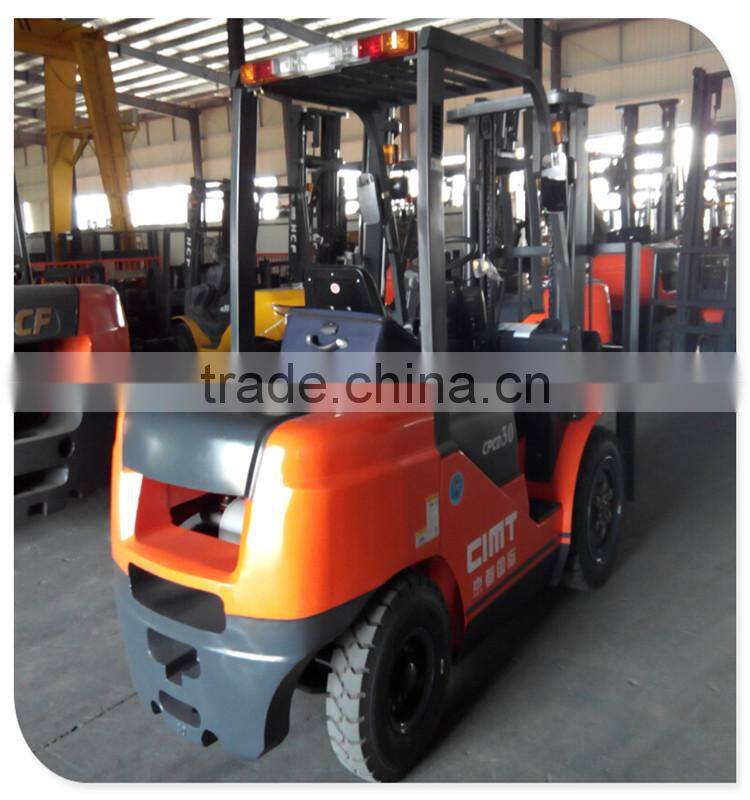

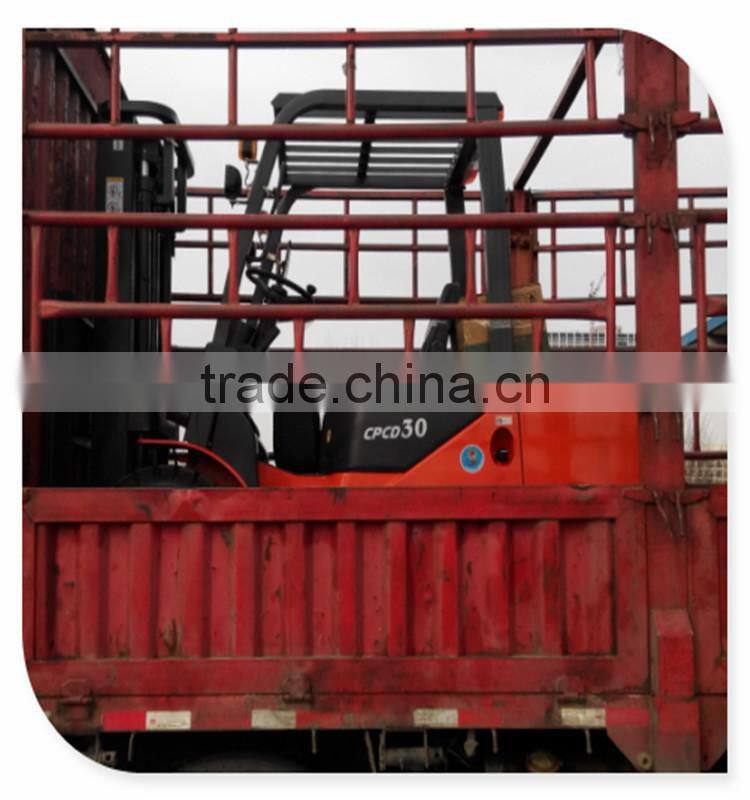

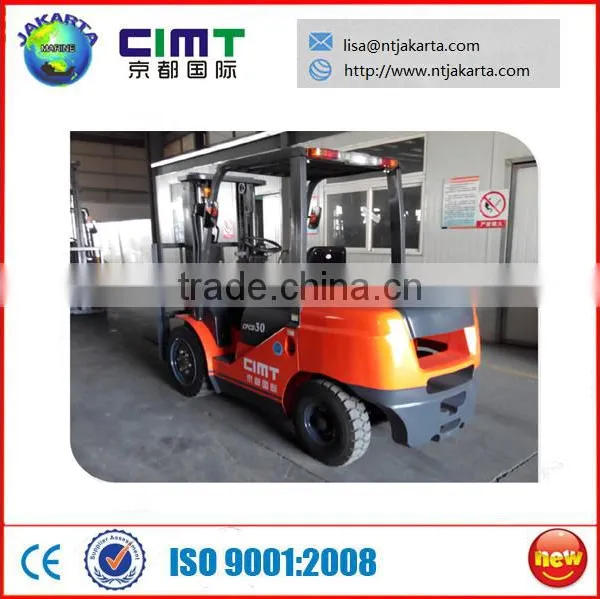

Product picture

3 ton balance weight forklift3 ton balance weight forklift3 ton balance weight forklift

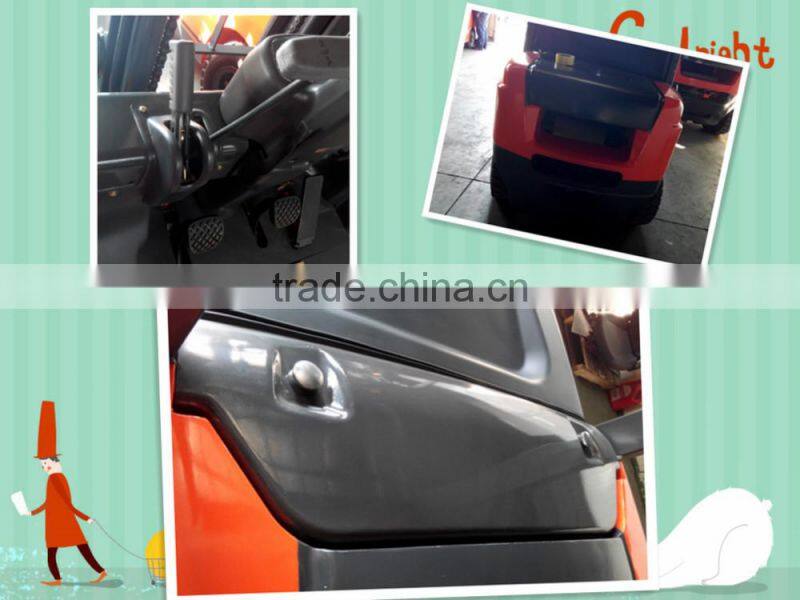

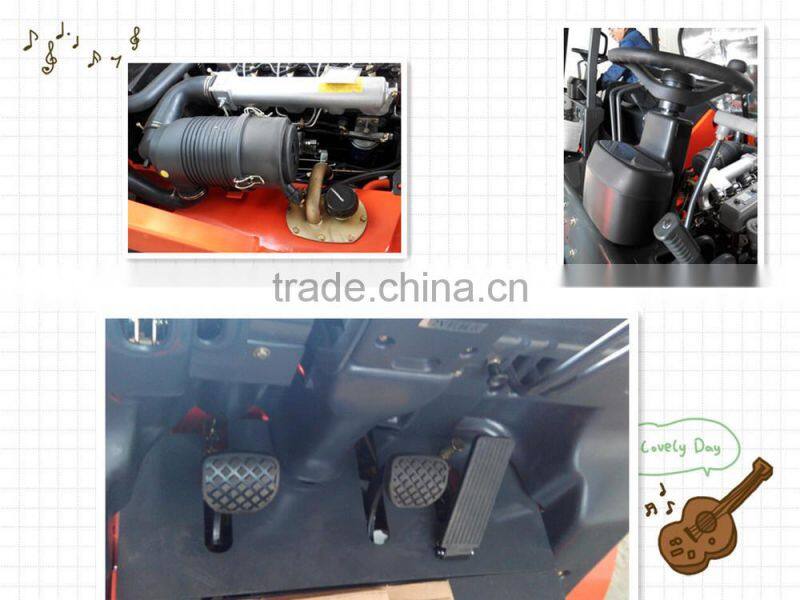

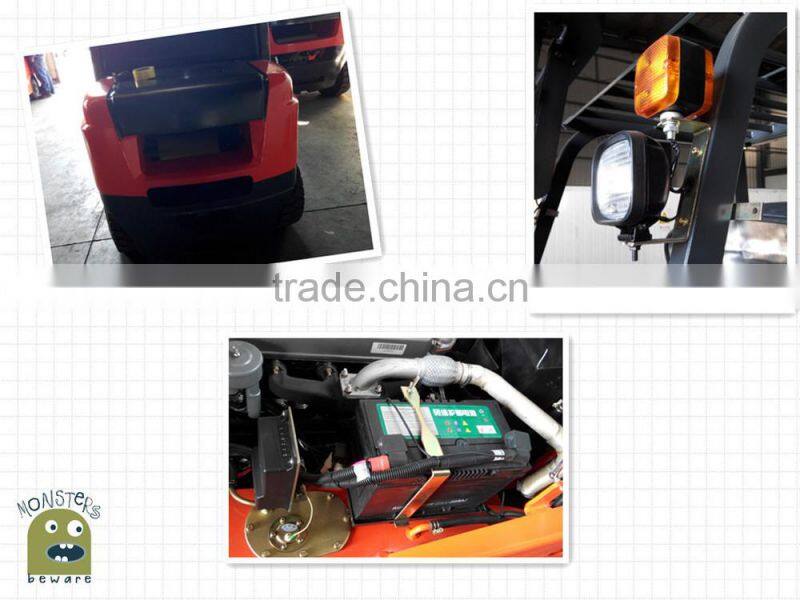

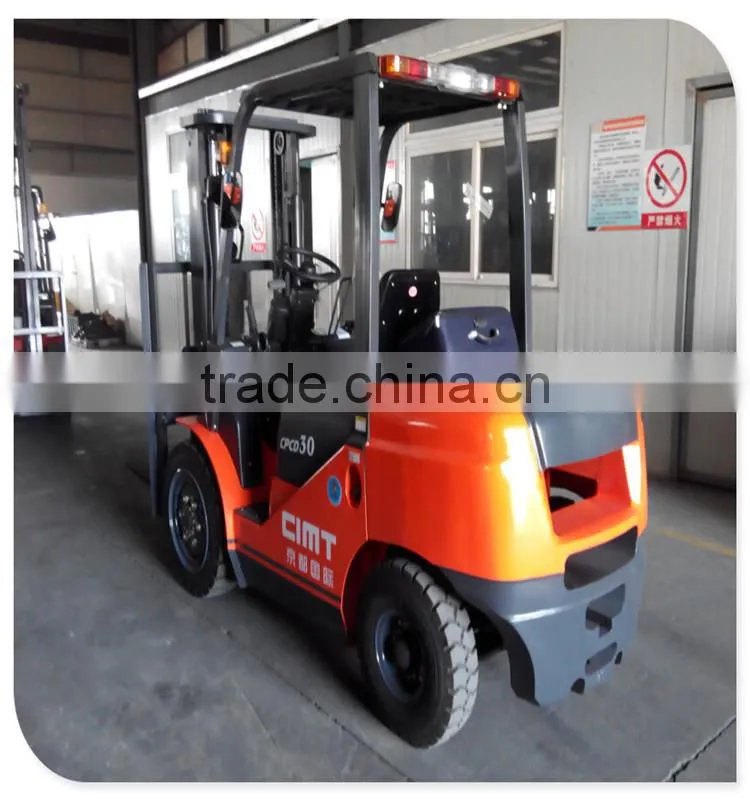

Photo details

3 ton balance weight forklift3 ton balance weight forklift3 ton balance weight forklift

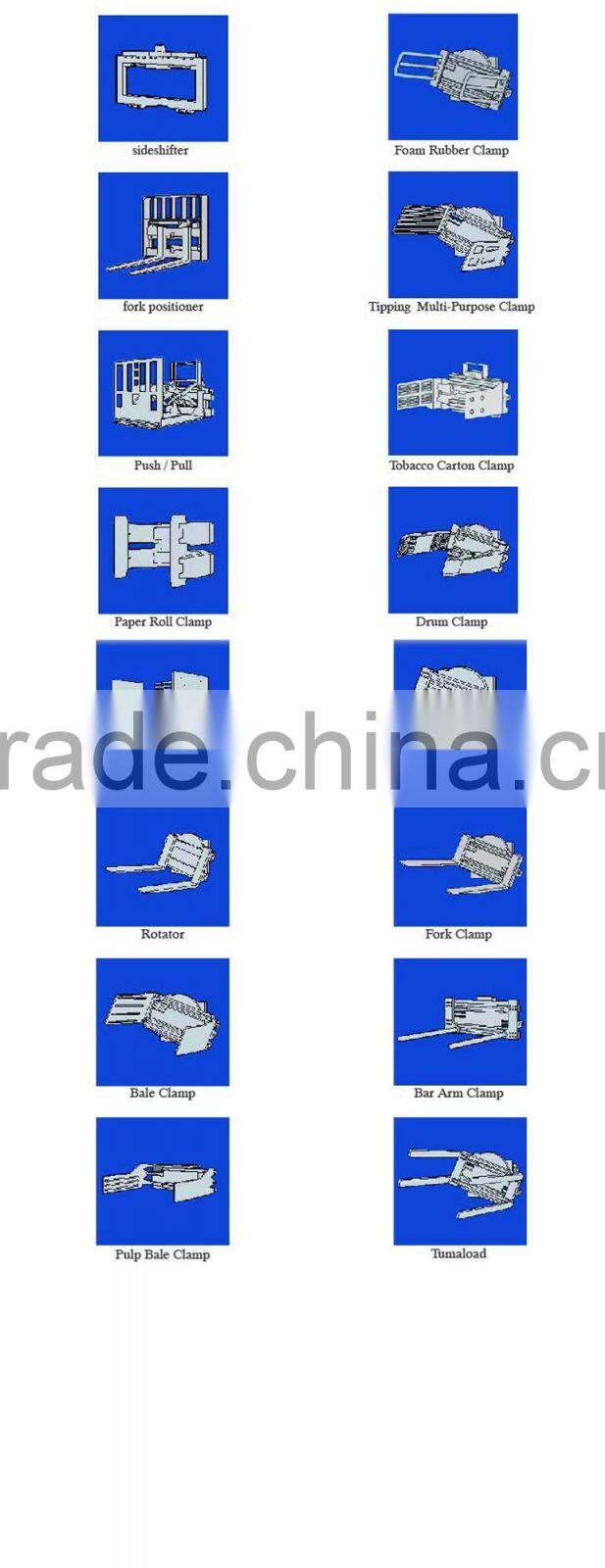

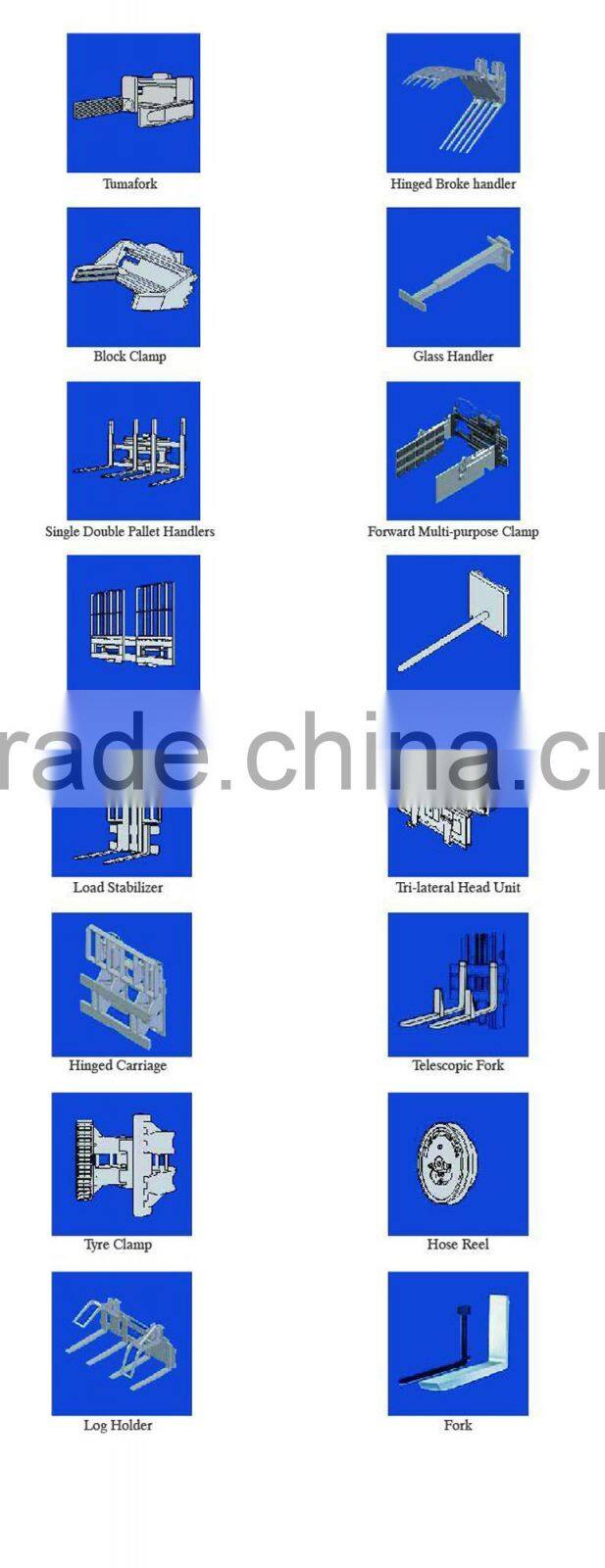

Attachments Contents

3 ton balance weight forklift3 ton balance weight forklift

 Factory photos



3 ton balance weight forklift



 3 ton balance weight forklift3 ton balance weight forklift3 ton balance weight forklift
