4 Ton Balance Weight Forklift

4 Ton Balance Weight Forklift thumbnail-1
4 Ton Balance Weight Forklift thumbnail-2
4 Ton Balance Weight Forklift thumbnail-3
4 Ton Balance Weight Forklift thumbnail-4
4 Ton Balance Weight Forklift thumbnail-5
4 Ton Balance Weight Forklift thumbnail-6
4 Ton Balance Weight Forklift photo-1
4 Ton Balance Weight Forklift photo-2
4 Ton Balance Weight Forklift photo-3
4 Ton Balance Weight Forklift photo-4
4 Ton Balance Weight Forklift photo-5
4 Ton Balance Weight Forklift photo-6
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Nantong Jakarta
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Nantong Jakarta
Model Number CPCD40
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 4000kg
Max. Lifting Height 4230mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 150mm
Overall Dimensions 4170*1480
Certification ISO90001,ISO14001
After-sales Service Provided Engineers available to service machinery overseas

4 ton balance weight forklift



Export Market Distribution







Market

Revenue(Previous Year)

Total Revenue (%)

South America

confidential



0.23

Eastern Europe

0.96

Southeast Asia

1.51

Africa

1.19

Oceania

0.27

Mid East

1.83

Eastern Asia

0.03

Southern Europe

0.06

South Asia

0.3

Domestic Market

93.62











Model

-

CPCD40

Rated load lifting capacity

Kg

4000

Load center distance

mm

500

Lifting height

mm

3000

Maximum height at work

mm

4230

 Mast tilt angle(Forwards/Backwards)

6/12

 Hold under mast(min)

mm

170

 Turning radius(min)

mm

2880

Travelling speed (max)

Unloaded

Km/h

18

Loaded

19

Lifting speed (max)

Unloaded

mm/s

410

Loaded

430

Lowering speeds(max)

mm/s

≤600

Gradeability under full load (max)

%

20

Dimensions

Length

Overall length

mm

4225

Length (without fork)

3150

Width

1480

Height

Closed mast height

2245

Overhead guard height

2350

Wheelbase

mm

2050

Wheel tread

Front

mm

1180

Rear

1190

Tire

Front

-

300-15-18PR

Rear

-

7.00-12-21PR

Engine

Model

-

Weichai 4RMG25

Displacement

L



Rated power

Kw

55

Revolution at rated power

Rpm

2200

Maximum torque

Nm

275

Revolution at maximum torque

rpm

1400

 Fuel tank capacity

L

95

Fork size(LxWxT)

mm

1070X150X50

Total weight

Kg

6300

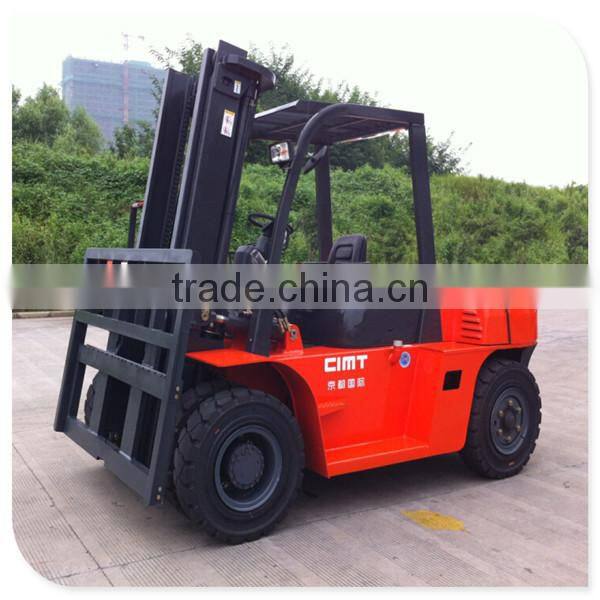

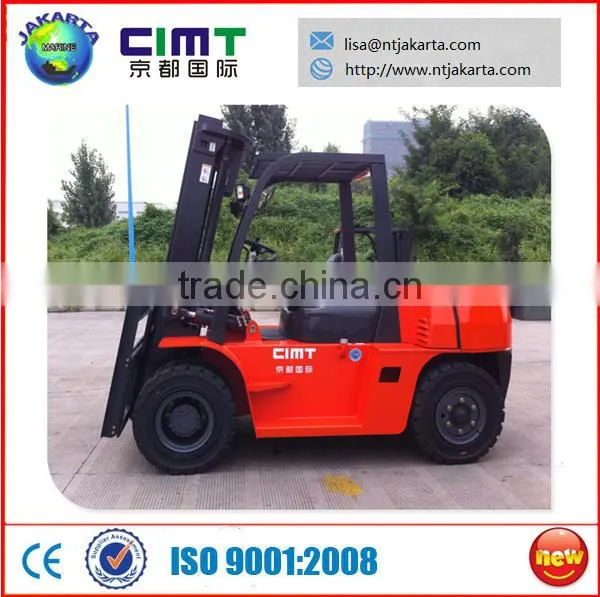

Product picture

4 ton balance weight forklift4 ton balance weight forklift4 ton balance weight forklift

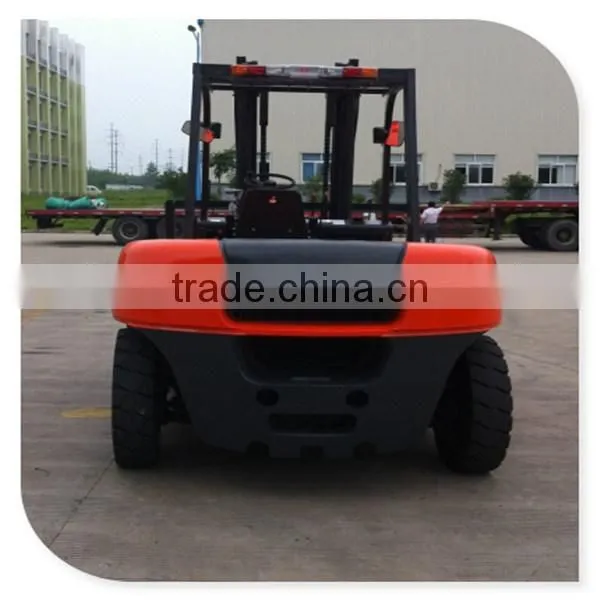

Photo details

4 ton balance weight forklift

4 ton balance weight forklift



Photo accessories

4 ton balance weight forklift4 ton balance weight forklift





Attachments Conents

4 ton balance weight forklift4 ton balance weight forklift



Delivery photos



4 ton balance weight forklift4 ton balance weight forklift

Factory photos

4 ton balance weight forklift4 ton balance weight forklift4 ton balance weight forklift
