Solar Water Pumping Sytem for Desert Control and Pasture Animal Husbandry

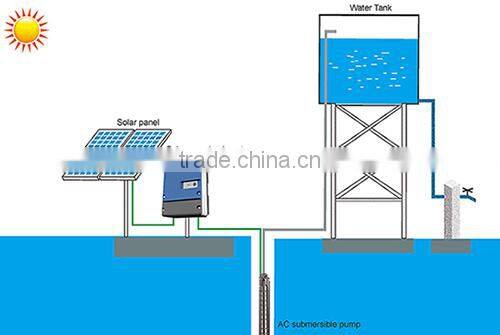

1. Solar Water Pumping System Introduction

solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panel to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.

2.Solar pump application

3. solar pump system feature

• Reliable solution provider in non-electricuty and water deficient area.
• Wide application with all kinds of PV modules and three-phase AC pumps
• IP65 for outdoors application
• Max. operation temperature 60℃
• GPRS remote monitoring for real time operation status and control on/off
• Excellent performance during cloudy weather with 5% more water output compared to competitors
• ROI is only less than 2 years compared to diesel generator
• Full automatic unattended operation with perfect protection functions for long lifespan 25 years
• 3 years warranty time for complete system, 10 years for PV modules

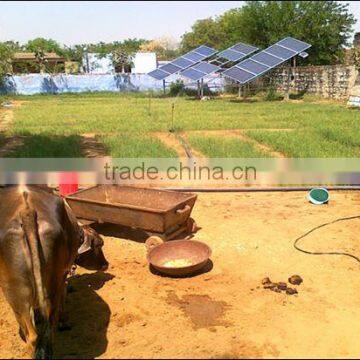

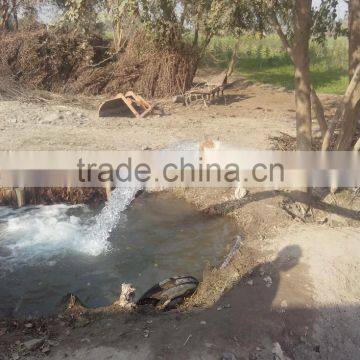

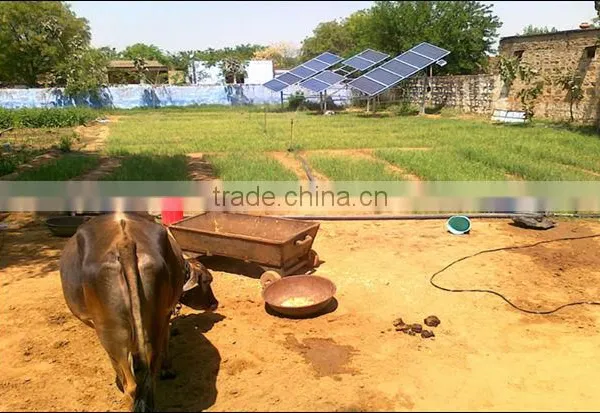

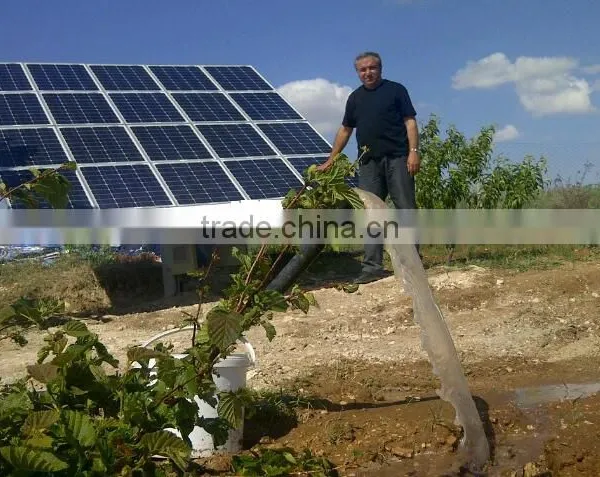

4.Project Information

5. Solar panels

Polycrystalline 250w(Vmp=30.6 V, Isc=8A) solar panels are used in system configuration

System configuration:

1 string, each string 8pcs 250w solar panels. Total 8 pcs, 2KW solar panels.

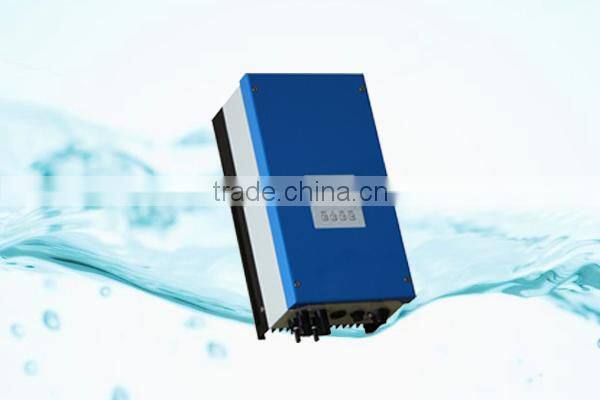

6. Solar pumping inverter

 7. Pump Specifications

We choose pump according tp project head and water requirement.

• Power capacity: 1.5kw                       Rated Head: 145m                                Rated flow: 1m3/h
• Highly efficent 3-phase AC motor      Frequency 50HZ(60HZ optional)          stainless steel: 304
• No electronics in the motor                Efficiency max: 92%             Motor speed 1,150~2,850rpm
• Input voltage range 220V~240Vac    Insulation class F                            Protection degree IP68

 8. comany introduction

Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.

Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,

Jntech has come a long way in the past 10years.

Numbers of Jntech:

Registered capital: 100 million RMB

Employee: over 200(50% of  R&D and technical engineers)

Total EPC projects: 500MW(grounded/ rooftop)

Residential off-grid system: 30,000 units(over 10MW)

Solar pumping system: over 2000 projects in 15 countries

9. Please contact for any other information.
