7.5kw solar panels system wild mppt range solar water pumping system project in Yemen

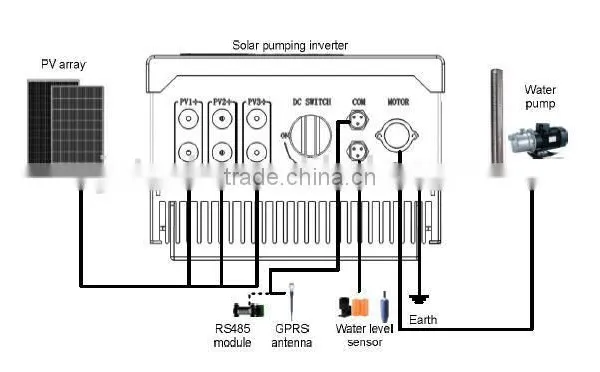

Our solar pumping system consist of four parts:solar panels,solar pumping inverter,three-phase AC pump and water storage device.The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole,river,lake etc. to the storage device.

The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels.It will make the system to maximize efficiency to get the water as much as possible.

The solar pumping system fulfills concept of low carbon,energy conservation,environmental protection to improve the living standard in water-deficient area.

1.System Features:

1). Reliable solution for agricultural irrigation,daily water,desert control in non-electricity and water deficient area.

2). Wild application with all kinds of PV modules amd 3-phase AC pumps.

3). IP65 for outdoors application.

4). Max. operation temperature 60

5). GPRS remote monitoring for real time operation status and control on/off

6). Excellent performance during cloudy weather with 5% more water output compared to competitors

7). ROI is only less than 2 years compared to diesel generator

8). Full automatic unattended operation with perfect protection functions for long lifespan 25 years

9). 3 years warranty for complete system, 10 years for PV modules

2.System Application:

3.Solar Panels:

Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are used in system configuration.

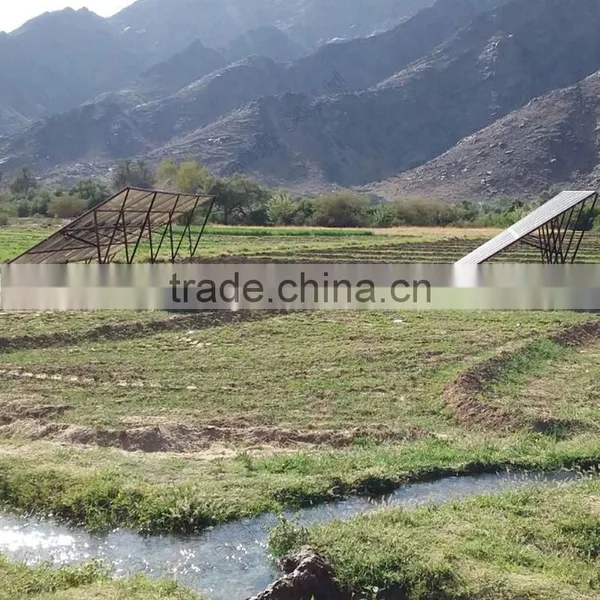

4.Solar Mounting Structure:

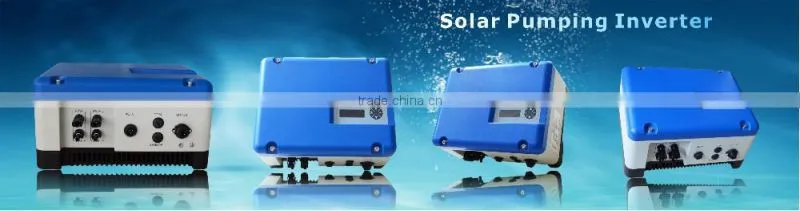

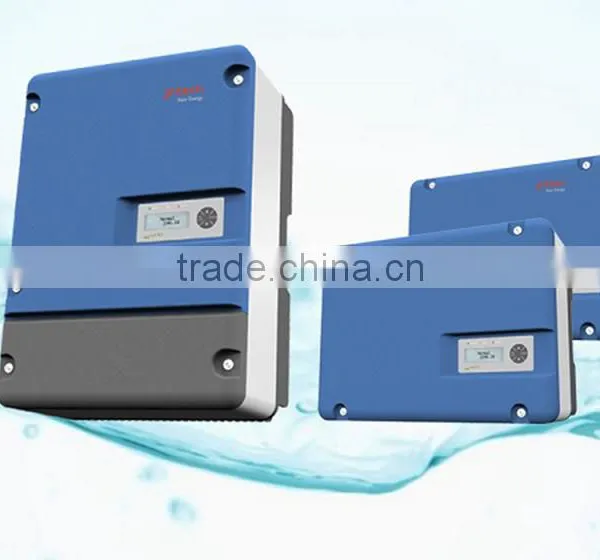

5.Solar Pumping Inverter(new model):

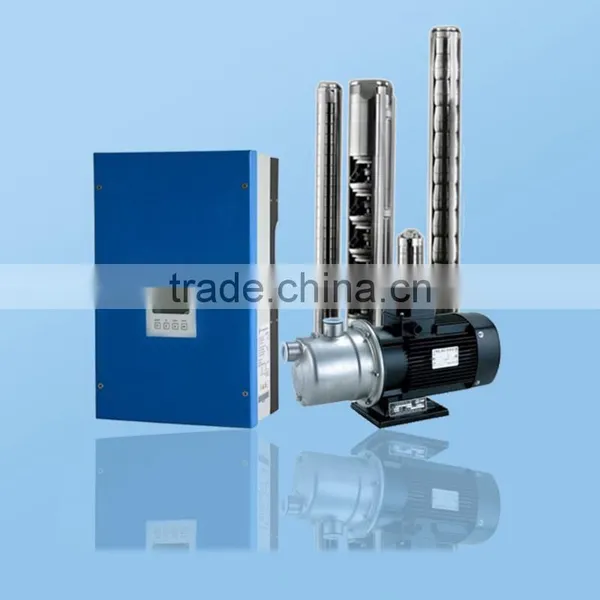

6. AC water pump:

We choose pump according to project head and water requirement.

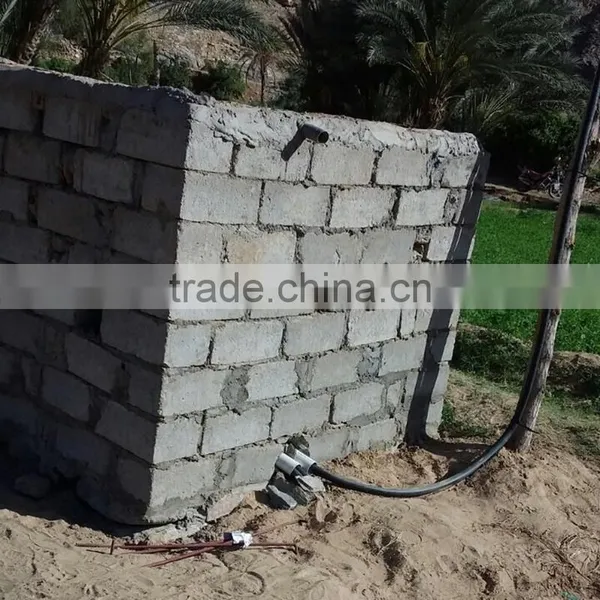

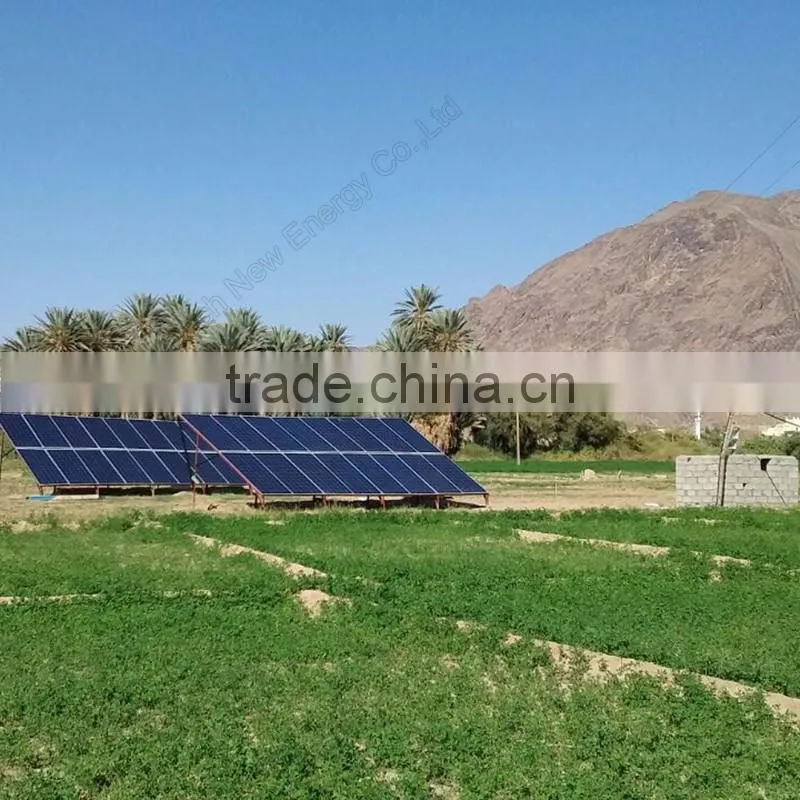

7. On-site project reference:

Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.

Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,

Jntech has come a long way in the past 10years.

Numbers of Jntech:

Registered capital: 100 million RMB

Employee: over 200(50% of  R&D and technical engineers)

Total EPC projects: 1000MW(grounded/ rooftop)

Residential off-grid system: 40,000 units(over 20MW)

Solar pumping system: over 2200 projects in 30 countries
