2.2Kw Inverter for Submersible Pump; Well pump; 3-phase Solar Pump Inverter with MPPT;Off Grid / Grid Tie Systems;Domestic

1. Simple Introduction Of JNTECH Solar Pumping System for Irrigation and Home Water Supply:

 System consists of 4 parts: solar PV modules, PV pump inverter, Three phase AC pump and water storage device.

The pump inverter converts DC power produced by PV module to AC power required by the pump. A microprocessor continuously  monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

2. System features:

1. Energy conservation,environmental protection and low carbon;

2. Wide application with all kinds of three-phase AC pumps;

3. Low system maintenance cost compared with traditional AC pump system;

4. Automatic/manual operation mode;

5. Built-in data module, can check system fault and historical operation information;

6. Different remote communication function which can monitor and control operation state remotely;

7. IP 65 for outdoors application for different applicationenvironment under low installation cost;

8. Max. operation temperature 60 degrees centigrade;

9. Complete system protection function and long lifespan;

10. Matching all kinds of solar panels with high configuration redundancy;

11. Providing different solution,such us anti-theft,GPRS and utility power as  input option etc.

3. Project Information

System configuration for the above solar submersible system:

2 strings, each string 6pcs 250W solar panels. Total 12pcs, 3kW solar panels.

Case one:

System Solution: 2.2KW Solar Pumping System

Solar Pumping Inverter: JNP2K2L

Applicaton: Livestock Drinking Water & Home water Supply

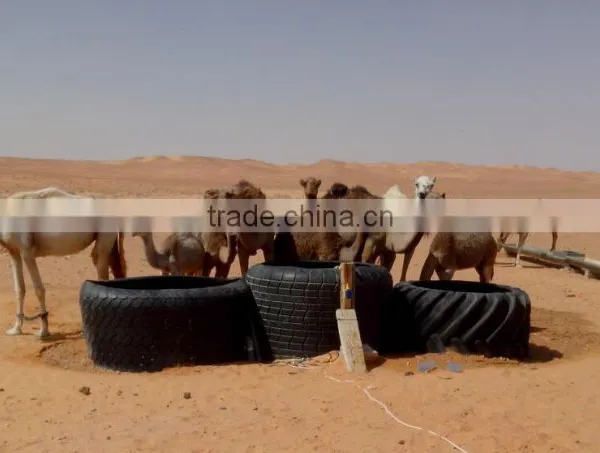

Location: Algeria

Head: 190 m

Rated Daily water output: 8 m3/Day

Case Two:

System Solution: JNP2K2L

Application: Agriculture irrigation

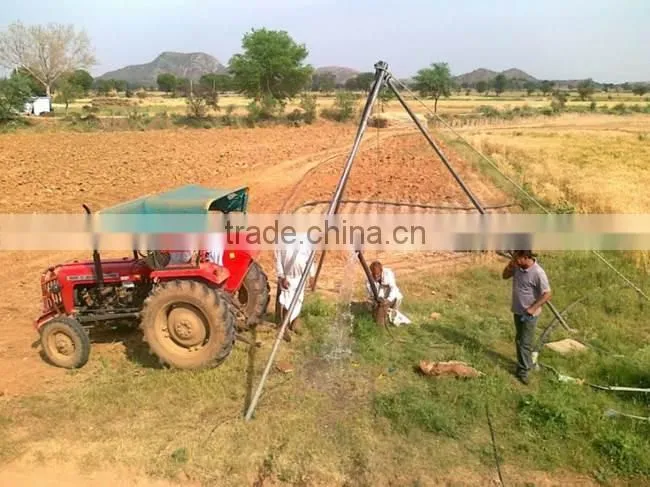

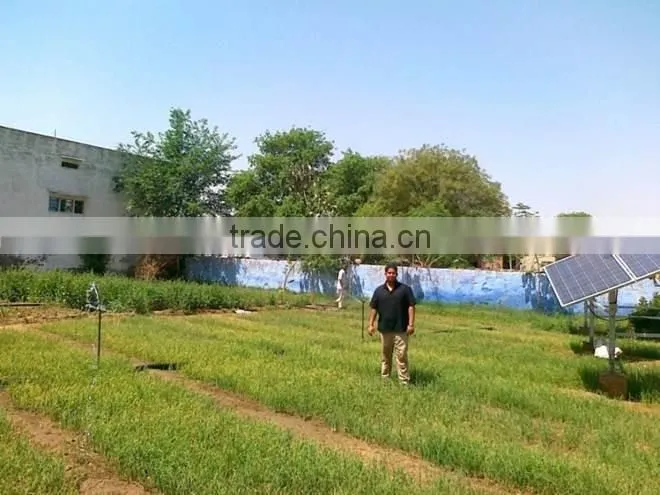

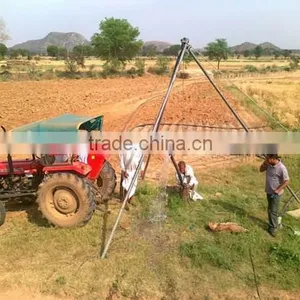

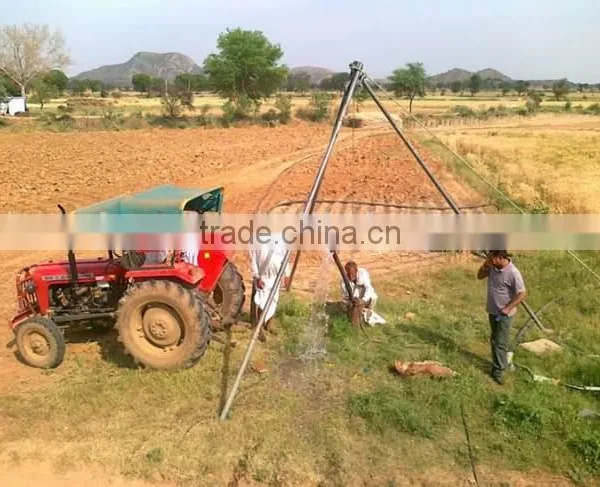

Location: Rajasthan, India

4. Solar pump system Application

5, Solar panels

Polycrystalline 265W (Vmp=30.6V,Isc=9.2A) solar panels are used in system configuration

6, Solar pumping inverter

• Power capacity: 2.2 kw                                  • Rated Head: 202m                                     • Rated flow: 8m3/day
• Highly efficient 3-phase AC motor              • Frequency 50Hz (60Hz optional)             • stainless steel: AISI304
• No electronics in the motor                         • Efficiency max. 92%                               • Motor speed: 1,150~2,850 rpm
• Output voltage range 220~240Vac                • Insulation class: F                                     • Protection degree: IP68

9. Compare with Diesel pump

10. Extra service:

• Design software to make the system configuration automatically.
•
•
• Monitoring system can realize remote control for inverters.
•

11. Want more details?---Just contact us.
