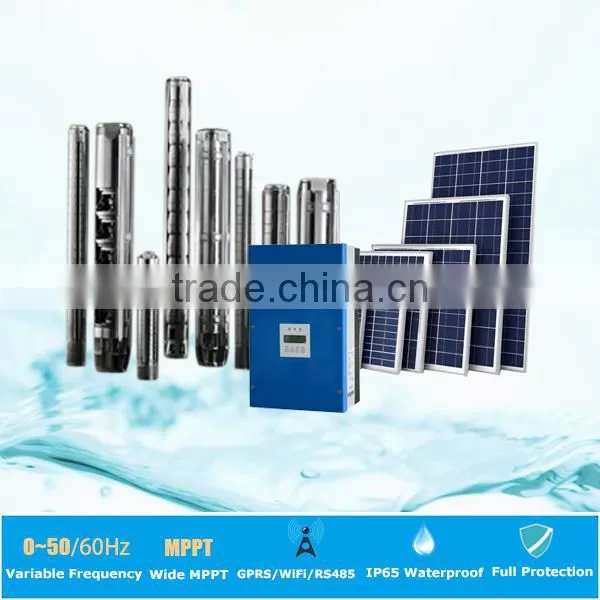

1. Simple Introduction Of JNTECH Solar Pumping System for Irrigation and Home Water Supply:
Solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC powerwhich drives AC pump to pump water from borehole, river,lake etc.
2. Solar pump system Application
3. System features:
The advantage of JNTECH Solar Pumping System as following:
- Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
- Automatic start and shut off according to solar intensity.
- Soft start controlling in rush current, to avoid motor burning.
- IP65 design for outdoor application.
- System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
- No need derate the power capacity for pump matching. The matching power with pump is 1:1.
- 3 years warranty for solar pump inverter.
- Complete system protection function and long lifespan.
- Visual LCD based indications, DC switch inside, float switch for dry or overflow protection.
- Support Utility grid or generator work as pass by or complementary, working time 24hours per day.

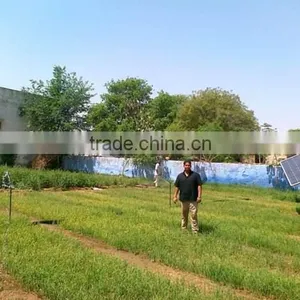

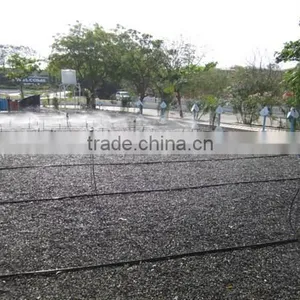

4. Project Information
Case one:
Solution System: JNP1K5L
Solar Pumping Inverter: JNP1K5L
Application: Nursery Irrigation
Location: Guangdong
Case two:
System Solution: JNP3K7L
Solar Pumping Inverter: JNP3K7L
Application: Agriculture irrigation
Location: Rajasthan, India
Case two
System Solution: JNP3K7H
Application: Irrigation
Location: Jalgaon, India
5, Solar panels
Polycrystalline 250W (Vmp=30.3V,Isc=8.71A) solar panels are used in system configuration
Nominal power watt Pmax (Wp) |
250W |
Max. power voltage (Vmp) |
30.3V |
Max. power current (Imp) |
8.17A |
Open circuit voltage (Voc) |
36.3V |
Short circuit current (Isc) |
8.71A |
Power tolerance |
0~+3% |
We also have other specifications of solar panels, we couold supply them according to the system and the customer's requests.
6, Solar pumping inverter
d.c. Max. Input Voltage |
450Vdc - 880Vdc |
Recommended MPPT Voltage |
150~850Vdc |
d.c. Max. Input Current |
5A - 24.6A |
Max. Motor Output Power |
1.1kW - 3.7kW |
Rated Output Voltage |
220 ~ 460 Vac; three phase |
Output Frequency |
0~50/60Hz |
Rated Output Current |
5.5A - 17A |
Max. Efficency |
98% |
8, Pump Specifications
We choose pump according to project head and water requirement.
• Power capacity: 1.1kW to 3.7kw • Highly efficient 3-phase AC motor • Frequency 50Hz (60Hz optional) • stainless steel: AISI304 Power factor: 0.87 Motor AC Drive SUB4" 6"
• No electronics in the motor • Efficiency max. 92% • Motor speed: 1,150~2,850 rpm
• Output voltage range:150~460Vac • Insulation class: F • Protection degree: IP68
9. More function module:
AC PowerPACK, support the system working 24 hours per day!
Which work as power supplement or pass-by, allows the pump to be powered by an AC generator or commercial utility power, besides of solar energy.
The solar array remains connected. If the sun comes out again, less power is drawn from the AC source.
A common application is for diesel generator or unstable regions of utility grid. When the sun irradiation is insufficient, just switch on the AC power source, which will work as supplement; And even at night, AC power source can work as pass by.
The PowerPack will power the pump to its full capacity.
10.Extra service:
Design software to make the system configuration automatically.
- Monitoring system can realize remote control for inverters.
11. Company Introduction
Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of solar power plant to R&D, manufacturing of key equipment and stand alone system solution provider, Jntech has come a long way in the past 10 years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200 (50% of R&D and technical engineers)
Total EPC projects: 500MW (grounded/ rooftop)
Residential off-grid system: 30,000 units (over 10 MW)
Solar pumping system: over 2000 projects in 15 countries
12. Please contact us for more details.
