1. Simple Introduction Of JNTECH Solar Pumping System for Irrigation and Home Water Supply:

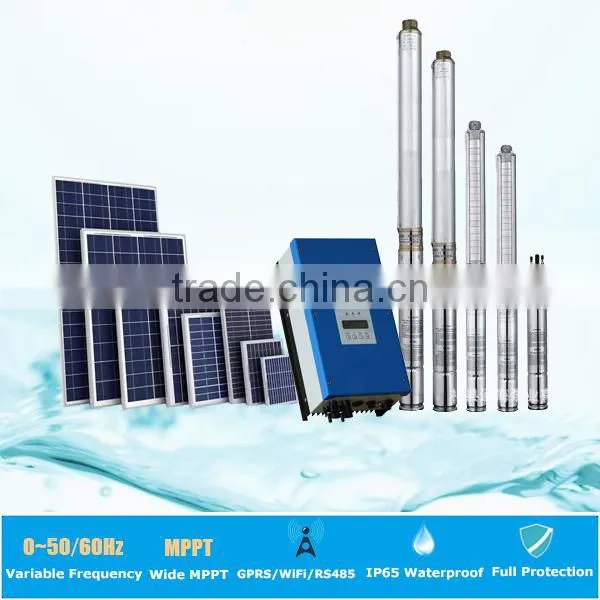

Solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC powerwhich drives AC pump to pump water from borehole, river,lake etc.
2. Solar pump system Application
3. System features:
The advantage of JNTECH Solar Pumping System as following:
- Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
- Automatic start and shut off according to solar intensity.
- Soft start controlling in rush current, to avoid motor burning.
- IP65 design for outdoor application.
- System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
- No need derate the power capacity for pump matching. The matching power with pump is 1:1.
- 3 years warranty for solar pump inverter.
- Complete system protection function and long lifespan.
- Visual LCD based indications, DC switch inside, float switch for dry or overflow protection.
- Support Utility grid or generator work as pass by or complementary, working time 24hours per day.
4. Project Information
Project Information | |||||||
Head |
170meters |
Application |
irrigation,drinking,daily water and so on. |
||||
Water flow |
1-1.8m3/h |
|
|
||||
Configuration | |||||||
Pump |
1.5kW |
Flow |
1m3/h |
Rated head |
165m |
||
Inverter |
1.5kW |
Frequency |
0-50/60 HZ |
Rated output Voltage |
220V-240V, three phase |
||
Solar Panels |
2.2kW |
Specification |
Poly265W /250W |
Array |
8*1*250W |
||
System configuration for the above solar submersible system:
1 strings, each string 8pcs 250W solar panels. Total 8pcs, 2kW solar panels.
5, Solar panels
Polycrystalline 265W (Vmp=30.6V,Isc=9.2A) solar panels are used in system configuration
Nominal power watt Pmax (Wp) |
250W |
Max. power voltage (Vmp) |
30.3V |
Max. power current (Imp) |
8.17A |
Open circuit voltage (Voc) |
36.3V |
Short circuit current (Isc) |
8.71A |
Power tolerance |
0~+3% |
6, Solar pumping inverter
d.c. Max. Input Voltage |
450Vdc |
Recommended MPPT Voltage |
150~400Vdc |
d.c. Max. Input Current |
10A |
Max. Motor Output Power |
1.5kW |
Rated Output Voltage |
220 ~ 240 Vac; three phase |
Output Frequency |
0~50/60Hz |
Rated Output Current |
7A |
Weight |
8.6kgs |
Max. Efficency |
98% |
Dimension( L*w * H) |
203*378*157mm |
8, Pump Specifications
We choose pump according to project head and water requirement.
• Power capacity: 1.5 kw • Rated Head: 186m • Rated flow: 8m3/day
• Highly efficient 3-phase AC motor • Frequency 50Hz (60Hz optional) • stainless steel: AISI304
• No electronics in the motor • Efficiency max. 92% • Motor speed: 1,150~2,850 rpm
• Output voltage range 220~240Vac • Insulation class: F • Protection degree: IP68

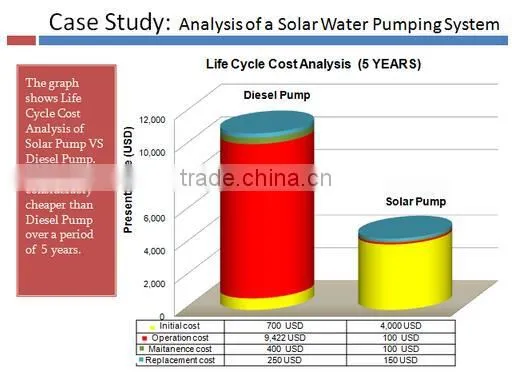

9. Compare with Diesel pump
10. Extra service:
- Design software to make the system configuration automatically.
- Monitoring system can realize remote control for inverters.
11. Company Introduction
Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of solar power plant to R&D, manufacturing of key equipment and stand alone system solution provider, Jntech has come a long way in the past 10 years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200 (50% of R&D and technical engineers)
Total EPC projects: 500MW (grounded/ rooftop)
Residential off-grid system: 30,000 units (over 10 MW)
Solar pumping system: over 2000 projects in 15 countries
11. Please contact us for more details.
