OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside

OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-1
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-2
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-3
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-4
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-5
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside thumbnail-6
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-1
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-2
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-3
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-4
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-5
OEM 15HP Water-proof Solar Pump Inverter With Wide MPPT, DC Breaker Inside photo-6
US$ 1,150 - 1,220 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
JNTECH
Model Number:
JNP11KH
Contact Supplier Request Quote Chat Now
Hefei Jntech New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name JNTECH
Model Number JNP11KH
Output Power 201 - 400KW
Output Type Triple
Size 500*360*211mm
Weight 15kgs
Input Voltage 460V~850Vdc
Output Voltage 380V~460Vac
Type DC/AC Inverters
Output Frequency 0~50Hz/60Hz
Output Current 21A

1. Simple introduction of OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

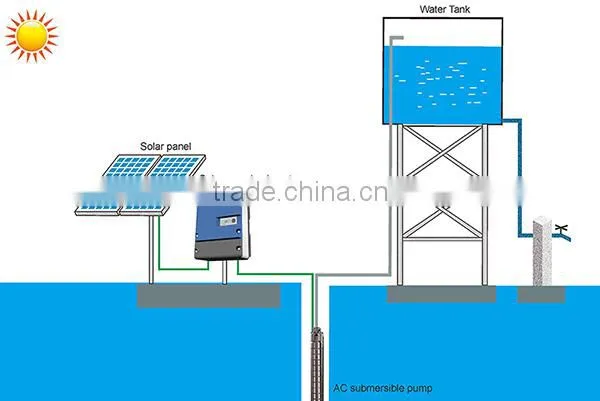

The solar pump inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.





2. Solar Pump System Application

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

     Daily water using                                                       Rural and village water supply                                  Agricultural irrigation

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

     Sprinkling  irrigation                                                  Pasture annimal husbandry                                            Desert  control

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

      Swimming pool                                                                        Scenic  fountain                                       Desalinization of sea water





3. Solar Pump Inverter Features:

  • Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
  •  Automatic start and shut off according to solar intensity.
  •  Soft start controlling in rush current, to avoid motor burning.
  • IP65 design for outdoor application, ambient temp. -25~60 degrees centigrade.
  • System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
  • No need derate the power capacity for pump matching. The matching power with pump is 1:1.
  • Adopt thin-film capacitor, 3 years warranty.
  • Complete system protection function and long lifespan.
  •  Visual LCD based indications, DC switch &  lightening protection inside.
4.  Extra service:
  • Design software to make the system configuration automatically.
  • Monitoring system can realize remote control for inverters.



5. Recommended Pump

 We choose pump according to project head and water requirement.



    OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside





6. Specification of  JNTECH 15HP Water-proof Solar Pump Inverter



d.c. Max. Input Voltage    880Vac
  Recommended MPPT Voltage  460~850Vac
  d.c. Max. Input Current  24.4A
  Max. Motor Output Power  11Kw
  Rated Output Voltage  380Vac~460Vac
  Output Frequency  0~50/60Hz
Rated Output Current                                          21A





7. Recommend Solar panels

Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are normally used in system configuration

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside                         OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside



Nominal power watt Pmax (Wp)                  250W
Max. power voltage (Vmp) 30.3V
Max. power current (Imp) 8.17A
Open circuit voltage (Voc) 36.3V
Short circuit current (Isc) 8.71A
Power tolerance 0~3%







8. Company Introduction

Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech

company with a portfolio of diversified products and services.

Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of

solar power plant to R&D, manufacturing of key equipment and stand-alone system solution provider, Jntech hascome a long way in the past 10 years.

Numbers of Jntech:

Registered capital: 100 million RMB

Employee: over 200 (50% of R&D and technical engineers)

Total EPC projects: 500MW (grounded/ rooftop)

Residential off-grid system: 30,000 units (over 10 MW)

Solar pumping system: over 2000 projects in 15 countries

OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside

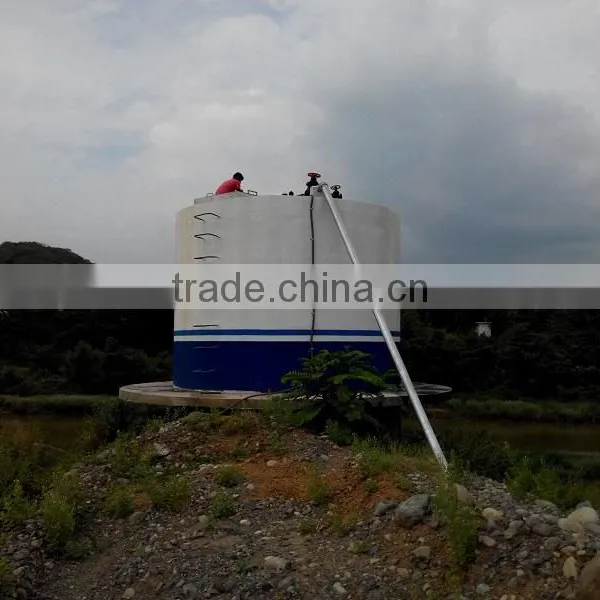

9. Part of our Reference



OEM 15HP Water-proof Solar Pump Inverter with Wide MPPT, DC Breaker inside





10. Any other details, please contact with us.
