Product Details
Place of Origin: | Anhui, China | Brand Name: | JNTECH | Model Number: | JNP7K5H |
Output Power: | 1 - 200KW | Output Type: | Triple | Size: | 203*378*157mm |
Weight: | 11kgs | Input Voltage: | 460V~850Vdc | Output Voltage: | 380V~460Vac |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 18A |
Product Description
1. Simple introduction of JNTECH 10HP Water-proof Solar Pump Inverter

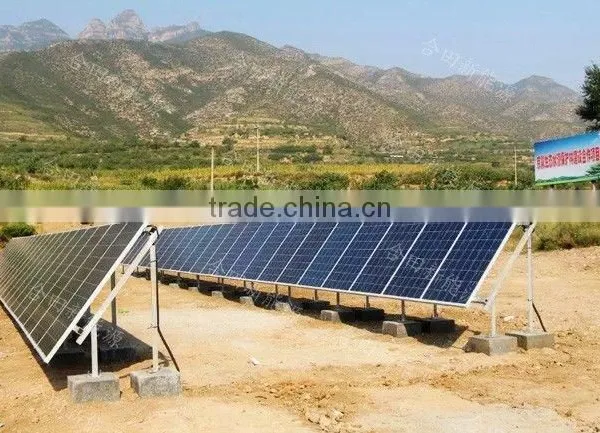

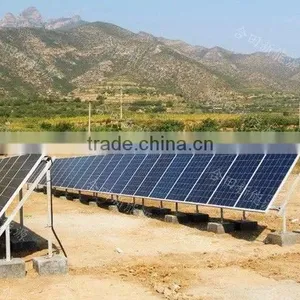

AC Solar Pumping System consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device. The solar pump inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
2. Solar Pump System Application
Daily water using Rural and village water supply Agricultural irrigation
Sprinkling irrigation Pasture annimal husbandry Desert control
Swimming pool Scenic fountain Desalinization of sea water
3. Solar Pump Inverter Features:
- Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
- Automatic start and shut off according to solar intensity.
- Soft start controlling in rush current, to avoid motor burning.
- IP65 design for outdoor application, ambient temp. -25~60 degrees centigrade.
- System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
- No need derate the power capacity for pump matching. The matching power with pump is 1:1.
- Adopt thin-film capacitor, fanless design for 7.5kw and below, 3 years warranty.
- Complete system protection function and long lifespan.
- Visual LCD based indications, DC switch & lightening protection inside.
- Design software to make the system configuration automatically.
- Monitoring system can realize remote control for inverters.
5. Recommended Pump
We choose pump according to project head and water requirement.
6. Specification of JNTECH 10HP Water-proof Solar Pump Inverter
d.c. Max. Input Voltage | 880Vac |
Recommended MPPT Voltage | 460~850Vac |
d.c. Max. Input Current | 16.3A |
Max. Motor Output Power | 7.5Kw |
Rated Output Voltage | 380Vac~460Vac |
Output Frequency | 0~50/60Hz |
Rated Output Current | 18A |
7. Recommend Solar panels
Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are normally used in system configuration
Nominal power watt Pmax (Wp) | 250W |
Max. power voltage (Vmp) | 30.3V |
Max. power current (Imp) | 8.17A |
Open circuit voltage (Voc) | 36.3V |
Short circuit current (Isc) | 8.71A |
Power tolerance | 0~3% |
8. Company Introduction
Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech
company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of
solar power plant to R&D, manufacturing of key equipment and stand-alone system solution provider, Jntech hascome a long way in the past 10 years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200 (50% of R&D and technical engineers)
Total EPC projects: 500MW (grounded/ rooftop)
Residential off-grid system: 30,000 units (over 10 MW)
Solar pumping system: over 2000 projects in 15 countries
9. Part of our Reference
10. Any other details, please contact with us.
