IP65 Solar Pump Inverter
- 600 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Anhui, China | Brand Name: | JNTECH | Model Number: | JNP3-SP1-28 |
Specification: | Normal | Application: | Home | Output Voltage (V): | 220V |
Load Power (W): | 1.5Kw | Solar Power (W): | 2KW | Work Time (h): | 10h |
Product Description
1. Solar pump system introduction
Solar pumping system consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
2. Solar pump system Application
Daily water using Rural and village water supply Agricultural irrigation
Sprinkling irrigation Pasture annimal husbandry Desert control
Swimming pool Scenic fountain Desalinization of sea water
3. Solar pump system feature
Reliable solution provider in non-electricity and water deficient area.
Wide application with all kinds of PV modules and three-phase AC pumps
IP 65 for outdoors application
Max.operation temperature 60℃
GPRS remote monitoring for real time operation status and control on/off
Excellent performance during cloudy weather with 5% more water output compared to
competitors
ROI is only less than 2 years compared to diesel generator
Full automatic unattended operation with perfect protection functions for long lifespan 25 years
3 years warranty for complete system, 10 years for PV modules
4.Project Information
(1).Project Information | |||||
Head | 150meters | Flow | 400m3/day | Location |
|
(2).Confuguration | |||||
Pump | Power:1.5kw | Flow | 1m3/h | Head | 150meters |
Inverter | Power: 1.5kw | Frequency | 0~50/60HZ | Input voltage | 450V |
Solar Panel | Power:2kw | String number | 1 | Solar modules | 8*1*250W |
5. Pump Specifications
We choose pump according to project head and water requirement.
•Power capacity: 1.5kw
•Rated Head: 150m
•Rated flow: 1m3/h
• Highly efficient 3-phase AC motor
• Frequency 50Hz (60Hz optional)
• Premium materials, stainless steel: AISI 304
• No electronics in the motor
• Efficiency max. 92%
• Motor speed 1,150~2,850 rpm
• Input voltage range 380Vac (380~460Vac)
• Insulation class F
• Protection degree IP68
• Max. diving depth 160m
6. Solar pumping inverter
d.c. Max. Input Voltage | 450Vac |
Recommended MPPT Voltage | 150~400Vac |
d.c. Max. Input Current | 8A |
Max. Motor Output Power | 1.5Kw |
Rated Output Voltage | 150Vac~400Vac |
Output Frequency | 0~50/60Hz |
Rated Output Current | 5.5A |
7. Solar panels
Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are used in system configuration
Nominal power watt Pmax (Wp) | 250W |
Max. power voltage (Vmp) | 30.3V |
Max. power current (Imp) | 8.17A |
Open circuit voltage (Voc) | 36.3V |
Short circuit current (Isc) | 8.71A |
Power tolerance | 0~3% |
System configuration:
1 string, each string 8pcs 250W solar panels. Total 8pcs, 2kW solar panels.
8. Company Introduction
Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech
company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of
solar power plant to R&D, manufacturing of key equipment and stand-alone system solution provider, Jntech hascome a long way in the past 10 years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200 (50% of R&D and technical engineers)
Total EPC projects: 500MW (grounded/ rooftop)
Residential off-grid system: 30,000 units (over 10 MW)
Solar pumping system: over 2000 projects in 15 countries

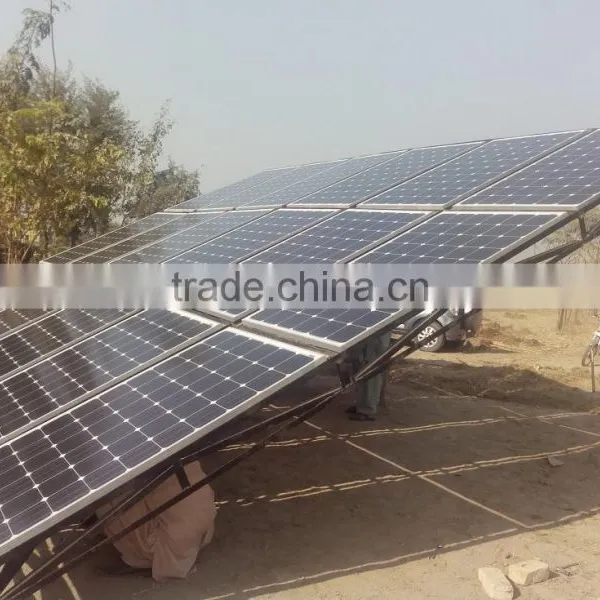

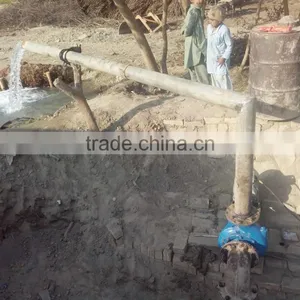

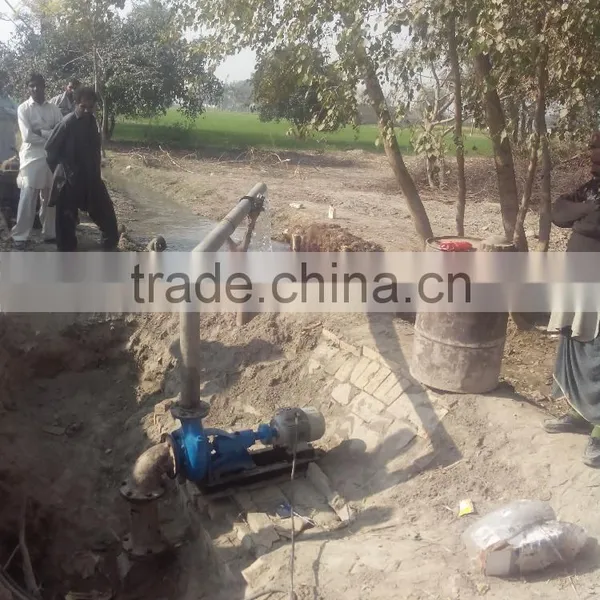

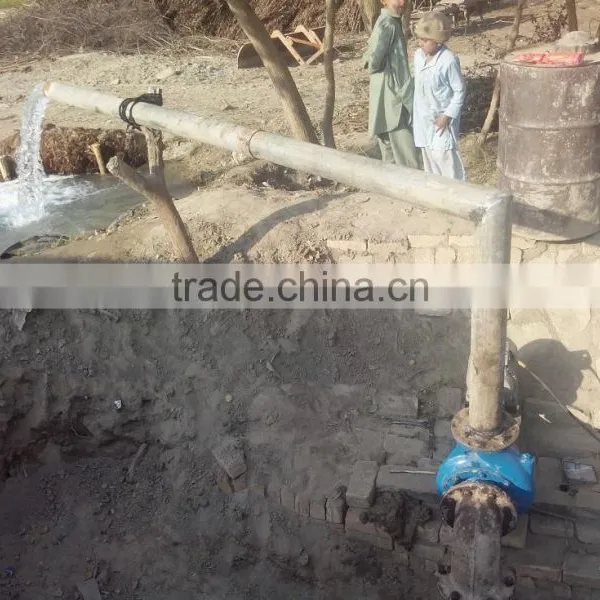

9. Part of our Reference
10. Any other details, please contact with us.
Contact Us
- Hefei Jntech New Energy Co., Ltd.
- Contact nameElla Liu
- Phone86-551-62930323
- AddressNo.28 Taiyuan Road, Baohe Industrial Park Hefei,Anhui
