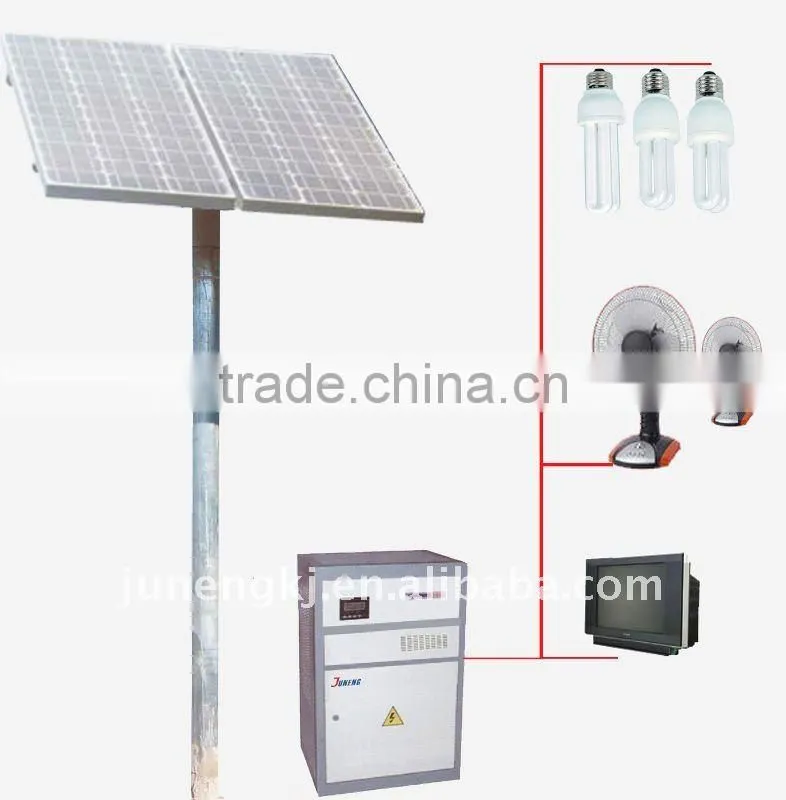

Solar energy System

Specifications

Solar energy System
TUV CE approved Solar Module
300 Wp solar module
DIY Installation
LCD display

solar energy System

Your Benefits:

Power Supply: 27.6kWh per month

You can use:  3 sets of 15W lamps each work 4 hours per day

                       Plus 2 set of 42W fan work 7 hours per day

                       Plus 1 of AC 45W TV work 4 hrs/Day

You can installation the system yourself

You can use power in romote area, without of costs of long distance cables like grid power net

You can use power free of money

You can save money when you use solar system even there already has grid power

You can use solar system everywhere and any time ony if have sun

You can use power without of noise, without of polution



Technical Specification

System Model	Unit	JNISG03K
Support Loads
3 of DC15W lamps work 4 hrs/Day		2 of AC 42W fan work 5 hrs/Day
1 of AC 45W TV work 4 hrs/Day
Power Output
Power Supply	kWh	27.6kWh/M
Max power	W	DC360W,AC300W
Output Voltage	V	DC24V/AC230/120V
Solar Module
Peak Power	Wp	Mono Silicon 150Wp
Vmp	V	17.1V
Quantity	Pcs	2
All In One Machine (Combined with Controller/ Inverter/ Battery)
Controller DC input Voltage	V	24V
Controller DC input current	A	15A
Controller DC Output Power	V	DC24V, 360W
Inverter AC Output Power	W	AC300W
Battery Capacity	/	AGM VRLA ,24V/150Ah
Machine Size	mm	L550*D500*H700
Weight	kg	104
Installation Method	/	Indoor Wall mounted/Floor Standing
Accessories	/	Switch, Breakers, meters, LCD display
Mounting Fittings
Installation Method	/	Standing Pole, Ground Insert
Pole Material	/	Φ15*350cm*δ4mm, hot galvanized metal
Mounting Accessories	/	Rail/End/Middle clip” Aluminum, Bolt: stainless steel
Cables	/	15M Sheathed wire RVV2×2.5mm2
Quantity	/	1 set
Complete system	Solar panel, installation pole and mounting accessories, All In One Machine with controller, inverter, battery, 15M cables

System Devices:

The solar generator you buy would including:

Solar Panel 100Wp, 2 pieces

All In One Machine 1set

Solar Controller 24V 15A, 1 set

Solar battery: 12V/150Ah, 2 set

Solar inverter 300W , 1 set

DC Breaker 2 sets, AC Breaker 1 set

Installation pole: 2.5m Height with kits, 1 set

Electric terminals with switches, cables and all accessories, 1 set5

Solar Home System Technical Characters:

High efficiency solar module from 100Wp to 300Wp, CE, UL, TUV approved

High conversion efficiency, reliable and multi functions All In One Inverter, which combine controller, inverter, battery and electricity distribution devices like breakers, switches, Volt meter in one body. Mostly convenient for installation, maintenance and usage.

Both DC and AC output, widely used for rural homes powering lamp, fan, washer, TV, cooler and so on

LCD Display timely monitoring power amount, voltage, current and so on

Compact design of All In One Inverter with full range of protections and lockable door for battery compartment, the system is powerful and safety for power use.

Anti corrosion mounting system, hot galvanized metal, aluminum material and stainless accessories sure its long life span

Easy DIY installation design, maximum smallized the complete system makes it’s easy for installation, operation and maintenance

Choosing deep cycle AGM VRLA or gel battery, with professional design, maximum its life span, safety and important of economy.
