commercial solar system

Specifications

commercial Solar System
Used for office light, fan, PC, Fax, AC, printer and so on
Also be used for community building, office

Commercial Solar System

Application area:

The off grid solar power systems are often used in remote area, pastoral area, Border, Island areas, and places shortage of electricity; The solar system may be used for houses, office, BT station and so on;



Off-grid solar power makes it possible to use power for light, fans, AC like living in a city powered by the utility grid, but without the electric bill



Off grid solar power system also takes you out from troubles when grid failures, makes you use power easy without interruptions in home, office

Technical Characters:

High conversion efficiency, reliable and multi functions controller inverter

Controller and inverter in one body, with bypass grid power connection as option, which high quality and reliable, often has LED, LCD display and RS232/RS485 connect interface

Full range of protections by control inverter machine

Easy installation for small sizes of systems, and easy operation

Top grade solar panels, and deep cycle VRLA or gel battery

System design with shallow discharge average DOD lower than 30%, maximizing its life span

Special battery box makes you house more safety, and makes battery from dust, water and so on



Notes:

System basis of average solar irradiate more than 4kWh/m2/D,15°c~25°c temperature, weekly rain less than 2 days, different place with different solar irradiate and rainfall, temperature and so on, should make necessary configuration changes



Complete System Solution

Type Type		Unit	JNISG9K
Power Output	Power Supply	kWh/M	828kWh/M
	Power	W	AC10000W
	Voltage	V	230/110V
	Frequency	Hz	50/60Hz
	Load Recommend		5Kw Loads
PV Panel	Type		Poly Silicon
	Peak Power	Wp	170Wp
	Vmp	V	17.8V
	Quantity	Pcs	54
Controller & Inverter	Power	W	AC10000W
	Input Voltage	V	220
	Input Current	A	30A
	Grid Bypass	V/Hz	230/110V±15%,50/60Hz
	Size	mm	500X 550 X 1500
	Weight	Kg	180
	Accessories		Switch, Breakers, meters, LCD display
	Quantity		1
Battery	Type		VRLA
	Voltage	V	2V
	Capacity	Ah	600Ah
	Size		471×171×365
	Weight	Kg	50
	Quantity	Pcs	110

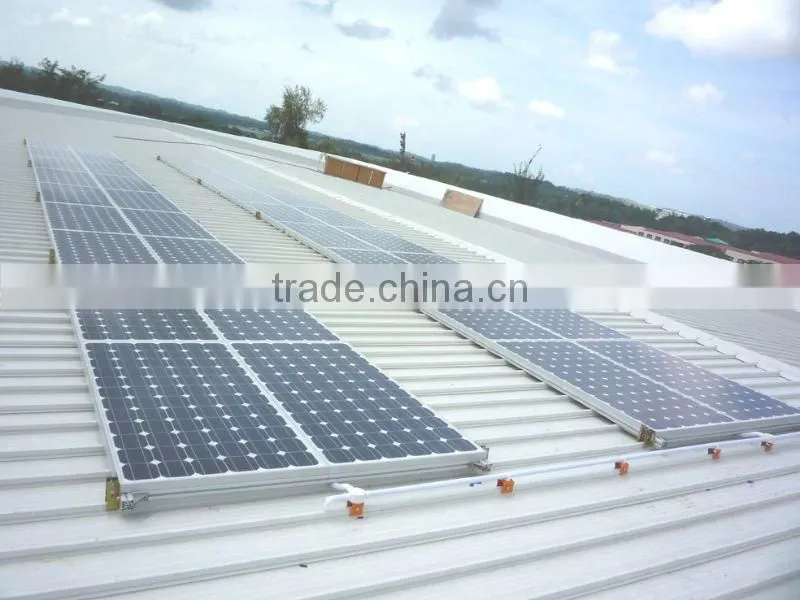

Structure	Installation Method		Building Integrated
	Panel support Material		40A aluminum profile
	Screw Material		Stainless
	Screw Quantity		320*( M8×20) and 216 steel tile clamp
	Cables		20M RVV2×6mm2
Battery box	Size		Lockable  800×800×1500
	Material		galvanized steel and with plastic spray
	Weight		250kg
	Quantity		4
