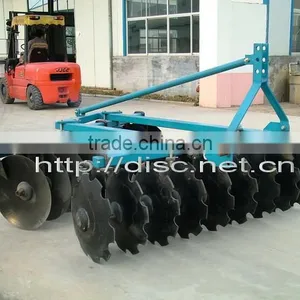

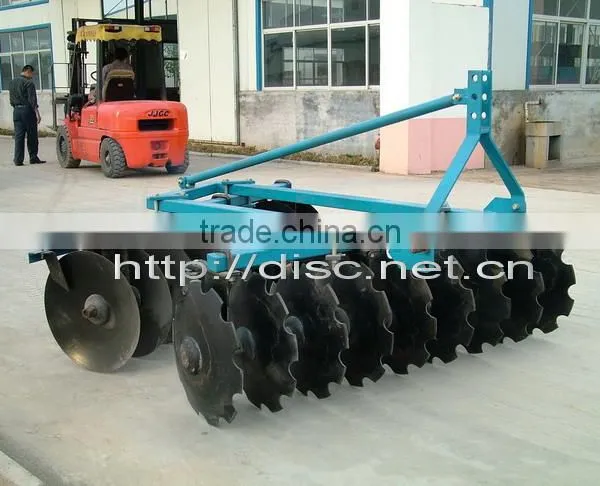

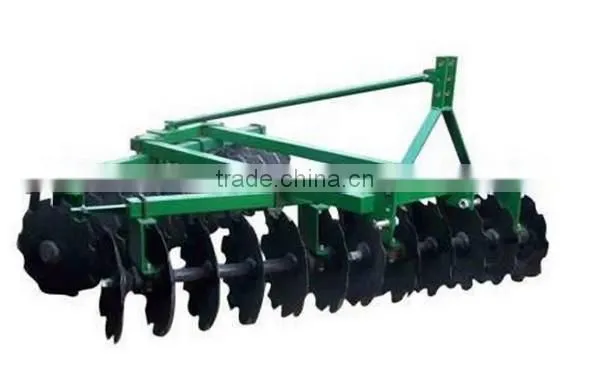

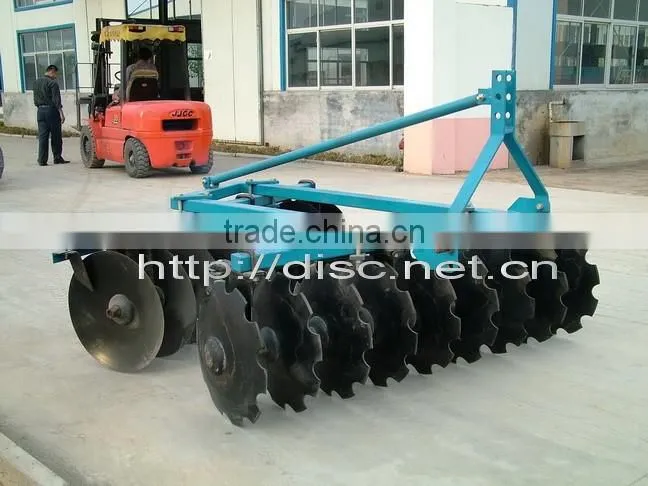

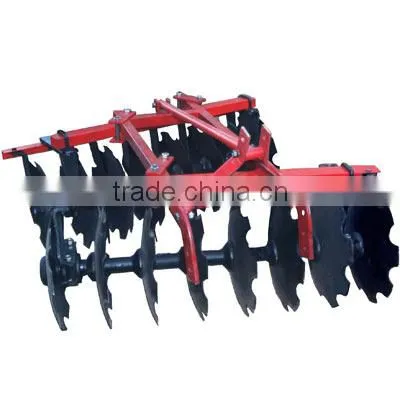

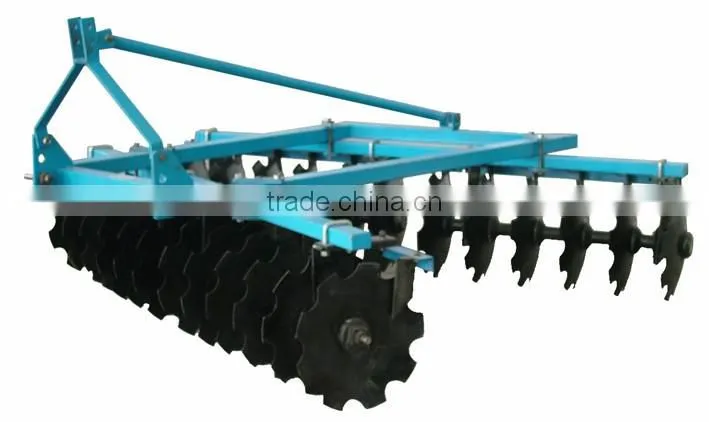

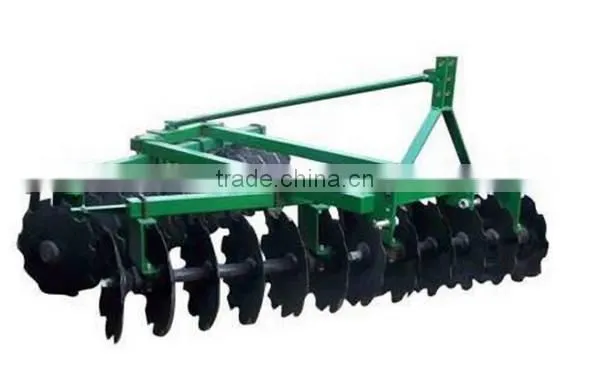

Light Mounted Disc Harrow
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.
Technical parameters:
<![if !supportMisalignedColumns]><![endif]>
Model |
1BQX-1.1 |
1BQX-1.3 |
1BQX-1.5 |
1BQX-1.7 |
1BQX-1.9 |
1BQX-2.3 |
|
Overall size (mm) |
1590*1230*830 |
1590*1440*830 |
1900*1600*1120 |
1900*1820*1120 |
2300*2000*1120 |
2650*2450*1280 |
|
Weight (Kg) |
200 |
220 |
240 |
260 |
300 |
500 |
|
Working width (M) |
1.1 |
1.3 |
1.5 |
1.7 |
1.9 |
2.3 |
|
Working depth (mm) |
80-140 |
||||||
Qty. of discs |
12 |
14 |
16 |
18 |
20 |
24 |
|
Dia. Of disc (mm) |
460 |
||||||
Thickness of disc (mm) |
3 |
||||||
Disc spacing (mm) |
200 |
||||||
Productivity (Ha/h) |
0.7 |
0.84 |
0.97 |
1.1 |
1.3 |
1.5 |
|
Linkage |
Three point mounted |
||||||
Matched Power (Hp) |
9-15 |
11-19 |
15-26 |
21-30 |
26-37 |
≥41 |
|
