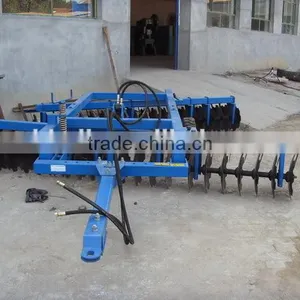

Tractor Light Duty Disk Harrow

Tractor Light Duty Disk Harrow photo-1

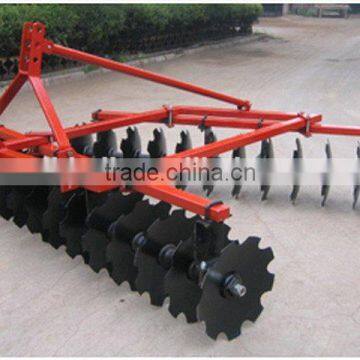

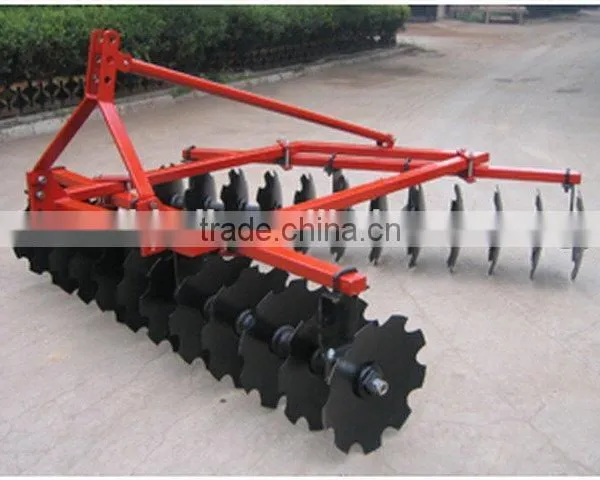

Tractor Light Duty Disk Harrow photo-2

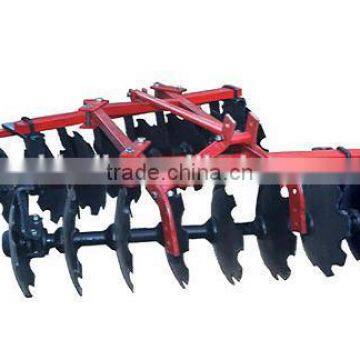

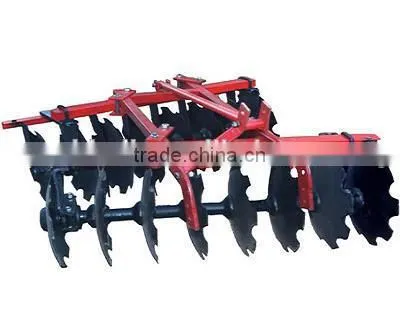

Tractor Light Duty Disk Harrow photo-3

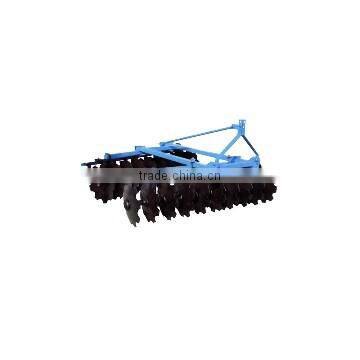

Tractor Light Duty Disk Harrow photo-4

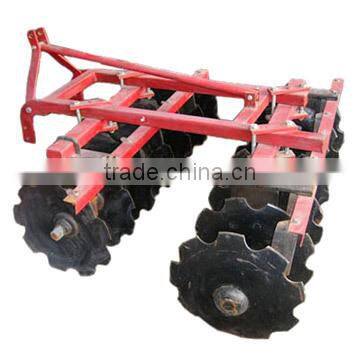

Tractor Light Duty Disk Harrow photo-5

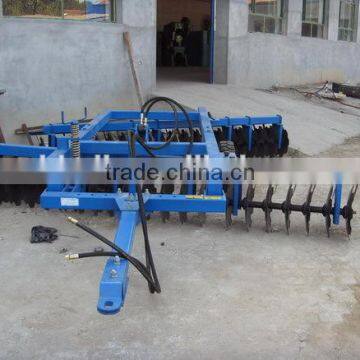

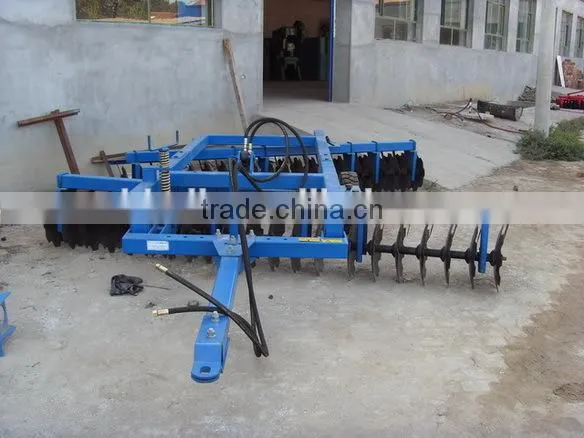

Tractor Light Duty Disk Harrow photo-6
US$ 200 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
agricultural machinery
Use:
agriculture
Certification:
ISO9001:2000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Type agricultural machinery
Use agriculture
Certification ISO9001:2000
Place of Origin Shandong, China
Brand Name Dadi
Model Number 1BQX Series
Condition New
After-sales Service Provided No overseas service provided

tractor light duty disk harrow

The 1BQX series  Disk Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.



The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.

The 1BQX series suspension Light-duty Disc Harrow’s front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.

Main Specifications:
Model
1BQX—1.1
1BQX—1.3
1BQX—1.5
1BQX—1.7
1BQX—1.9
1BQX—2.3

Name

The 12-blades light-duty harrow

The 14-blades light-duty harrow

The 16-blades light-duty harrow

The 18-blades light-duty harrow

The 20-blades light-duty harrow

The 24-blades light-duty harrow
(mm)Overall dimensions
L
1590
1590
1905
1985
2060
2650
W
1230
1440
1600
1820
2000
2450
H
830
830
1118
1118
1118
1280
(m)
Max. Working width
1.1
1.3
1.5
1.7
1.9
2.3
(cm)
Working depth
10~14
No. Of disc
12
14
16
18
20
24
(mm)
Dia of disc
460
(mm)
Thickness of disc
3
Weight(kg)
200
220
240
260
300
500
(ha/h)
Productivity
0.7
0.84
0.97
1.1
1.25
1.5
Linkage
three-point mounted
(mm)
Trans. Clearance
≥280
≥280
≥200
≥200
≥200
≥200
(HP)
Matched power
12~18
15~24
22~28
30~40
35~45
50~60

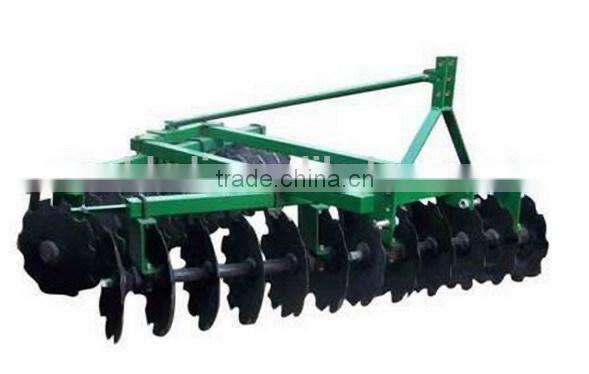

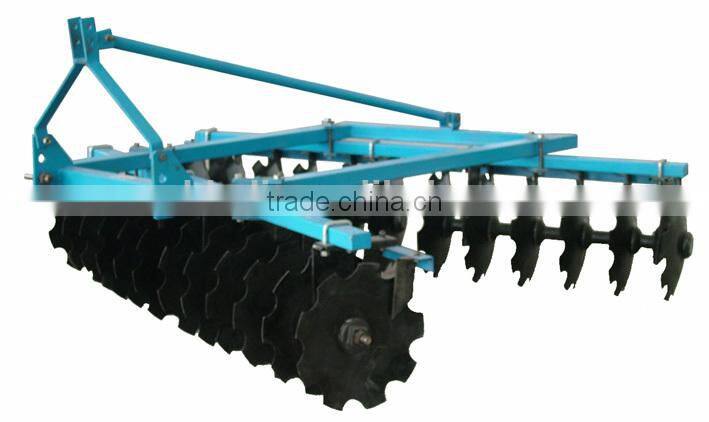

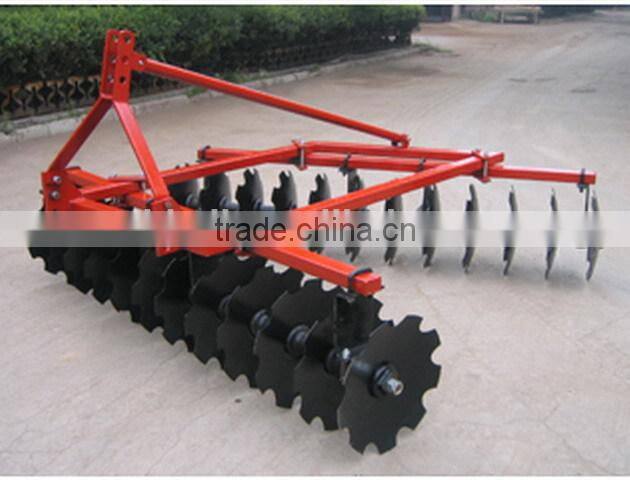

tractor light duty disk harrow
tractor light duty disk harrow
tractor light duty disk harrow

tractor light duty disk harrowtractor light duty disk harrowtractor light duty disk harrow

tractor light duty disk harrow

tractor light duty disk harrowtractor light duty disk harrow

tractor light duty disk harrow

tractor light duty disk harrow
