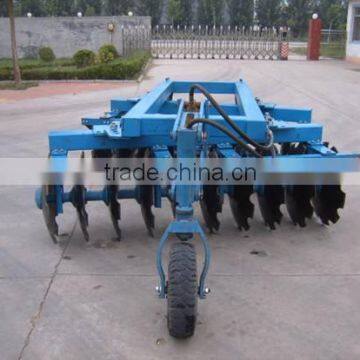

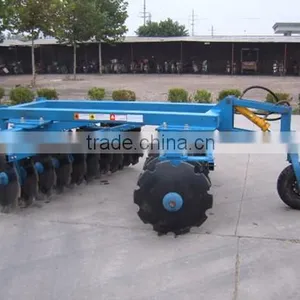

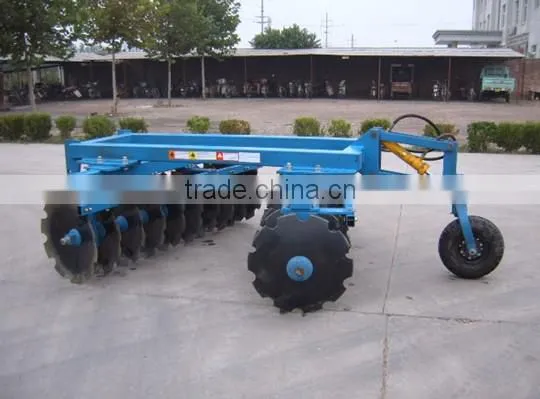

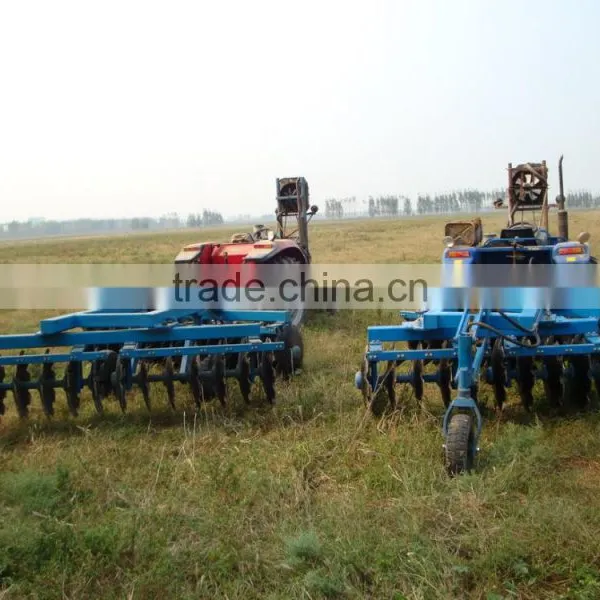

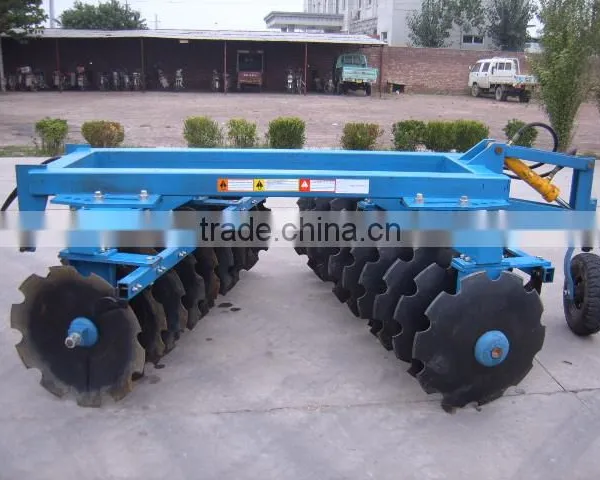

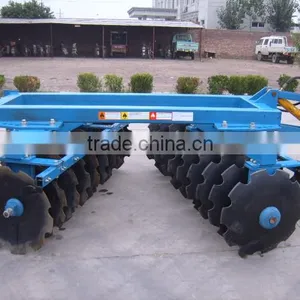

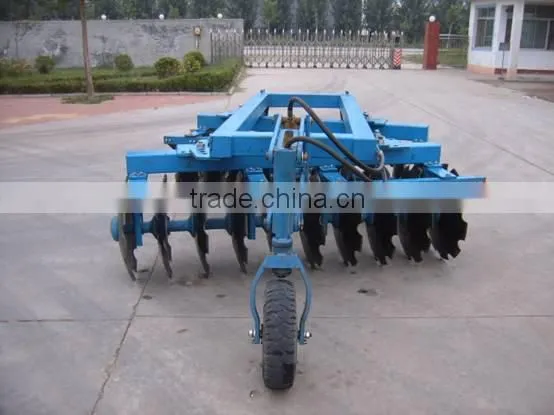

Agricultural Machinery of High Quality Offset Disc Harrow Disc Harrow
US$ 1,500 - 2,500
MOQ: 5 Sets
Key Specifications
Get Latest Price
Type:
farm machinery
Use:
farmer
Certification:
ISO9001:2000,BV
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Agricultural Machinery Hydraulic High Quality Offset Disc HarrowUS$ 1,500 - 2,500MOQ: 5 Sets -
Trailed Hydraulic Heavy Duty Disc HarrowUS$ 500 - 7,000MOQ: 1 Set
-
Tractor Light Duty Disk HarrowUS$ 200 - 3,000MOQ: 1 Set
-
China New Compact Tractor Disc Harrow With Low PriceUS$ 1,000 - 10,000MOQ: 1 Set
-
Agricultural Disc Harrow for Sale With Best QualityUS$ 1,000 - 10,000MOQ: 1 Set
Type
farm machinery
Use
farmer
Certification
ISO9001:2000,BV
Place of Origin
Shandong, China
Brand Name
dadi
Model Number
1BZ
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
powerful enterprises spare parts for disc harrow with high quality offset disc harrow
Farm Machinery
1: disc harrow Type: 1BZ-1.6,1BZ-1.8,1BZ-2.0,1BZ-2.2,1BZ-2.5,1BZ-3.0,1BZ-3.4,
1BZ-3.9,1BZ-4.4,1BZ-4.8,1BZ-5.3,1BZ-6.2
2: disc harrow Material: 65Mn
3: disc harrow Working width : 1600-6200mm
4: disc harrow Working dept: 200mm
5: disc harrow Linkage : Trailed
6: disc harrow Export: EU;North America ;South America; North Africa etc..
disc harrow:
powerful enterprises spare parts for disc harrow with high quality offset disc harrow
The series heavy-duty off-set disc harrows are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry culdtivated fields.
The series produced are all fitted with hydraulic rubber wheel for transportation.
It is easy to be transported and change direction on the edge of fields.
Specifications:
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall dimension | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 |
| Working depth | cm | 20 | ||||
| Blade spacing | mm | 230 | ||||
| No of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia.of disc | mm | 660 | ||||
| Transport clearance | mm | >160 | ||||
| Producivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | kw | 44-55 | 52.9-66.2 | 55-73.5 | 58.8-88 | 66.2-100 |
| Linkage | Trailed | |||||
