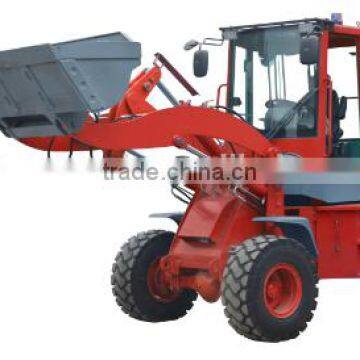

HR912 1.2Ton Mini Zero Tail Wheel Loader With Euro3 Engine

Name: HR912 1.2Ton Mini Zero Tail Wheel Loader With Euro3 Engine
Brand: TRUEMACH
SKU: 140294918
Availability: InStock

US$ 10,000 - 10,500 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TRUEMACH

Model Number:

HR912

Luoyang Truemach Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TRUEMACH

Model Number HR912

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4400x1700x2650mm

Rated Load 1200kg

Certification CE, ISO, FORS, PORS, EPA

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

HR912 1.2Ton Mini Zero Tail Wheel Loader With Euro3 Engine

Benefit & Features:

1.Stronger cab, E4 safety glass,hydraulic lift function enables the cab tilt for easy maintenance.

2.Streamlined tank,Inclined filler, refueling convenient.

3.Famous brand hydraulic parts, long life and stable performance.

4.Adjustable seat, adjustable instrument panel, easy to use and comfortable.

5.The hydraulic steering, easy and convenient operation.

6.The hydraulic walking, the choice of high-quality gear pump, two forward gears and two reverse gears.

7.Machine performance is very stable, with extraordinary operation efficiency.

8.A variety of optional accompanied,such as snow plow, sweeper, hammer, holding clip, auger, in order to meet the needs of different users.

9.Front windshield with rear-view mirror, arm lift no dead line of sight.

10.New type quick hitch means that it is greater breakout force, increased unloading distance, simple structure and easy to operate.

Techanical Specifications:

Bucket Capacity(m³)		0.6
Operating Weight(kg)		3300
Bucket Width(mm)		1650
Rated Load(kg)		1200
Brake Mode		Four-wheel hydraulic spead-shoed brake
Driving Mode		Four-wheel drive
Overall Dimensions (mm)(LWH)		4400x1700x2650
Max. Breakout Force(KN)		32
Forward Speed 1^st(km/h)		0-12
Forward Speed 2^nd(km/h)		0-25
Reverse Speed (km/h)		0-25
Max. Dumping Height(mm)		2650
Max. Dumping Reach (mm)		1000
Min. Turning Radius(mm)		4700
Full Bucket Lifting Time (s)		4.5
Total Hydraulic Cycle Time (s)		9
Tread Width (mm)		1900
Wheel Base (mm)		1750
Min. Clearance Over Ground (mm)		230
MAX. Tilt Angel(°)		30
Diesel Engine	Brand	Yunnei Engine
	Optional brand	Euro3 and EPA Xinchai Engine Imported Yanmar/Perkins/Kubota Engine
	Type	In-line arrangement,Four-stroke,Water cooled, 4-cylinder diesel engine
	Rated Output(KW)	37kw
	Rated Speed (rpm)	2200-2600
	Engine starting mode	Electric
Transmission	Type	Hydraulic converter
Transaxle	Rear Axle Oscillation	Center oscillation
	Oscillating Angle Of Rear Axle	13°
Tire	Model	12.00-16
	Optional model	12-16.5 or 14-17.5 Wider Tyre 31*15.5-15 Agriculture Tyre
Steering System	Working Pressure (MPa)	10
	Steering System	Articulated Frame with hydraulic power steering
	Max. Steering Angle (°)	35
Working Hydraulic System	Pressure Of Tire (MPa)	2.5-3.5
	Working Pump Type	Gear pump
	Working Pressure (MPa)	16
Brake System	Service Brake	Four Wheel Hydraulic spread-shoed brake
	Parking Brake	Hand operated
