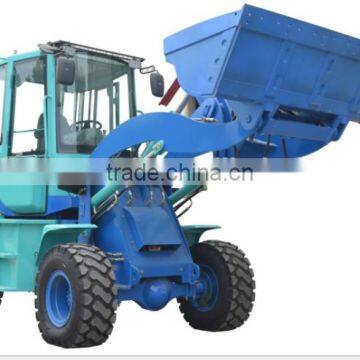

HR918 1.8Ton Tailless Mini Wheel Loader With Euro3 Engine

Name: HR918 1.8Ton Tailless Mini Wheel Loader With Euro3 Engine
Brand: TRUEMACH
SKU: 140294920
Availability: InStock

US$ 11,500 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TRUEMACH

Model Number:

HR918

Luoyang Truemach Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TRUEMACH

Model Number HR918

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4500x1885x2800mm

Rated Load 1800kg

Certification CE, ISO, FORS, PORS, EPA

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

HR918 1.8Ton Tailless Mini Wheel Loader With Euro3 Engine

Benefits & Features:

1.Stronger cab, E4 safety glass,hydraulic lift function enables the cab tilt for easy maintenance.

2.Streamlined tank,Inclined filler, refueling convenient.

3.Famous brand hydraulic parts, long life and stable performance.

4.Adjustable seat, adjustable instrument panel, easy to use and comfortable.

5.The hydraulic steering, easy and convenient operation.

6.The hydraulic walking, the choice of high-quality gear pump, two forward gears and two reverse gears.

7.Machine performance is very stable, with extraordinary operation efficiency.

8.A variety of optional accompanied,such as snow plow, sweeper, hammer, holding clip, auger, in order to meet the needs of different users.

9.Front windshield with rear-view mirror, arm lift no dead line of sight.

10.New type quick hitch means that it is greater breakout force, increased unloading distance, simple structure and easy to operate.

Technical Specifications:

Parameter	Overall weight(kg)	4200
	Rated bucket capacity(m³)	0.9
	Rated load(kg)	1800
	Bucket indicator	Yes
	Max. breakout force(KN)	43
	Max grade ability	30°
	Performance of bucket being set level	Yes
	Total of three time: lifting, dumping, lowering(s)	9.5
Engine	Model	Yunnei YN33
	Type	Inline arrangement, water cooling, four-stroke, four-cylinder
	Optional	Yanmar or Perkins or Kubota engine
	Rated power(kw)	≤42
	Rated speed(r/min)	≤2400
Transmission system	Model of torque converter	YJ265
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Valve distributing working	ZL20B
	Working pump	CBGj1045,CBGq1018
	Fuel capacity(L)	45
Operating system	Single handle pilot joystick
Steering system	Type	Articulated hydraulic steering
Steering system	Max. turning angle	35±1°
Axle	Isuzu driving axle
Tires	Standard tires	23.5/70-16 tire
	Optional Tire	14-17.5 or 295/80R22.5 or 315/80R22.5
