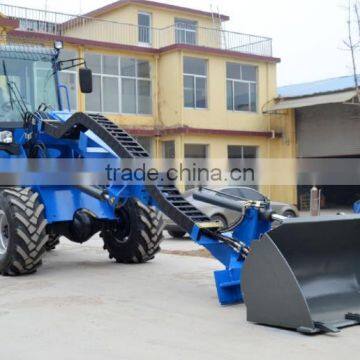

TL2000 2Ton Telescopic Wheel Loader

TL2000 2Ton Telescopic Wheel Loader thumbnail-1
TL2000 2Ton Telescopic Wheel Loader photo-1
US$ 12,000 - 12,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TRUEMACH
Model Number:
TL2000
Contact Supplier Request Quote Chat Now
Luoyang Truemach Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TRUEMACH
Model Number TL2000
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6800x2050x2900mm
Rated Load 2000kg
Certification CE, ISO, FORS, PORS, EPA
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

TL2000 2Ton telescopic wheel loader

Specification:

1.0 Engine Details

(1) Model: Chinese Yunnei engine

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:55KW or 60KW or 65KW

(4) Rated Speed:2400 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

2.0 Transmission System

Hydraulic converter + drive shaft + axles

3.0 Bucket

(1) Bucket Capacity: 0.8m³

(2) Bucket width: 1600-2000mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 2000kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 6800mm

(2) Overall Height:2900mm

(3) Overall Width: 2050mm

(4) Max. lifting Height:5100mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 5000mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Joystick

(5) Self levering

(6) Max. Dumping height: 3750mm

6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated

7.0 Tyre

(1) Model:16/70-20

8.0 Wheelbase: 2610mm

9.0 Track: 1570mm

10. 0 System pressure:16Mpa; Hydraulic output:70L/min

11. 0 Ovrall weight: 6300KG



Features :



1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has bette

    pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s

a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance

   much more simple.
