HR926 2.6Ton Tailless Small Wheel Loader With Euro3 Engine

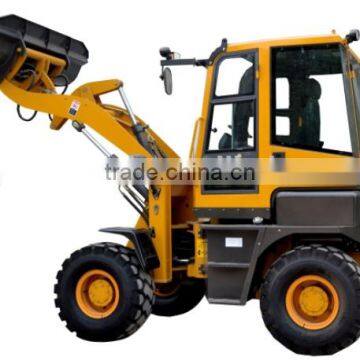

HR926 2.6Ton Tailless Small Wheel Loader With Euro3 Engine photo-1
US$ 14,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TRUEMACH
Model Number:
HR926
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TRUEMACH
Model Number HR926
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5300x2040x2850mm
Rated Load 2600kg
Certification CE, ISO, FORS, PORS, EPA
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

HR926 2.6Ton Small Tailless Wheel Loader With Euro3 Engine



Technical Parameters:
Rated loading 2600kg
Overall weight  5900kg
Rated bucket capacity  1.3m³
Maximum tractive force  ≥54KN
Maximum breakout force  ≥45.4KN
Maximum grade ability  25°
Maximum dump height  3300mm
Maximum dump reach  860mm
Overall dimension (L×W×H)  5300×2040×2850mm
Minimum turning radius 5260mm
Transmission System:
Torque converter  YJ280
Gearbox mode  Counter shaft power-shift
Gear shift  2 forward shift 2 reverse shift
Maximum speed  25km/h
Engine:
Model  Yunnei engine
Optional model Cummins engine
Type  Vertical, in-line, water cooled, 4-stroke diesel engine
Rated power 65KW
Rated speed  2400rpm
Engine starting mode  Electric
Drive Axles:
Main reducing spiral  Circular Arc Bevel gear, single stage
Decelerating mode  Single stage planetary type
Wheel base (mm)  2200mm
Wheel tread  1640mm
Ground clearance  310mm
Tire:
Tire type 16/70-20
Brake system:
Brake mode  Four-wheel hydraulic spread-shoed brake
Packaging Details: Nude package,1 unit in 20GP,2 units in 40HQ
Delivery term: 15-25 days after 30% down payment
Warranty: 15 months after delivery
Port:  Qingdao
