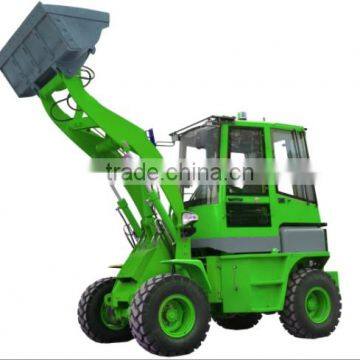

HR915 1.5Ton Small Zero Tail Wheel Loader With Euro3 Engine
1.Engine Details |
(1) Model: Xin'chai/Yanmar/Cummins Euor3 Engine |
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine |
(3) Rated Power: 36.8KW |
(4) Rated Speed: 2400 r/min (rpm) |
(5) Fuel Consumption ratio in standard working condition: 230g /kw. H |
2.Transmission System |
(1) Type: Fixed-spindle Power shift |
(2) Shift gear control oil pressure: 1.2~1.5MPa |
(3) Rated input speed: 2500 (rpm) |
3.Bucket |
(1) Bucket Capacity: 0.7m³ (2) Bucket width: 1850mm |
(3) Bucket type: Heavy-duty bolt on teeth |
(4) Rated Load: 1500kg |
(5) Operating Weight: 3800kg |
4.Overall Dimensions |
(1) Overall Length (Bucket on ground position): 5300mm |
(2) Overall Height |
(a) Ground to Cab Top: 2750mm |
(b) Dumping Height: 2700mm |
(c) Min. Base to the Ground: 260mm |
(3) Overall Width: 1800mm |
5.Operating Specifications |
(1) Steering System: Articulated Frame with hydraulic power steering |
(2) Min Turning Radius: 4500mm |
(3) Driving System: Hydraulic converter |
6.Brake System |
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake |
(2) Parking Brake: Hand operated |
7.Tire:20.5-16, 12-16.5 or 14-17.5 wide tyres |
