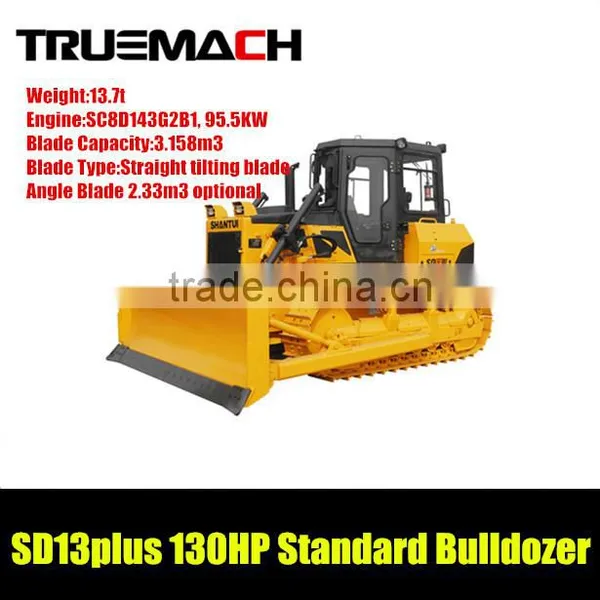

SHANTUI SD13plus 130hp Standard Bulldozer
Technical Features
1.Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy.
2.The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency.
3.The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances.
4.The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays.
5.The optimized working lamp arrangement improves the lighting performance of vehicle.
6.The reversing alarm and the working warning lamp are equipped to ensure higher construction safety.
7.The instrument box and the gantry frame are isolated to relieve the transmission of vibration.
8.The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
9.The external working valves ease the daily maintenances and realize better maintainability.
10The PPC pilot controls achieve better labor-saving and convenient operations.
11.The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving.
12.The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions.
13.The new hexahedron cab features super-large interior space and broader visual field.
14.The mounting surface and the sealing surface are separated to achieve better sealing performance.
15.The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB.
Performance Parameters
| Length × width × height (mm) (excluding ripper) | 4492×3185×2490 | Operating weight(t) (excluding ripper) | 13.7 |
| Engine model | SC8D143G2B1 | Net power/rated speed (kW/rpm) | 95.5/1900 |
| Ground pressure(Mpa) | 0.063 | Blade type | Straight tilting blade Angle blade |
| Blade capacity (m3) | 3.158 for straight tilting blade and 2.33 for angle blade | ||
