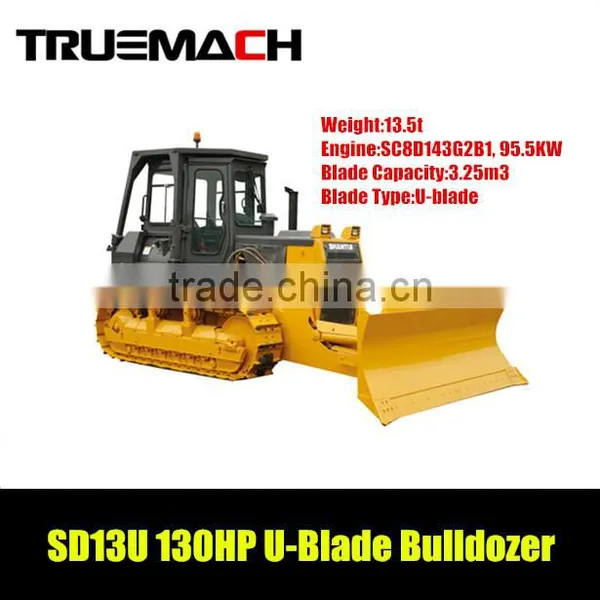

SHANTUI SD13U 130HP U-Blade Bulldozer
SD13U U-blade bulldozer is equipped with the engine of high power, low fuel consumption, and high torque reserve and the power shift transmission, featuring high working efficiency, high performance reliability, and flexible and convenient operations.
Engine power:95.5kw/1900rpm
Operating weight of whole machine:13500kg
Technical Features
1.The assembled single-grouser tracks are equipped to ensure better adhesion performance and trafficability.
2.The U-blade equipped on SD13U bulldozer is capable of motions in six directions (lifting, lowering, vertical tilting, and lateral titling).
3.It can complete the digging, handling, landfill, and modeling operations of earthworks and can be used for the engineering constructions and daily maintenances of complicated terrains (such as golf courses and fairgrounds) and the engineering operations for environment management and river embankment trimming and maintenances.
Performance Parameters
| Length × width × height (mm) (excluding ripper) | 5500×3185×2950 | Operating weight (t) (excluding ripper) | 13.5 |
| Engine model | SC8D143G2B1 | Net power/rated speed (kW/rpm) | 95.5/1900 |
| Ground pressure(Mpa) | 0.042 | Blade type | U-blade |
| Blade capacity(m3) | 3.25 |
