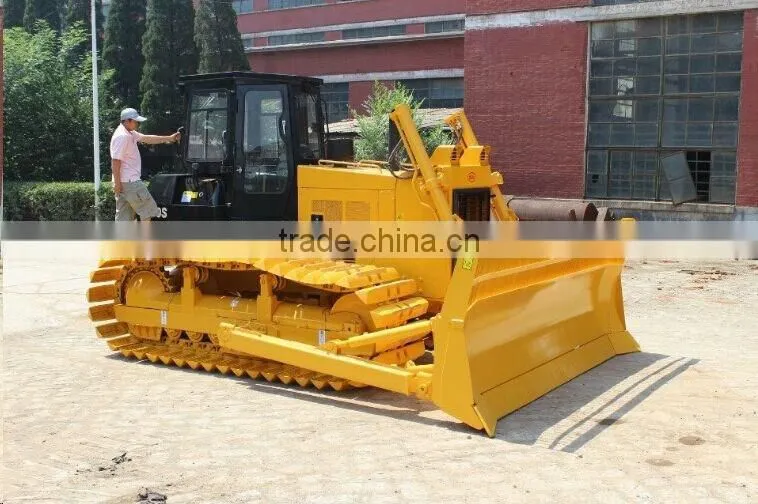

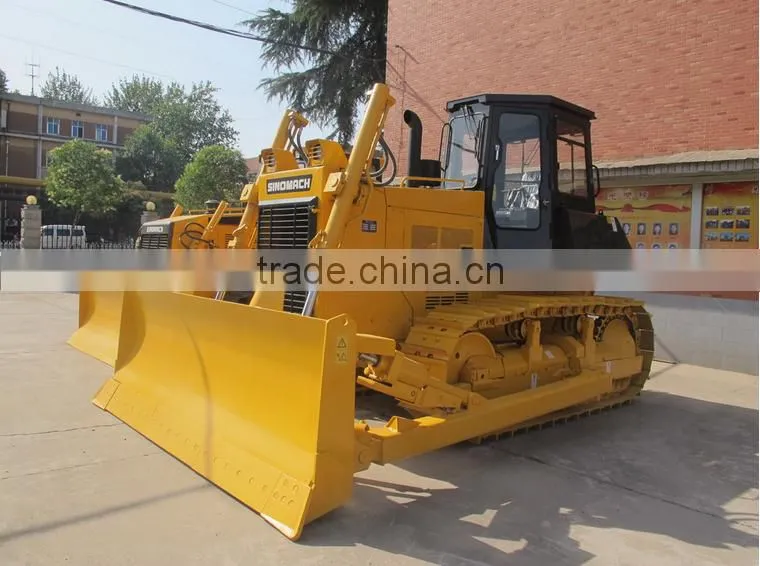

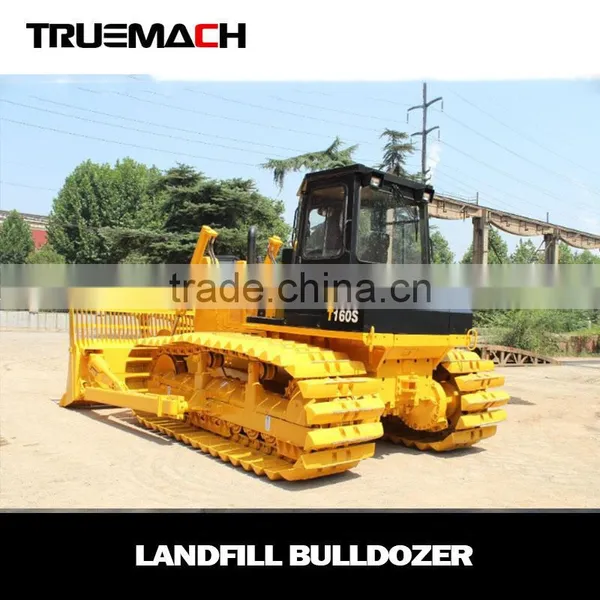

T160S wetland swamp bulldozer
Application:
Refuse land or similar wet earth land places.
|
T160S bulldozer features:
1.The crawler bulldozer is equipped with new WD10G178E25 super charged diesel engine with optimum power reservation coefficient, low oil consumption and high reliability.
2.The transmission system uses wet main clutch and F5+R4 mechanical shift gear box,which gives full play to the mechanical efficiency.
3.The steering system and braking system are controlled by hydraulic power. The shovel blade is controlled by operating lever,flexible, safe and reliable.
4.this machine adopts 3-stage air filter,prolong the engine life and reduce the operating costs for the users.
5.choose the imported instrument assembly with higher reliability ,more accurate and intuitive display.
6.Optional working device:straight-tilt shovel and environmentally friendly shovel are also available for user.
Model |
Unit |
T160S |
Total weight |
kg |
18460 |
Max towing force |
KN |
154 |
Engine model |
/ |
WD10G178E25 |
Engine rated power/speed |
kw/r/min |
132/1850 |
Fuel consumption of engine |
g/km.h |
≤210 |
Forward travel speed |
km/h |
Ⅰ-Vgear2.67-11.13 |
Backward travel speed |
km/h |
Ⅰ-IVgear3.48-9.92 |
Track board width |
mm |
950/1100 |
Land pressure |
kpa |
27 |
Overall L*W*H |
mm |
5268*4150*3206 |
Dozer W*H |
mm |
4150*960 |
Blade max lifting height |
mm |
1005 |
Blade max digging depth |
mm |
485 |
Twing equipment/scarifier(optional) |
/ |
swing type |
|
|
|
|
We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us.
During the warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare parts in normal operation according to the machine manual.
The defective part will be repaired or replaced free of charge at our discretion.
1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and
maintenance training in our factory.
2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.
3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer
best sea freight fee and responsible for detail treatment to goods.
4) Operation manual in English provided.If you need other language manual,we can provide you based on adding
little cost.
5) We prepare free spare parts in a toolbox for customer for emergency use.
6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.
And give the best service timely.
7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for
the machine till it reject.
