 l  Technical Specification:

1.  Coil material specification:

(1) Materials of Coiled Plate: Carbon steel,GI, Hot rolled plate/Cold rolled plate,Aluminum Steel

(2) Thickness of Coiled Plate: 0.5-3.0 mm

(3) Width of Coiled Plate: 400mm-1300 mm

(4) Slitting length: 300mm~2500mm

(5) Coil Inner Diameter: Φ508mm

(6) Coil Outer Diameter: Φ1500 mm

(7) Max. Weight of Coiled Plate: 10 T

2.  Other specification:

(1) Slitting Speed: 0-30 M/min

(2) Power supply: 380V/50Hz/3Ph

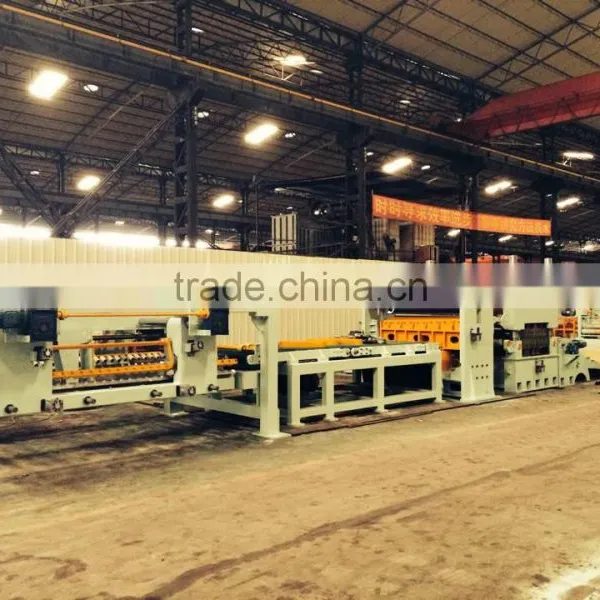

 l   Main composition:

1. Hydraulic expanding decoiler                                   1set

2. Slitting machine                                                       1set

3. Simple stacker                                                           1 set

4. Hydraulic system                                                      1set

 l   Specification:

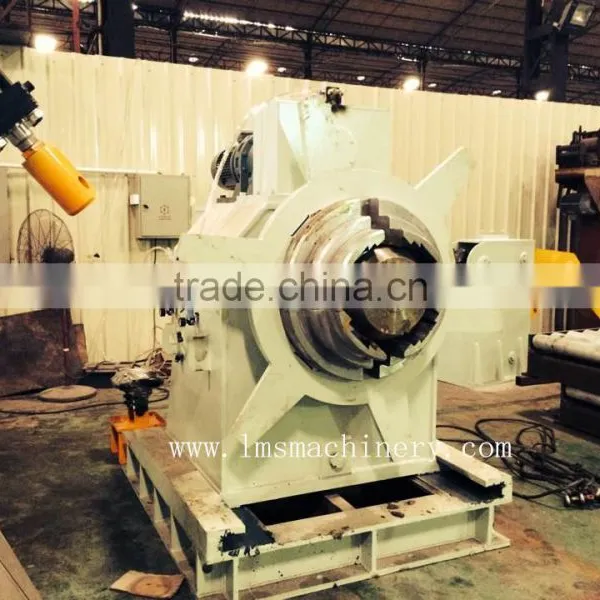

 1. Hydraulic expanding decoiler:

(1) Main structure: it is composed of steel plate, four pieces arc panel, slider, main shaft, side plate, bearing and bearing base etc.

(2) Expansion diameter: Φ460mm~Φ520mm

(3) Loading capacity: 10T

(4) Push-pull swell-shrink core shaft, hydraulic cylinders:FA-Φ150mm

(5) Electronic Motor: Material feeding return, 7.5 KW cycloid needle motor with frequency converter

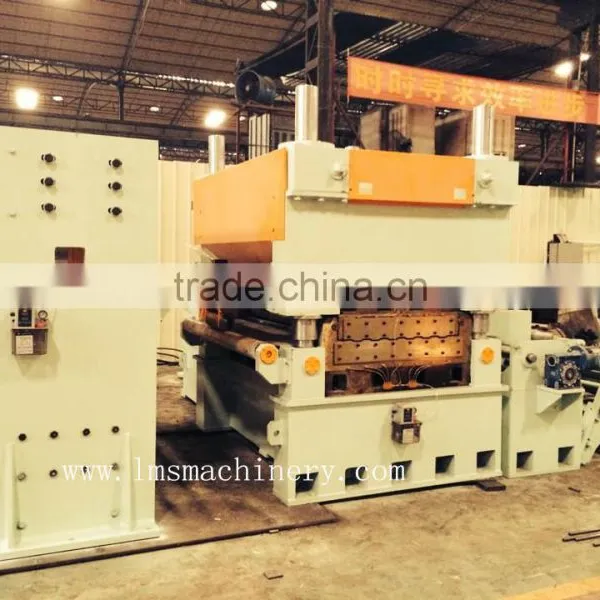

2.  Slitting machine:

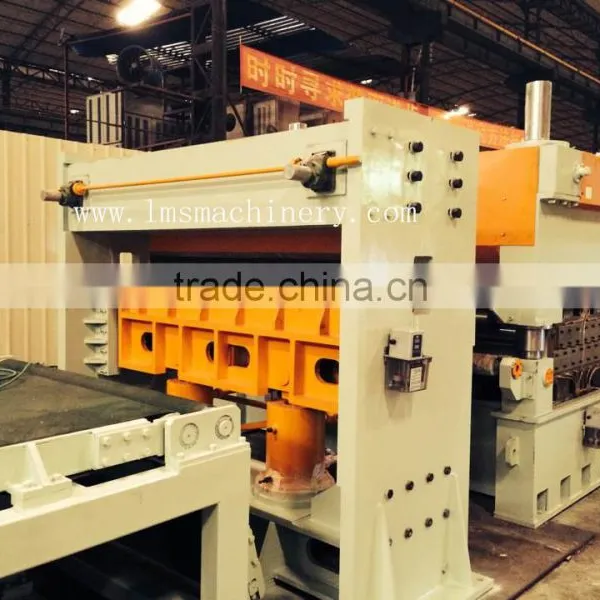

(1) Main structure: Servo controlled set-to-length, hydraulic shearer, 22KW servo motor, precision gear box,

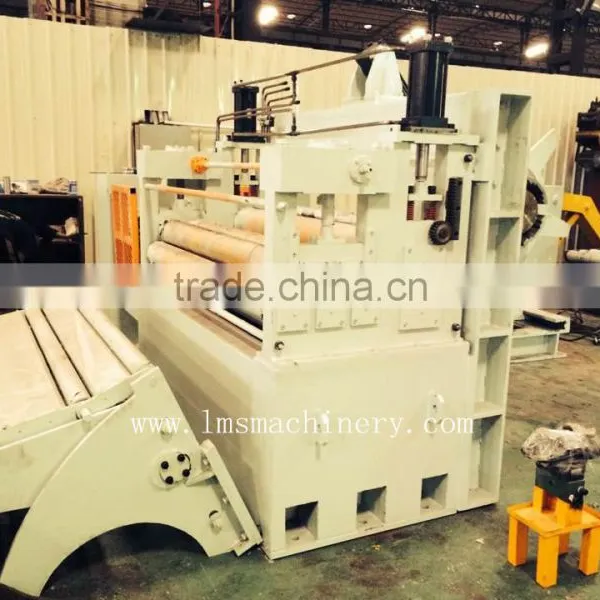

(2) Servo controlled set-to-length: PLC Set-to-length,240mm×128mmLC interface, CNC motion controller, 0m/min~35m/min feeding speed, 2 feeding rollers, 15 leveling rollers,

(3) Hydraulic shearer: 4 sides, Cr12MoV material, HRC60±1ºhardness, hydraulic, hydraulic cylinders: FA-Φ100mm (2 set)

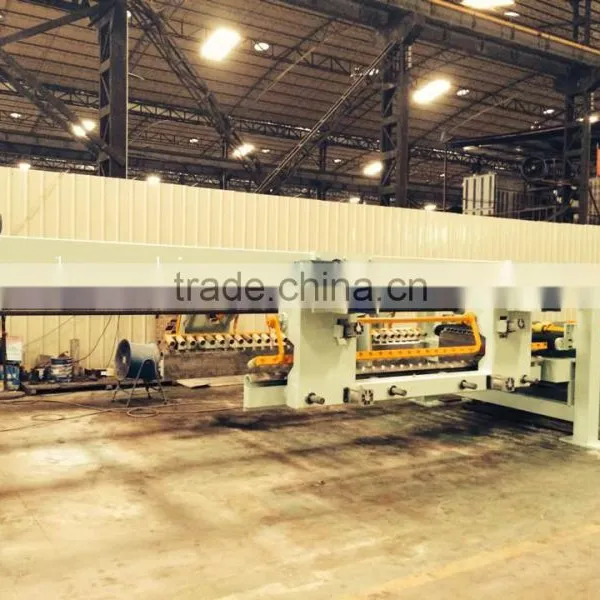

3. Simple stacker

(1) Welded rectangle steel

(2) Pneumatic stacking

(3) Stacking length: 3000mm

4.  Hydraulic system

(1) Main structure: it is composed of steel plate,

(2) Force: E-class 15KW motor vane pump, volume: 30ML, normal pressure: 70kg/cm2, max pressure: 140kg/cm.

5.  Electronic control system

(1) 3 phase 5 lines 380V, fluctuation within:+/-10%,control power supply: AC 220V

(2) Centralized control

(3) PLC & servo: domestic products, detecting element: Autonics,

         Text display: Autoview, Other components: domestic products

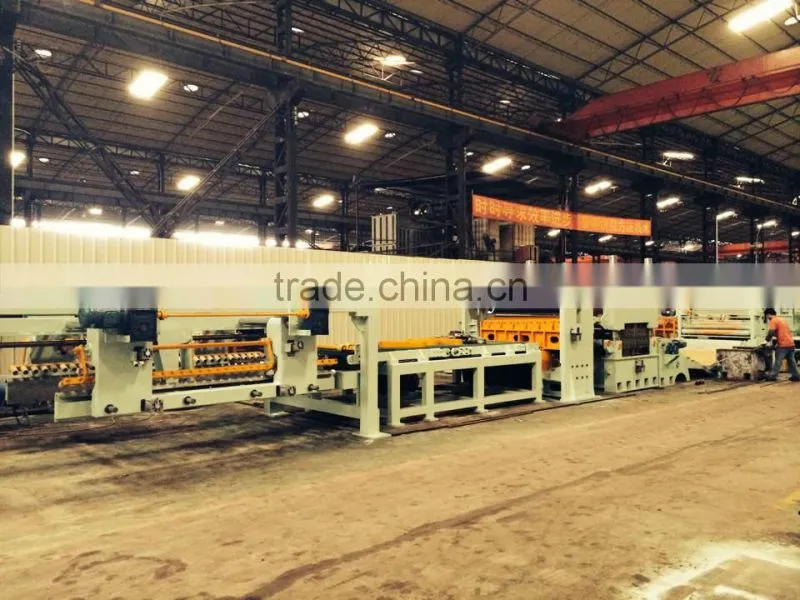

LMS 2015  Cut-to-length line
