 LMS Slitting Line(0.3-3.0mm x 1300mm)

l  Main Specifications

1.   Coil material specification:

Materials of Coiled Plate: carbon steel

Thickness of Coiled Plate: 0.3-3.0 mm

Width of Coiled Plate: 500-1250 mm

Coil Inner Diameter: feeding Φ460mm-Φ520mm, output Φ480mm-Φ508mm

Coil Outer Diameter: Φ1500 mm

Max. Weight of Coiled Plate: 10T

2.  Other specification:

Slitting Speed: 0-80 M/min

Power supply: 380V/50Hz/3Ph

l  Work flow

l  Main composition

 1. Manual decoiler                                                       1set

 2. Slitting machine                                                         1set

 3. Looping bridge                                                        1set

 4. Tension station                                                          1set

 5. Recoiler                                                                    1set

 6. Electronic control system                                             1set

 7. Supplied Accessorie                                                 1 set

l  Specifications

1. Manual decoiler

(1)  Main structure: it is composed of steel plate, four pieces arc panel, slider, main shaft, side plate, bearing and bearing base etc

(2)  Expansion diameter: Φ460mm~Φ520mmx1300mm

(3)  Loading capacity: 10Tons

(4) Electronic Motor : Material feeding return, 7.5 KW cycloid needle motor with frequency converter

 2. Slitting machine

(1)  Main structure: steel plate, casting, synchronous gear box, universal joint transmission, manual lifting device

(2)  Blade shaft material: 40Cr, Blade shaft diameter: Φ160mm×1300mm, Quenched and tempered high frequency, Grinding, hard chromium plating, keyway 20 mm

(3)  Blade diameter: Φ280mm

(4)  Blade shaft lock: blade locked by screw nut

(5)  Knife sharpen bearing: 1set

(6)  Knife holder moving, hydraulic in and out, blade shaft lift and motor synchronizing

(7)  Manual side guide wheel

(8)  Shear motor: DC30KW with frequency converter

 3. Looping bridge

(1)  Welded steel plate

(2)  Pneumatic up and down

4. Tension station

(1)  Welding by steel plate, clamp felted wool between up and down steel

(2)  Create tension by pneumatic pressing

 5. Recoiler

(1)  Main structure: it is composed of steel plate, four pieces arc panel, slider, main shaft, side plate, bearing and bearing base etc

(2)  Expansion diameter: Φ480mm~Φ508mmx1300mm

(3)  Loading capacity: 10Tons

(4)  Motor 45 KW with frequency converter, box reducer, Winding pressure arm Φ 80 mm pneumatic up and down

6. Electronic control system

(1)  3 phase 5 lines 380V, fluctuation within:+/-10%,control power supply: AC 220V and DC 24V

(2)  One main operation table

(3)  Electronic components: Domestic famous brand

 7. Supplied Accessorie

(1)  Receiving spacers: 20pcs

(2)  Tension spacers: 20 pcs

(3)  Receiving muon:100pcs

(4)  Tension muon 100 pcs.

(5)  Machine installation map

(6)  Production flow sketch

(7)  Electronic circulate and electronic equipped lay out

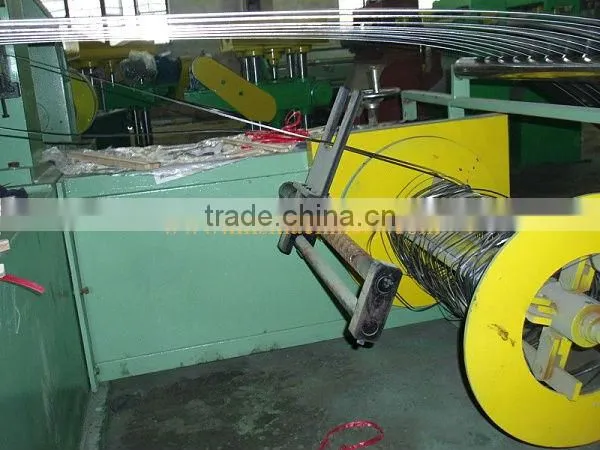

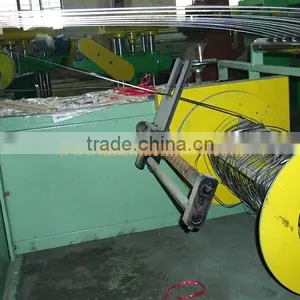

 l   Picture

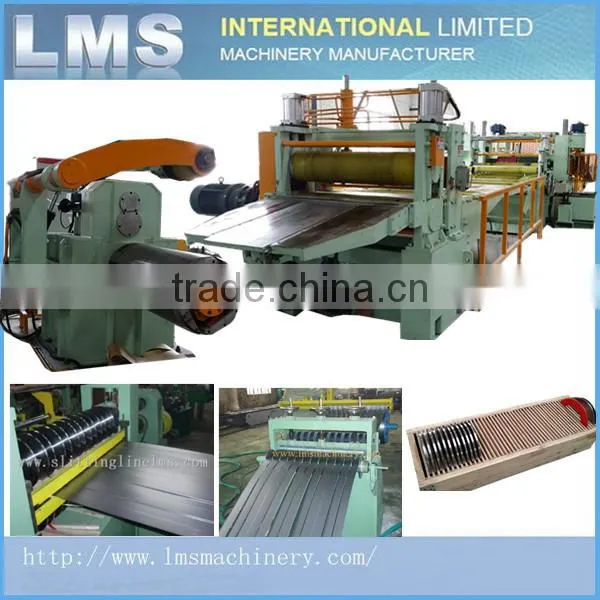

  LMS Slitting Line(0.3-3.0mm x 1300mm)
