High Quality Slitting Line / Uncoiling machine for Steel Coil
Machine Capacity and technical parameter:
auto slitting machine
Suitable material: Alu alloy 1100 /3003/ 3005/3105/ 5005
Material thickness: 0.2-1.0mm
Material width: 1500mm
Inner diameter of coil (incoming ): Φ460mm-Φ520mm( hand manual expansion decoiler)
(Output): Φ480-508mm (hand manual expansion recoiler)
Outer diameter of coil(max) Φ1500mm
Weight of coil: max 10MT for incoming material and out put product.
Slitting speed: 80M/Min
Width tolerance: ±0.02mm
Equipment power source: 380V/50Hz/3 phase

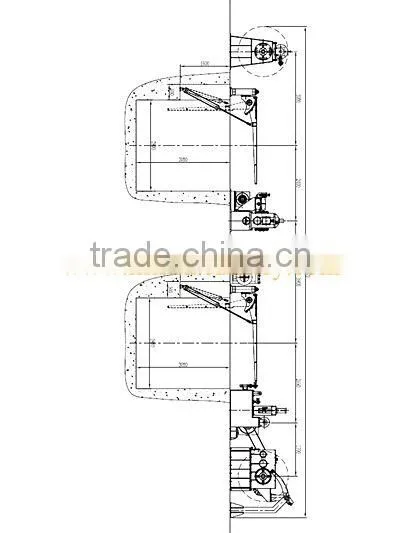

Composition
auto slitting machine

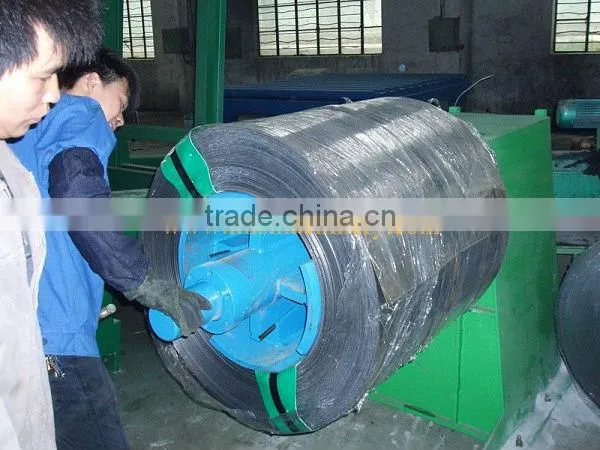

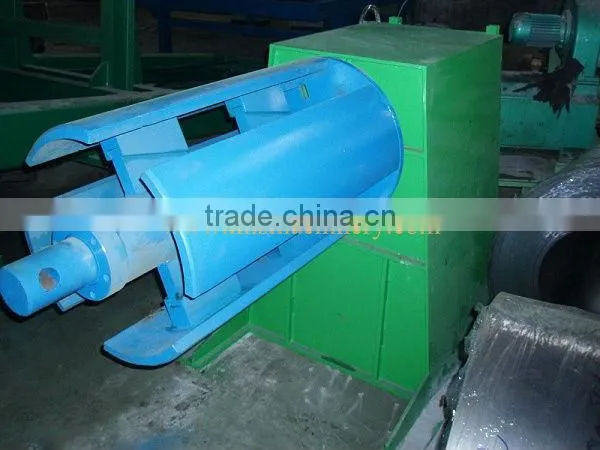

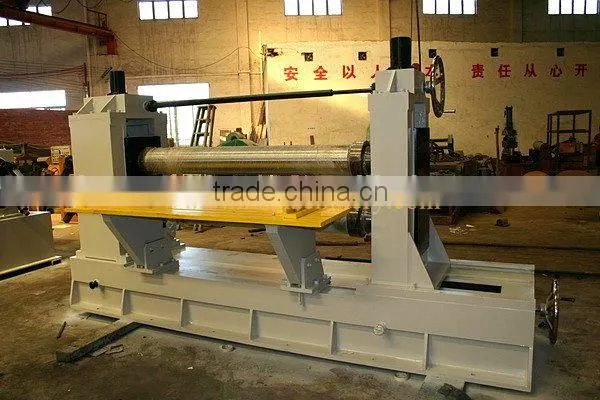

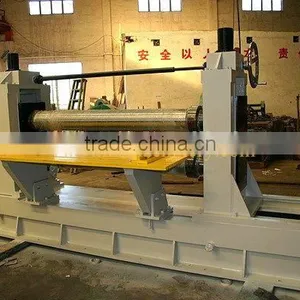

1) Hand manual expansion decoiler: The frame is welding by steel, four pieces arc plate, slider, main shaft, side plate, bearing, bearing base. Expansion diameter: Ø460mm- Ø520X1600mm,loading: 10MT, equip with 5.5KW cycloidal-pin speed adjustable motor, motor- driven uncoil ,with support stand
auto slitting machine
2) Loop bridge
- Main structure: it is welding by steel plate.
- Pneumatic for up and down

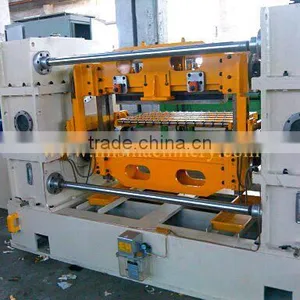

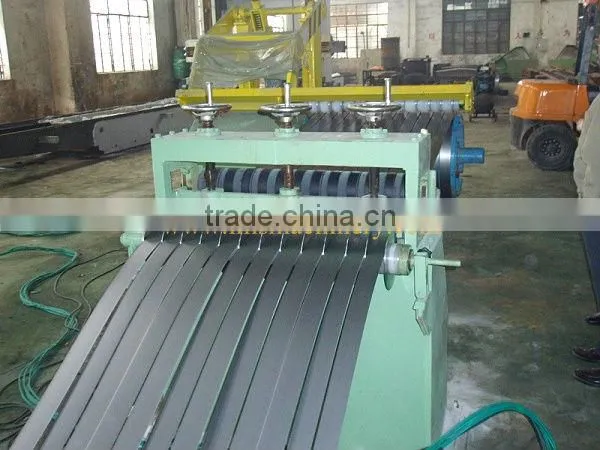

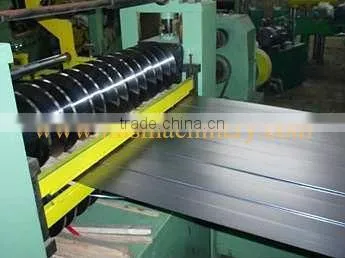

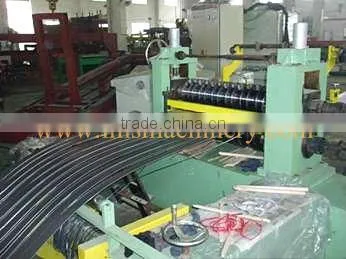

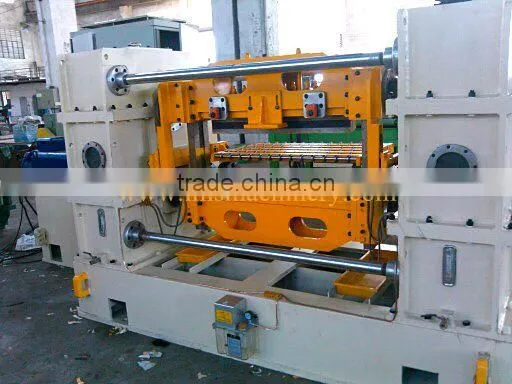

3) Slitting machine (1 set)
auto slitting machine
(1) Main structure: machine frame is welding by steel plate, casting base,synchronous precision gear box, universal joint transmission, synchronous device. Hand manual lifting device.etc.
(2) Material of blade axes: 40Cr.Φ160mmx1600mm,tempering, high frequency treatment, precision process then chroming.
(3) diameter of blade: Ø280mm
(4) The blade axes lock tighten, then the nut lock the blade tooling.

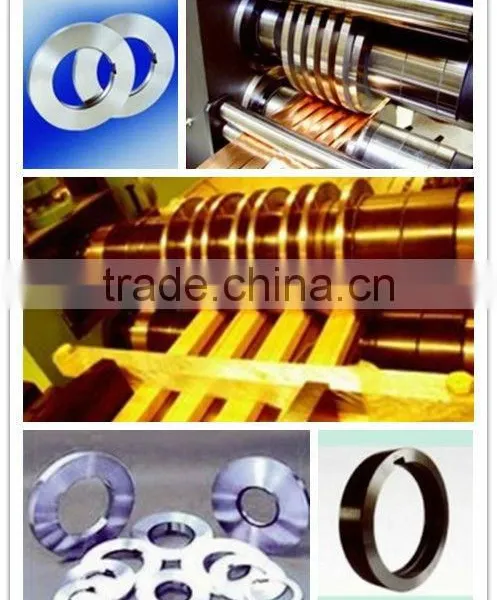

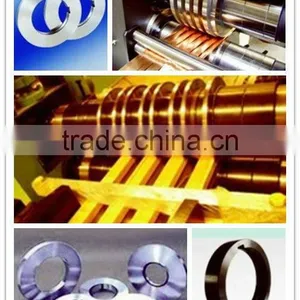

(5) The tool set
(6) Hand manual side guiding wheel
(7) 37KW speed adjustable motor
(8) Grinding blade axes: one
auto slitting machine

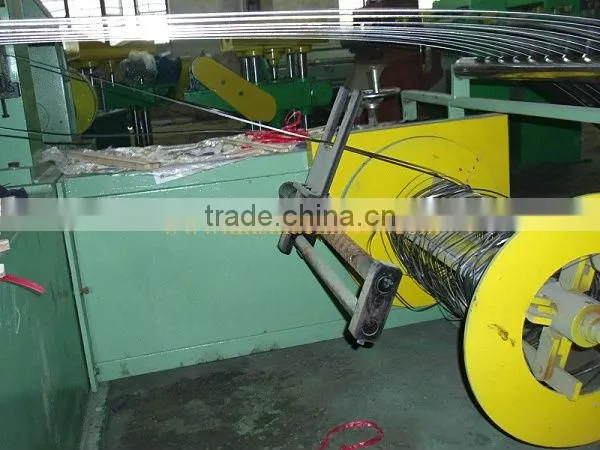

4) Scrap rewinder
(1) Main structure: it is welding by steel plate.
(2) Rewind in both sides, with expansion. Auto lining, equip with motor to drive.
auto slitting machine
5) Tension station
It is welding by steel plate, use the upper and lower steel plate and felted wool to clamp tighten. Many kinds plates protection structure. The air pressing down to make tension force to make sure recoil tighten and clear up.
auto slitting machine

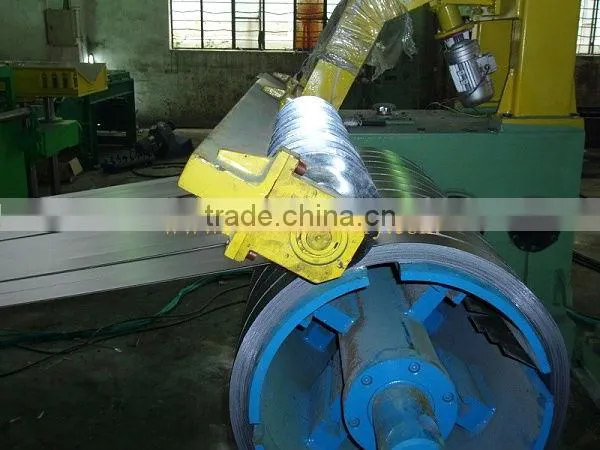

6) Hand manual expansion recoiler
It is welding by box- style. Ø 480-Ø508mmx1600mm.loading 10MT. 55kw speed adjustable motor. Box speed reducer, recoiler pressing arm Ø80mm, motor-driven for lifting.
auto slitting machine
7) Electronic control system
Adopt to 3 phase 380V power supply. Voltage fluctuation: within ±10%. Control voltage.
One main controlled operation table
Component equipped:
Speed transducer: superior brand products in domestic market
Button: superior brand products in domestic market.
Others: superior brand products in domestic market
8) Accessory
auto slitting machine
Deliver time
90 days after received your 30% down payment in advance
Payment term
The 30% pay by T/T in deposit, 70% remaining payable by T/T before shipment.
