Specifications
Automatic staineless steel pipe making machineHigh quality with good price
Best after-sell service

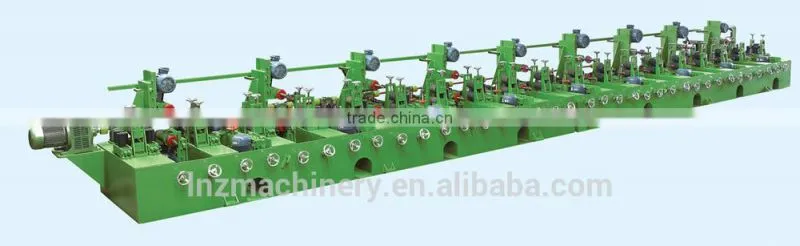

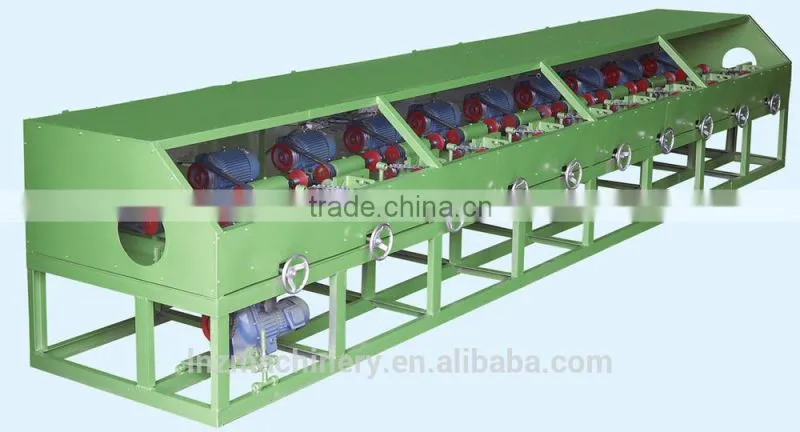

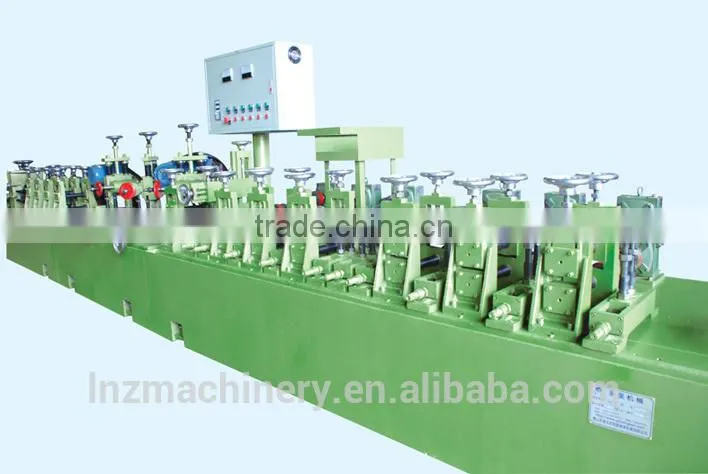

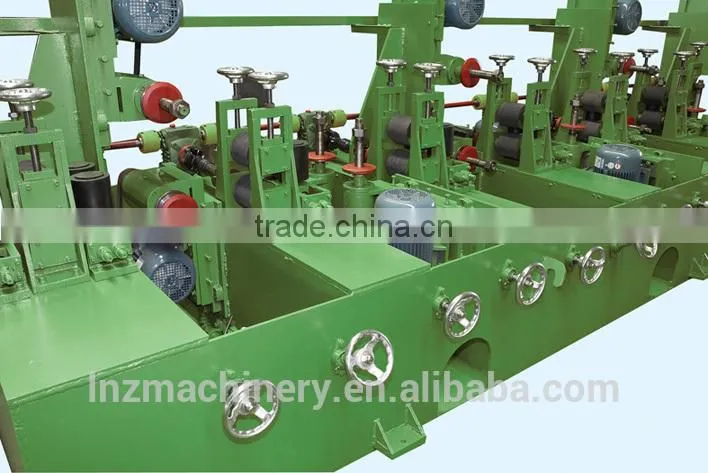

Automatic staineless steel pipe making machine
40 (ENLARGED)pipe making machine Parameters | |
Main motor: |
11KW |
Main shaft: |
40,40Cr HF & thermal |
vertical shaft: |
25,45# straightening treatment |
Wheelhead motor: |
3KW,rotate speed:2800 rotates/min,inner diameter:25 |
Vertical Board: |
Material:HT200 |
Bearings: |
6207 double bearing |
Gap: |
260mm
|
Horizontal Board:material: |
HT200 |
|
|
Wheelhead: |
3 NOS |
Straightening frame: |
2 NOS |
|
Straightening frame shaft diameter: Wheelhead screw rod material is stainless steel , guide rollers with dust cover . |
30 |
Decoiler: |
Mini:diameter400,Max.:520 |
Width |
≤200mm, |
Outer diameter: |
diameter1800; |
Coil weight: |
≤3.0 T, manual pattern. |
|
Cutting station use AC315 body pneumatic metal saws
|
|
Stacking: |
Auto electric control |
|
|
Main machine composition: |
|
Forming part: |
7 Groups horizontal mould base, 11 groups vertical mould base; |
Grinding part: |
2 groups vertical mould base, 3 groups Grinding mould base; |
Sizing part: |
4 groups horizontal mould base, 5groups vertical mould base, |
straightening frame: |
2groups |
|
|
Gear Box: |
WSD80,wormandwheel |
Working capacity: |
Diameter19~63mm |
Thickness: |
0.25-2.0mm |
Working speed: |
15meters/min |
|
|
Machine main board: |
S22mm, |
side board: |
S8mm |
Accessories: |
Tubes,wheelhead baffle |
VVHVHVHVVVHVHVHVVH QVQVQ HVHVHVHTH1V |
(V:side mould base,H: Horizontal mould base; Q:Grinding,TH:straightening) |
standard package before shipping
One year
Depend on buyer
Engineer can be sent to buyer's workshop the machine instation and operation .
