High Frequency Pipe Making Machinery

High Frequency Pipe Making Machinery thumbnail-1
High Frequency Pipe Making Machinery thumbnail-2
High Frequency Pipe Making Machinery thumbnail-3

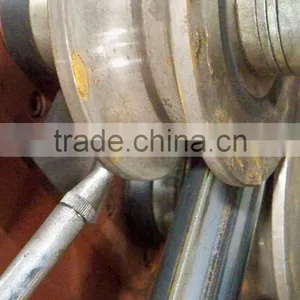

High Frequency Pipe Making Machinery thumbnail-4
High Frequency Pipe Making Machinery thumbnail-5
High Frequency Pipe Making Machinery thumbnail-6
High Frequency Pipe Making Machinery photo-1
High Frequency Pipe Making Machinery photo-2
High Frequency Pipe Making Machinery photo-3
High Frequency Pipe Making Machinery photo-4
High Frequency Pipe Making Machinery photo-5
High Frequency Pipe Making Machinery photo-6
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LMS
Model Number:
HG50
Contact Supplier Request Quote Chat Now
Guangzhou LMS Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LMS
Model Number HG50

Specifications

Pipe making machine
1,Diameter: 13mm -50mm
2,Pipe making:Wall Thickness: 0.8mm 2.0mm
3,Pipe making:Milling Speed: 20 60m/min





   High Frequency Pipe Making machinery



 For this HG50 High Frenquency Pipe Mill, the Capacity:

1. Pipe Diameter: ø13mm ø50mm

2. Wall Thickness: 0.8mm 2.0mm

3. Milling Speed: 20 60m/min

4. Material: Low-carbon steel/Low alloy steel  δs ≤ 345Mpa,δb ≤ 610Mpa

S. No.

Name of Equipment

Quantity

Remark

1

Hydraulic Decoiler

1



2

Cage Accumulator

1



3

Feeding & Flattening

1



4

Roll Forming Machine

1



5

HF Machine

1



6

Burr-Cleaning Device

1



7

Water-Cooling System

1



8

Sizing Device

1



9

Straightening Device

1



10

Main Drive System

1



11

CNC Flying Saw

1



12

Run-out Table

1



 Hydraulic Decoiler

1. Loading Capacity: 1000kg

2. Coil Width: 40 160mm

3. Thickness: 0.8mm 2.0mm

4. Inner Diameter: ø350mm ø550mm

5. Outer Diameter: ø800mm ø1200mm

 Power Supply

1. Equipment Motor Power: 55kw + 4kw +7.5kw=66.5kw

2. Power of HF station: 100kw

  Front Shear and Welding Machine

Ensure the continuous feeding of material

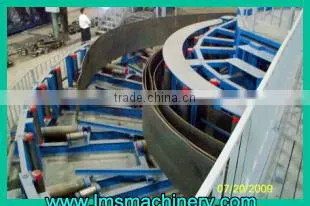

 Cage Accumulator

1. Accumulation Capacity: 150 300mm

2. Feeding Speed: ≥ 150m/min

3. Manual adjusting

4. Motor Power: 4kw

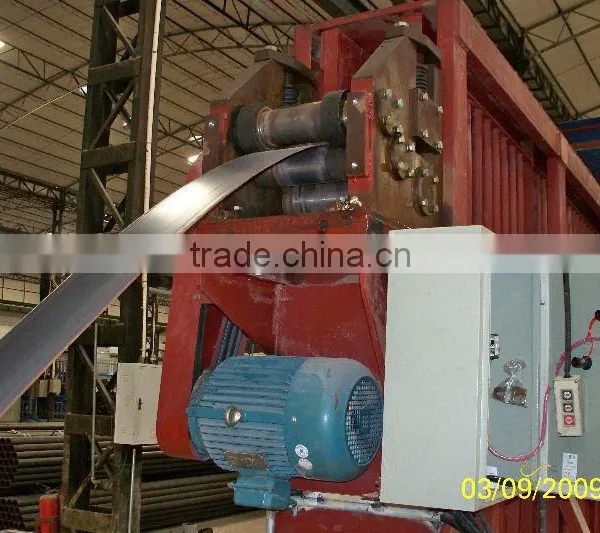

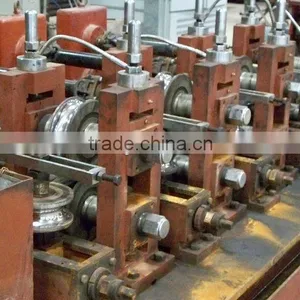

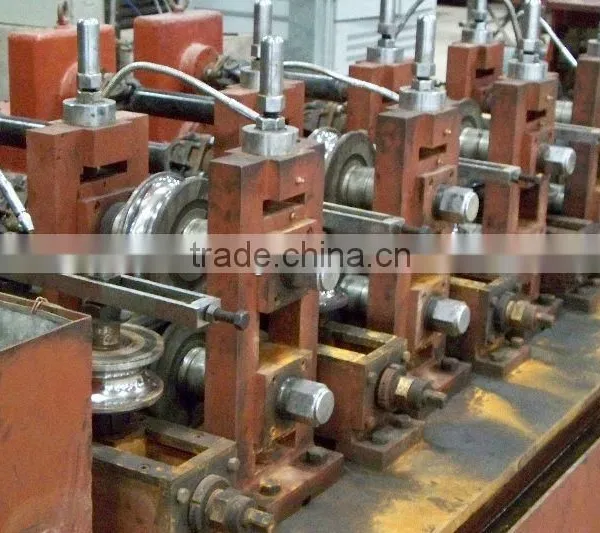

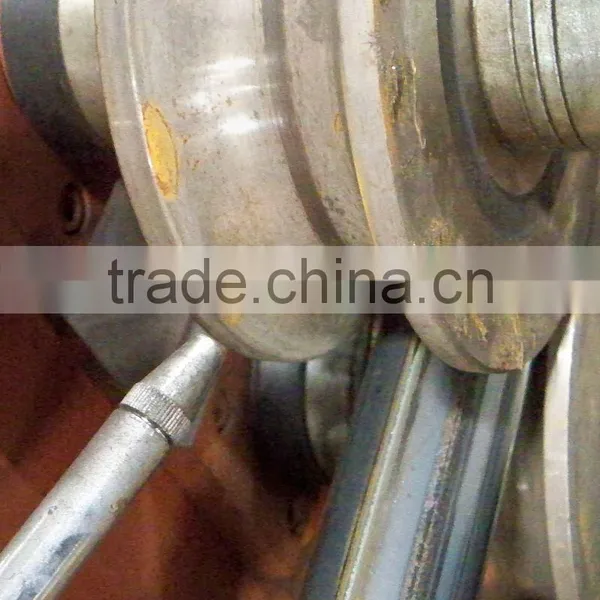

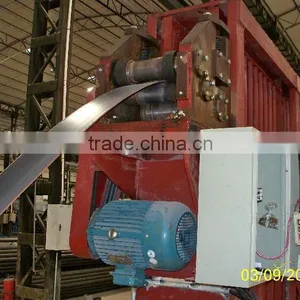

 Feeding & Flattening & Roll Forming Machine

1. Two feeding rollers and five flattening rollers

2. Forming machine

---Horizontal roller station: 7 sets

  Roller Shaft: ø45mm, 40Cr

  Roller Material: 45# steel

---Vertical roller station: 7 sets

  Roller Shaft: ø35mm, 40Cr

  Roller Material: 45# steel

---Drive Gear Box: 4 sets

  Gear: 40CrMnTi and 40Cr, shaft: 40Cr

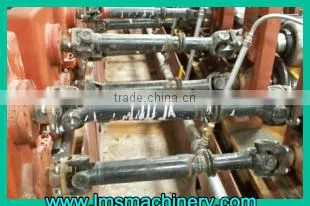

14 sets of transmission shaft

---Extruding and scrap collecting

---Burr-cleaning Device

---Sizing Device

---Straightening Device

Water Cooling System

HF Station

1. Power Supply: 380V/220V, 50HZ

2. Working Power: 100KW

Main Driving System

1. Main Motor: Z4 series, DC 55KW

2. Main Reducer: ZQ500-5.23

CNC Flying Saw

1. Cutting Thickness: 0.8mm 2.0mm

2. Cutting Length: 4 8m

3. Cutting O.D: ø13 ø50mm

4. Cutting Speed: 10-13 cuts/min

5. Cutting Tolerance: ≤ 28mm

6. Motor Power: 5.5 kw, grade 2 AC motor

 High Frequency Pipe Making machineryHigh Frequency Pipe Making machinery

High Frequency Pipe Making machineryHigh Frequency Pipe Making machinery



High Frequency Pipe Making machineryHigh Frequency Pipe Making machinery
