Help Center(ERW) HG114 High Frequency Pipe Making Machine
Related Products
-
High Frequency Pipe Making MachineryUS$ 1,000 - 100,000MOQ: 1 Set -
Stainless Steel Pipe Making MachineNegotiableMOQ: 1 Set
-
HG-50 HIGH-FREQUENCY STRAIGHT SEAM WELDED PIPE MACHINEUS$ 20,000 - 30,000MOQ: 1 Set
-
LMS Spiral Pipe Spiral Duct Machine SuppliersUS$ 20,000 - 30,000MOQ: 1 Set
-
LMS Roll Forming Machine Manufacturers for DuctUS$ 10,000 - 20,000MOQ: 1 Set
Specifications
High Frequency Pipe Making Machine1.Pipe Diameter: 48mm -130mm
2.Wall Thickness: 2.0mm 5.0mm
3. Milling Speed: 20 50m/min

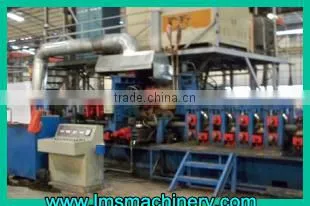

High Frequency Pipe Making Machine
Capacity
1. Pipe Diameter: ø48mm ø130mm
2. Wall Thickness: 2.0mm 5.0mm
3. Milling Speed: 20 50m/min
4. Material: Low-carbon steel/Low alloy steel δs ≤ 345Mpa,δb ≤ 610Mpa
S. No. |
Name of Equipment |
Quantity |
Remark |
1 |
Hydraulic Decoiler |
1 |
|
2 |
Cage Accumulator |
1 |
|
3 |
Feeding & Flattening |
1 |
|
4 |
Roll Forming Machine |
1 |
|
5 |
HF Machine |
1 |
|
6 |
Burr-Cleaning Device |
1 |
|
7 |
Water-Cooling System |
1 |
|
8 |
Sizing Device |
1 |
|
9 |
Straightening Device |
1 |
|
10 |
Main Drive System |
1 |
|
11 |
CNC Flying Saw |
1 |
|
12 |
Run-out Table |
1 |
|
Hydraulic Decoiler
1. Loading Capacity: 4000kg
2. Coil Width: 150 410mm
3. Thickness: 2.0mm 5.0mm
4. Inner Diameter: ø500mm ø700mm
5. Outer Diameter: ø1000mm ø1500mm
Power Supply
1. Equipment Motor Power: 132kw x 2+ 45kw +30kw+30kw=369kw
2. Power of HF station: 400kw
Front Shear and Welding Machine
Ensure the continuous feeding of material

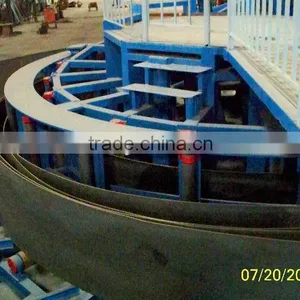

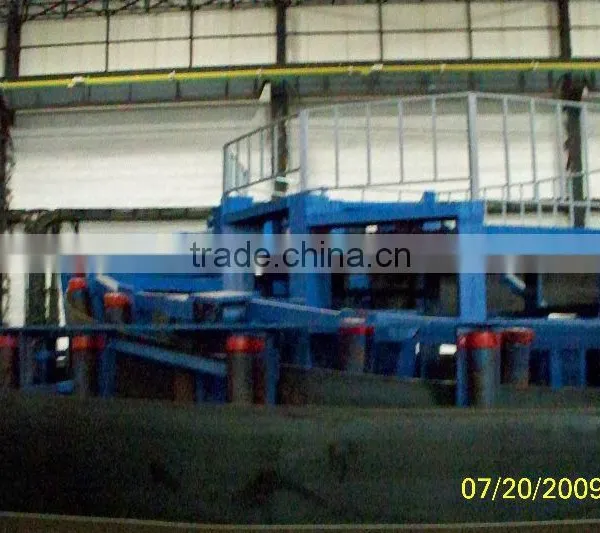

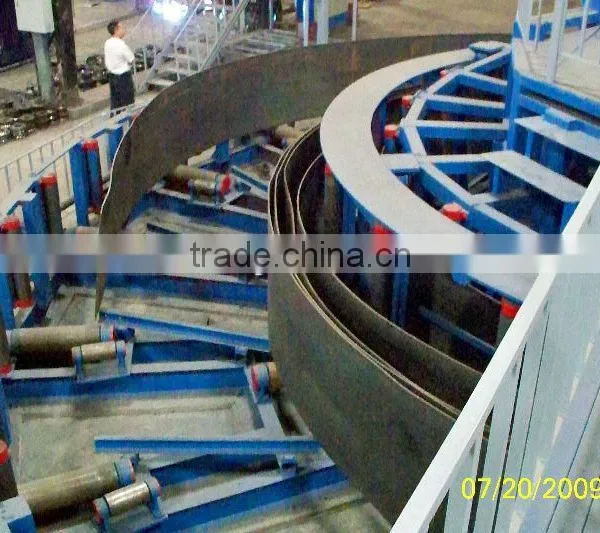

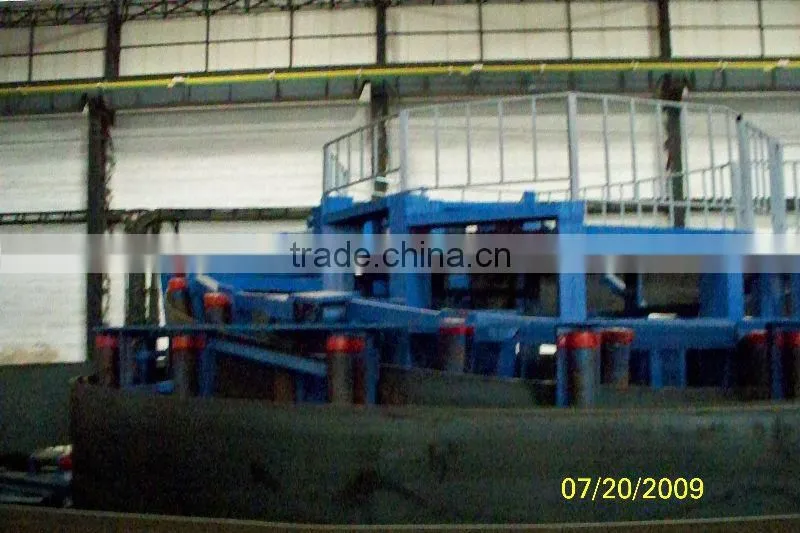

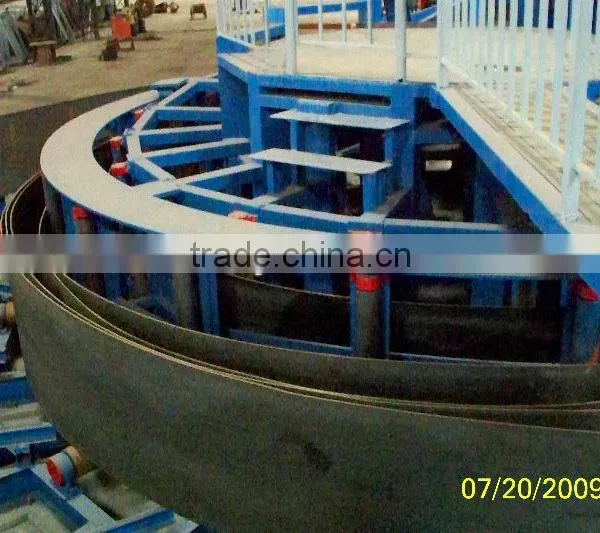

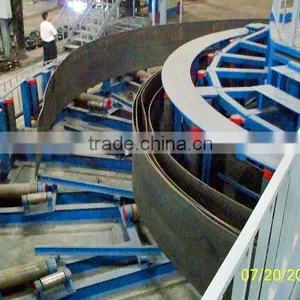

Cage Accumulator
1. Accumulation Capacity: 150 300mm
2. Feeding Speed: ≥ 100m/min
3. Manual adjusting
4. Motor Power: 30kw
Feeding & Flattening & Roll Forming Machine
1. Two feeding rollers and five flattening rollers
2. Forming machine
---Horizontal roller station: 7 sets
Roller Shaft: ø100mm, 40Cr
Roller Material: 45# steel
---Vertical roller station: 9 sets
Roller Shaft: ø60mm, 40Cr
Roller Material: 45# steel
---Drive Gear Box: 7 sets
Gear: 40CrMnTi and 40Cr, shaft: 40Cr
14 sets of transmission shaft
---Extruding and scrap collecting
---Burr-cleaning Device

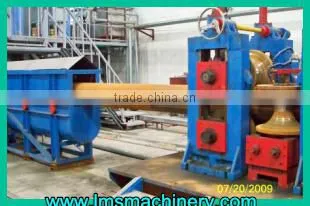

---Sizing Device
---Straightening Device

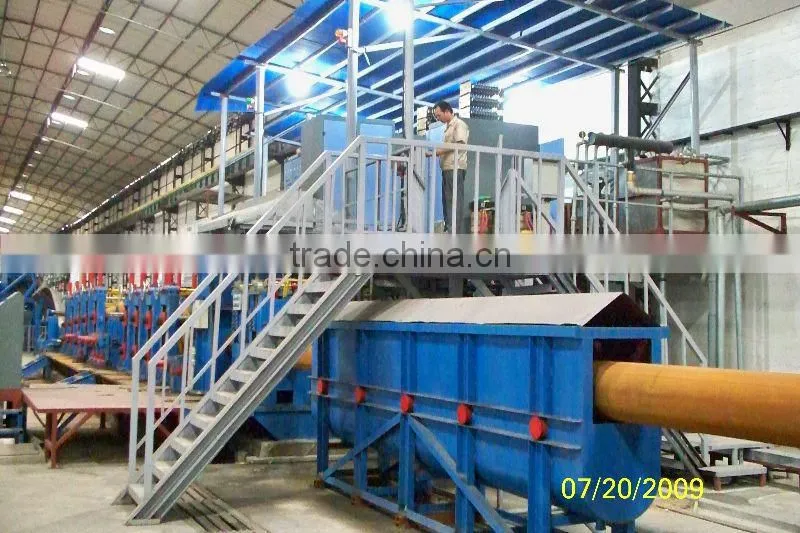

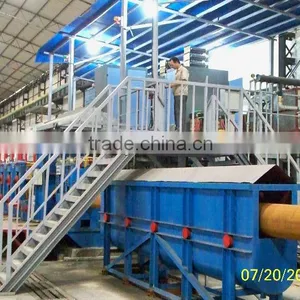

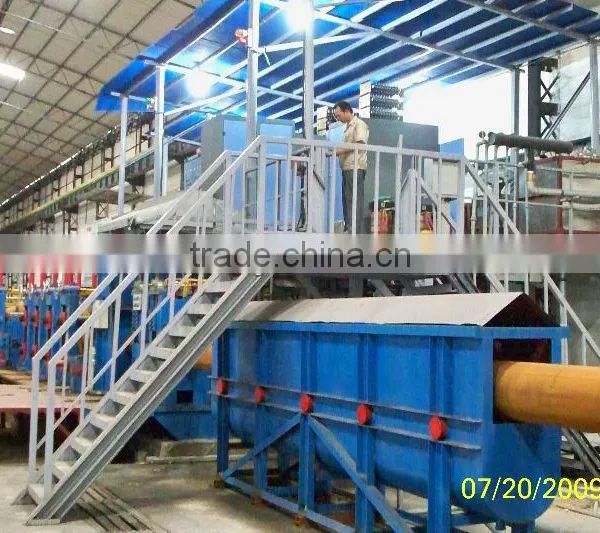

Water Cooling System

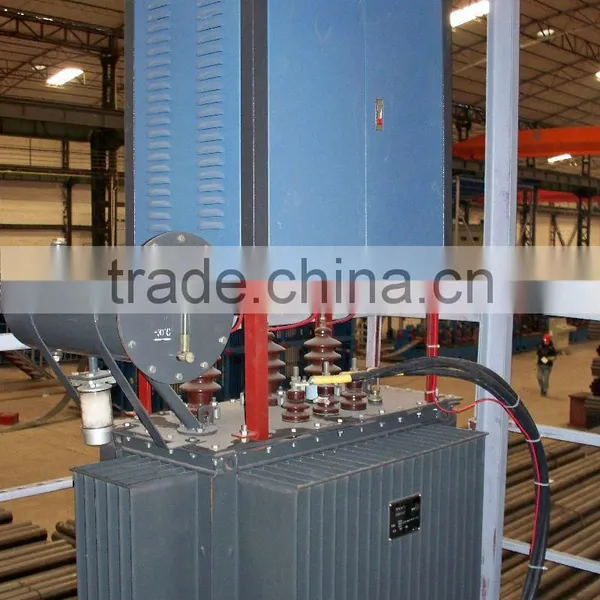

HF Station
1. Power Supply: 380V/220V, 50HZ
2. Working Power: 300KW
Main Driving System
1. Main Motor: Z4 series, DC 132KW
2. Main Reducer: ZQ750-10.35
CNC Flying Saw
1. Cutting Thickness: 2.0mm 5.0mm
2. Cutting Length: 4 8m
3. Cutting O.D: ø48 ø130mm
4. Cutting Speed: 6-8 cuts/min
5. Cutting Tolerance: ≤ 6mm
6. Motor Power: 45 kw, grade 2 AC motor
1. Pre-sell service
Act as the good adviser and assistant of clients enable them to get rich and generous returns on their investments .
1>.Design and manufacture products according to client's profile darwing and special requirements .
2>.Train technical personnel for clients .
2.Services during the sale :
1>.Pre-check and accept products ahead of delivery time .
2>.help clients to draft solving plans
3.After-sale services :
Provide considerate services to minimize clients' worries .
1>. Assist clients to prepare for the first constrcution scheme .
2>.Train the first-line operators .
3>. Examine the equipment .
5>.Take initiative to eliminate the troubles rapidly .
6>. Provide perfect service .
7>.Provide technical exchanging .
If any items get your interest , please send feedback to our email or chat trade manager .
