LMS Iron Pipe Making Machine
LMS International Limited is a Chinese machine manufacturer, specializing in high-frequency Pipe Making Machine, metal- sheet production line etc. Our machine are popular domestically and worldwide in 10 countries, as Southeast Asiam Middle East, America etc.
Machine working flow: steel coil-- decoiling-- cutting& coil head welding--stacking-up of decoiled material- pipe forming--HF welding--remove outside scraps-- cooling-- diameter sizing-- straightening-- flying cutter-- finished welded pipe
This equipment is specially used for producing high-frequency stright seam welded pipe and corresponding square pipe and special-shape pipe. The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted cprrespondingly within suitable range of pipe diameter and wall thickness.
Technical parameter:
| HG16 | HG32 | HG50 | HG76 | HG100 | HG114 | |
| Diameter of welded tubes | 7-16mm | 13-38mm | 16-50mm | 30-76mm | 40-101mm | 60-114mm |
| Thickness of welded tubes | 0.4-1.0mm | 0.6-1.5mm | 0.8-3.0mm | 1.5-4.0mm | 1.5-4.0mm | 2.0-2.5mm |
| Major motor power | 29kw | 45kw | 70kw | 188kw | 325kw | 369kw |
| High frequency power | 60kw | 100kw | 100kw | 300kw | 300kw | 400kw |
| Line speed | 30-90m/min | 30-70m/min | 30-70m/min | 20-50m/min | 20-50m/min | 20-50m/min |

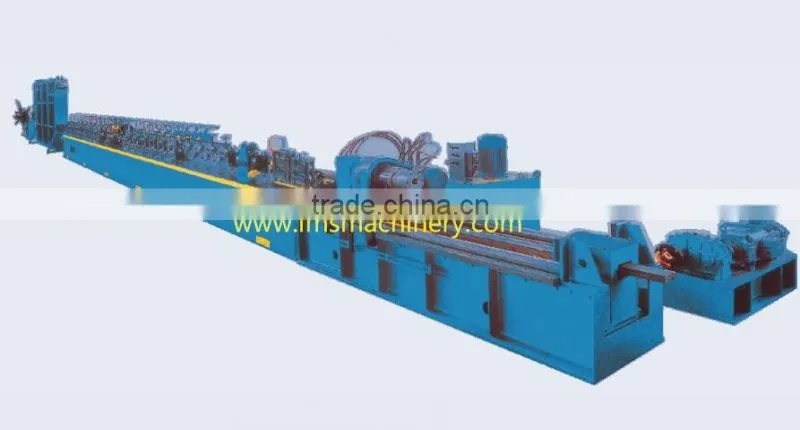

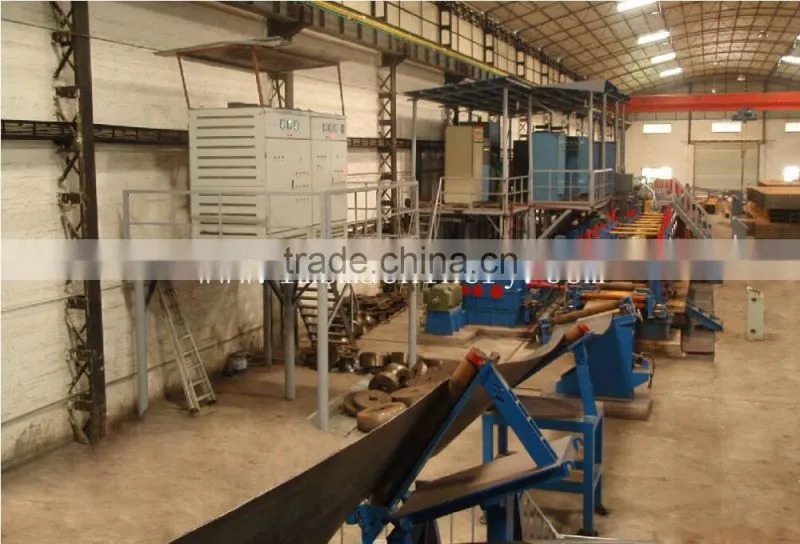

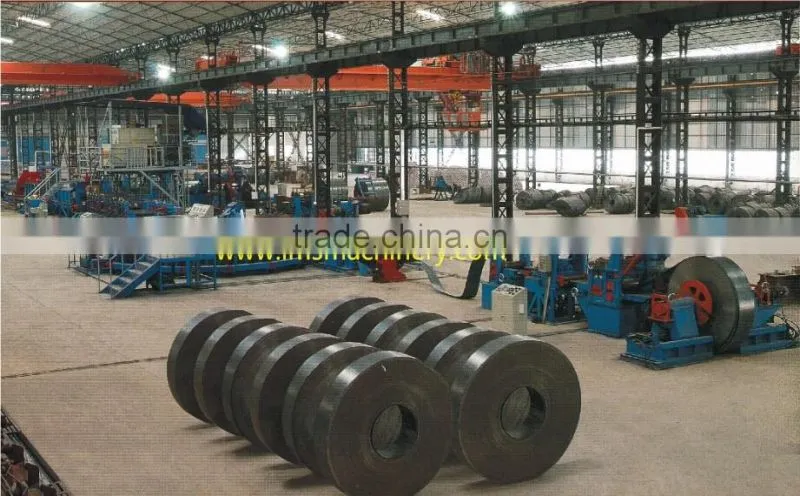

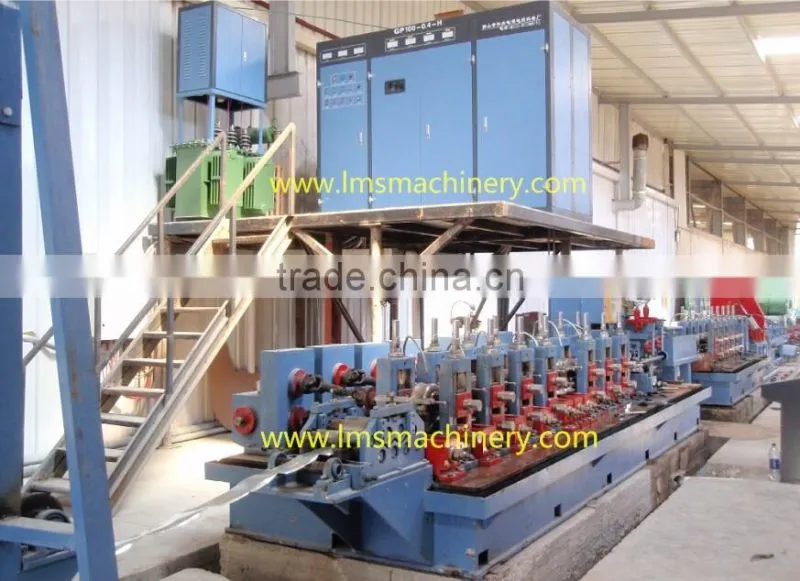

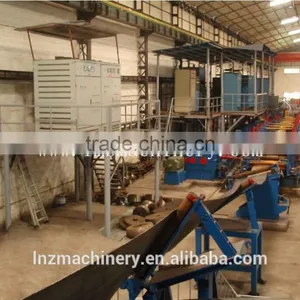

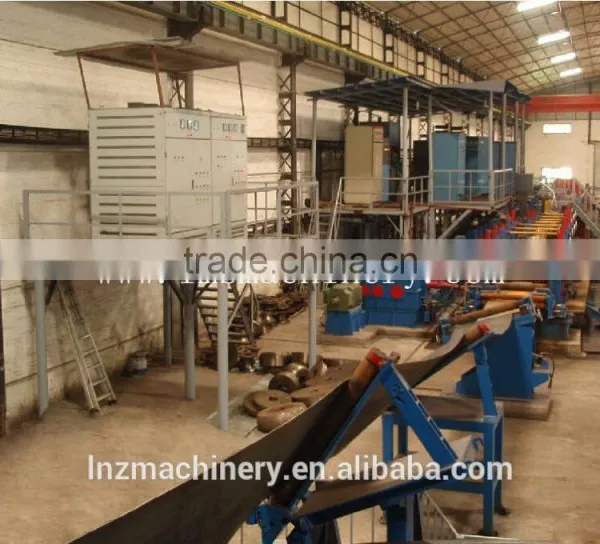

Machine photos:
FAQ
1) Q:What is the Warranty Machine ?
A1: For the roll forming machine , we have 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
2) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
3) Q: How does your factory do regarding quality control?
A: Quality is priority. LMS People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
5) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. LMS is ALIBAB’s Gold
supplier with BV assessment. If you check with ALIBABA, you will see that we have never got anycomplaint from our customers.
How to Visit Our Company?
Fly to GUANGZHOU airport, then we can pick you up.
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!
