LMS Stainess Steel Pipe Making Machine

LMS Stainess Steel Pipe Making Machine photo-1
US$ 130,000 - 130,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Welding Machine
Pipe Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Pipe Welding Machine
Pipe Material Stainless Steel
Application Other
Production Capacity 0-90m/min
Place of Origin Guangdong, China
Brand Name LMS
Model Number HG32/HG50/HG76/HG127
Weight 58000kgs
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

LMS Stainess Steel Pipe Making Machine





 LMS International Limited is a Chinese machine manufacturer, specializing in high-frequency Pipe Making Machine, metal- sheet production line etc. Our machine are popular domestically and worldwide in 10 countries, as Southeast Asiam Middle East, America etc.

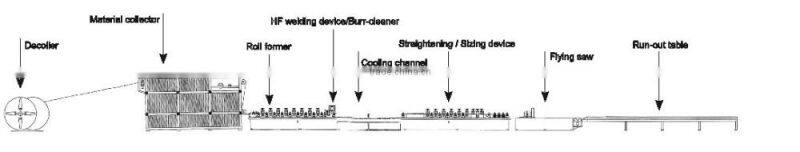

Machine working flow: steel coil-- decoiling-- cutting& coil head welding--stacking-up of decoiled material- pipe forming--HF welding--remove outside scraps-- cooling-- diameter sizing-- straightening-- flying cutter-- finished welded pipe

LMS Stainess Steel Pipe Making Machine

This equipment is specially used for producing high-frequency stright seam welded pipe and corresponding square pipe and special-shape pipe. The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted cprrespondingly within suitable range of pipe diameter and wall thickness.



Technical parameter:



 HG16HG32HG50HG76HG100HG114
Diameter of welded tubes7-16mm13-38mm16-50mm30-76mm40-101mm60-114mm
Thickness of welded tubes0.4-1.0mm0.6-1.5mm0.8-3.0mm1.5-4.0mm1.5-4.0mm2.0-2.5mm
Major motor power29kw45kw70kw188kw325kw369kw
High frequency power60kw100kw100kw300kw300kw400kw
Line speed30-90m/min30-70m/min30-70m/min20-50m/min20-50m/min20-50m/min

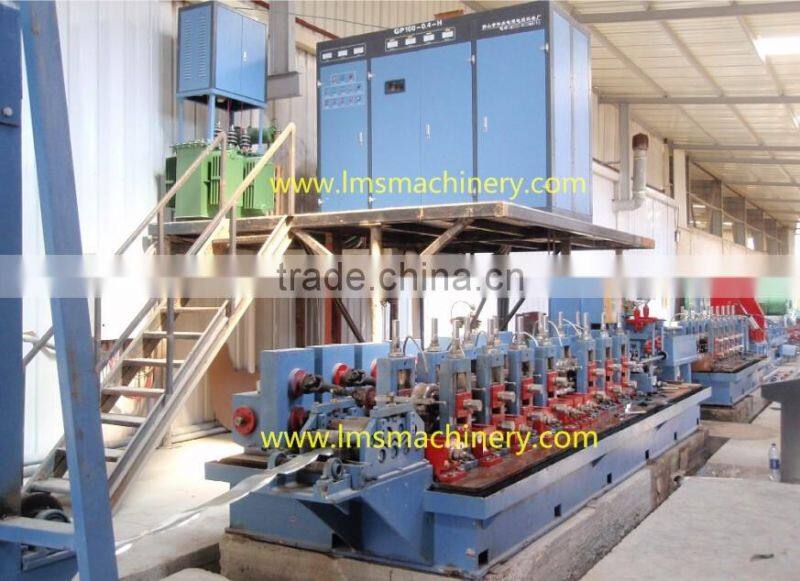

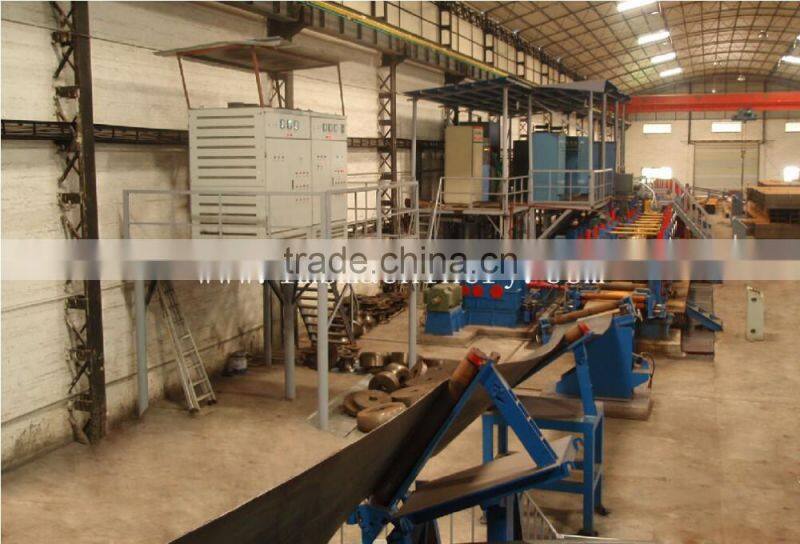

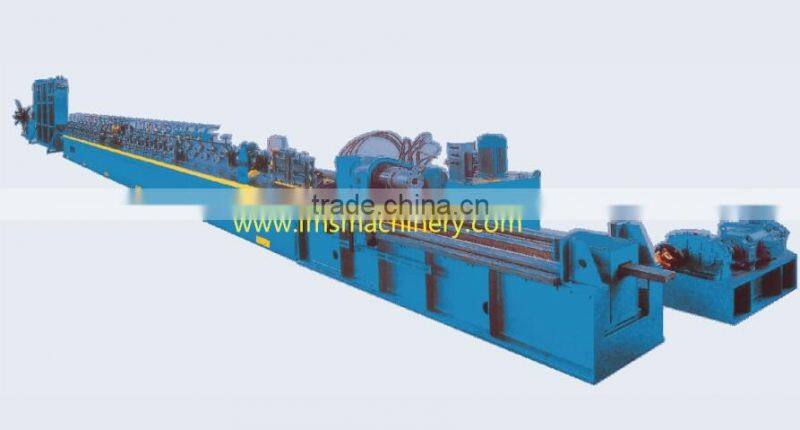

Machine photos:

LMS Stainess Steel Pipe Making Machine



LMS Stainess Steel Pipe Making Machine



LMS Stainess Steel Pipe Making Machine



LMS Stainess Steel Pipe Making Machine



LMS Stainess Steel Pipe Making Machine
