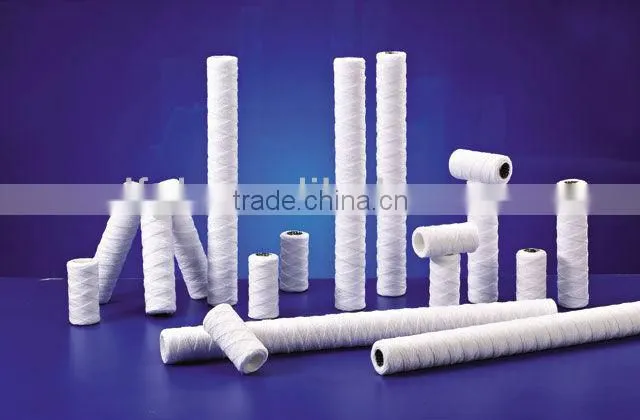

Top-rated String Wound Filter Cartridge for Water Treatment
♦Introduction

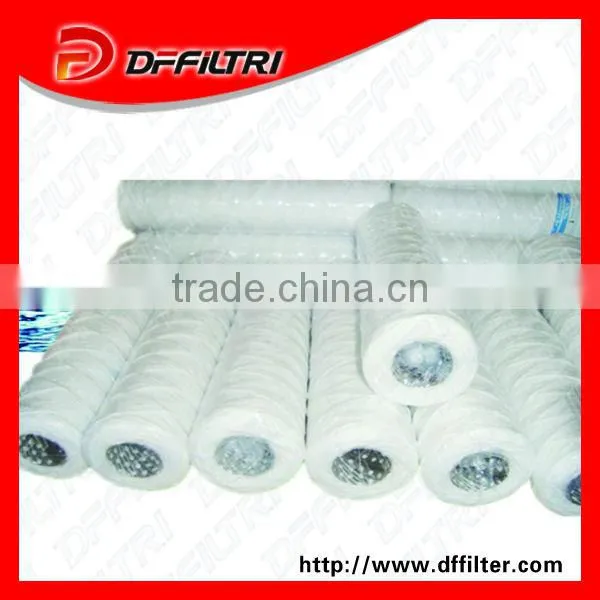

Our string wound filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration
for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility.
The main advantage of the string wound filter cartridge is its exceptionally high structural strength,
therefore, they can withstand severe operating conditions.
1. Features:
♦Fits all the standard housings
♦ Low pressure drop, high dirt holding capacity and long service life
♦ Loose outer layers and tight inner layers offers effective depth filtration
♦ Various filter media fit with various applications
2.Applications
♦ Pre-Filter for drinking water treatment
♦ Acid Base liquid in Chemical Processing
♦ Food & Beverage
♦ Semiconductor
♦ Pharmaceuticals
3.Specifications
♦Filter media: Polypropylene, Bleached cotton
♦Core: PP, Stainless Steel
♦Outside diameter: 63mm,115mm
♦Inner diameter: 28mm, 30mm
♦Length:10”, 20” ,30”, 40”
♦Micron Rating: 1μm,5μm,10μm,20μm, 30μm,50μm, 75μm, 100μm
♦Polypropylene material for non-organic solvent, maximum recommended operating temperature≤60°C
♦Bleached cotton material filter cartridge with stainless core apply to organic solvent, water, oil, alkalinity solvent, beverage, pharmaceuticals,
maximum recommended operating temperature: 120 °C
4.Order Information
DLSW+ Rating+ Length + Material (A PP yarn and PP core)/(B Cotton yarn and SS core)
5.Application
Pre-
Chemical industry: filtration for electroplating solution, acidic or alkaline liquid of chemical processing, organic solvent
Food industry: pre- filtration of beverage, oils, water purifying and water treatment
|
Honour of DFFILTRI ♦ China's Quality Recognized Top Ten Well-known Filter Brand ♦ 19 years OEM Manufacturing Experience
♦ Testing Center-The Committee of Filtration & Separation of China Technology Market Association ♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation Industry Association
|
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
♦Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company’s filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
