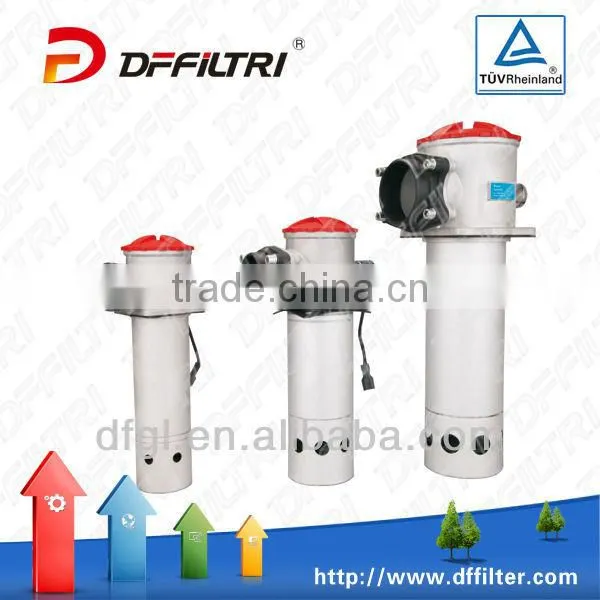

Online Shopping TF-100* Tank Mounted Suction Filter For Industrial Machines

The TF series filters can be installed at the pump suction port, on the top, at the side or in the bottom of the tank, filter bowl is immersed below the level of the tank, the filter head is outside the tank . This filter has there features: novel design, convenient installation, high oil-passing capacity, and small resistance, filter element cleaning and replacement is convenient.

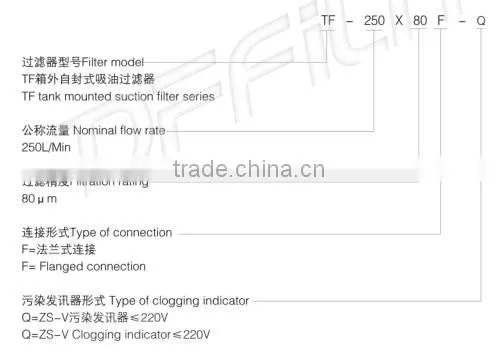

1.Model description

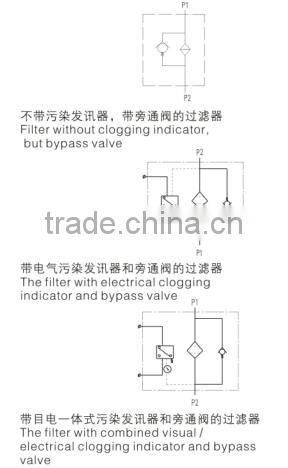

2.Symbols

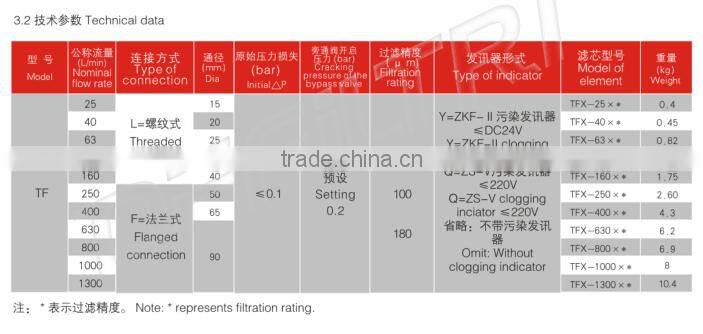

3,Technical Data

DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.

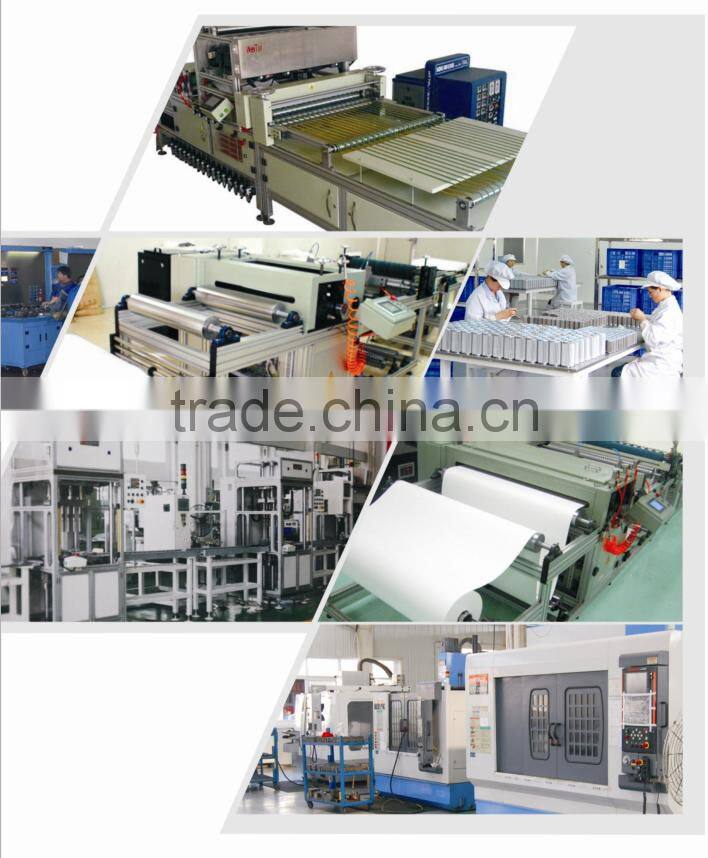

DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's  requirement.
