Stainless Steel Hydraulic Oil Filter XNL160* Hydraulic Tank Mounted Return Line Filter Series

Stainless Steel Hydraulic Oil Filter XNL160* Hydraulic Tank Mounted Return Line Filter Series thumbnail-1
Stainless Steel Hydraulic Oil Filter XNL160* Hydraulic Tank Mounted Return Line Filter Series thumbnail-2
Stainless Steel Hydraulic Oil Filter XNL160* Hydraulic Tank Mounted Return Line Filter Series photo-1
Stainless Steel Hydraulic Oil Filter XNL160* Hydraulic Tank Mounted Return Line Filter Series photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
DFFILTRI
Model Number:
XNL-160*10-L4-H
Contact Supplier Request Quote Chat Now
Xinxiang Dongfeng Filter Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name DFFILTRI
Model Number XNL-160*10-L4-H
After-sales Service Provided Overseas service center available
Product Description
Filtration rating
3~30μm
Model of Element
NLX-250*
Nominal flow rate
250L/min
Seals
Perbunan (= NBR)
Cracking pressure of bypass valve
setting 4
Optional accessories
CYB-I clogging indicator; CY-II clogging indicator
Dia
50mm
Housing material
Flange plate: steel plate
Weight
5.1kg
Brand
DFFILTRI
Nominal pressure
6bar
MOQ
5 Piece
Type of connection
Flanged connection
Price
5-20 PCS USD 25.00
Filter element
Filter medium material ; High strength carbon steel skeleton
Port
Ningbo/Shanghai/Qingdao/Tianjin

Introduction:

      The XNL series return filter is a new type filter.It is used in the return line of hydraulic system to remove all teh contaminants and keep the oil cleaning when the oil return to the tank.This series filter has some features as follow:
     a) it can be installed on the top of tank;
     b) The check valve will not let the oil flow out of the tank during mainten ance the contaminants inside the element can be taken out when changing the element.
     c) there is a by-pass  valve on the top of element , when the pressure drop across the filter element attains 0.4MPa, the valve will open to protect the hydraulic system safety.
     d) the permanent magnets inside the filter can filter the magetic particles above 1 um dia from the oil.
     If you chose XNL series filter, the indicator should be equipped. When the pressure drop across the element reaches 0.35MPa, the element must be replaced.

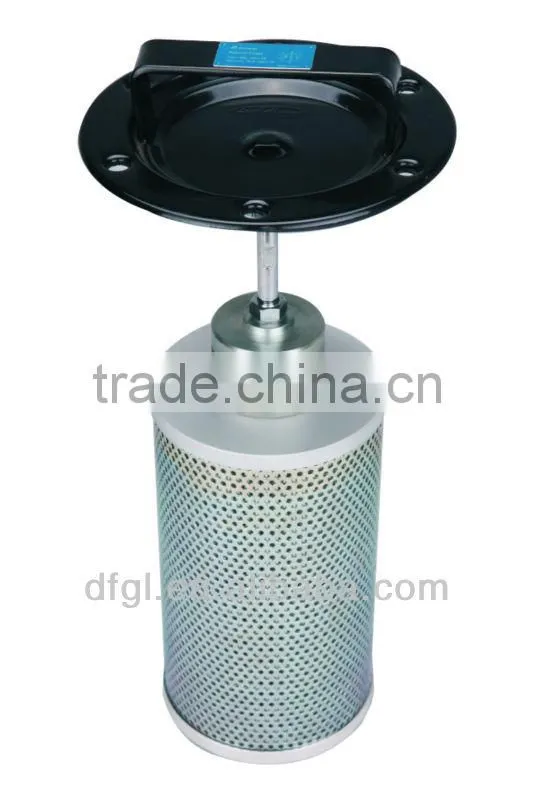

Detailed Images
Other Products
Our Company

            DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
           DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service. On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
           Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
