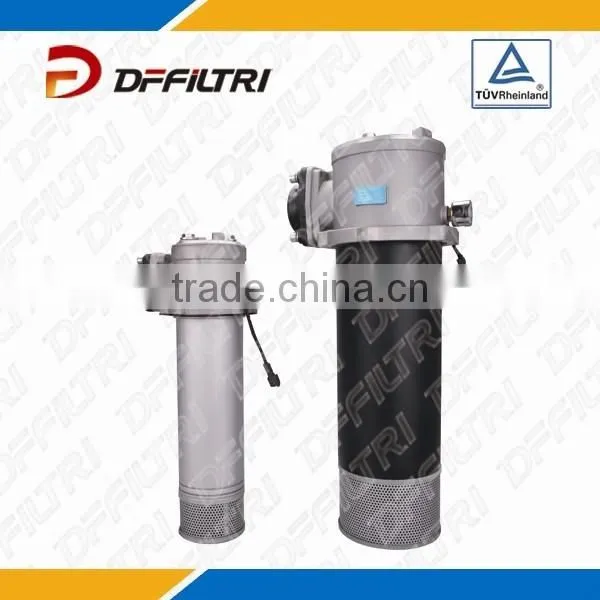

HIGH QUALITY RFB CHECK VALVE MAGNETIC RETURN FILTER
RFB series filter is applied in the return line of hydraulic systems for fine filtration,
filtering the metal particles and the rubber impurities caused by the wear in the hydraulic system,
so as to keep the oil clean. It has permanent magnet, check valve, by-pass valve etc. device.
Filter basic construction
This return filter is composed of filter cover and filter bowl; they can be installed on every side of the tank.
Filter bowl components can be connected by spinning and flange connection,
filter cover and filter bowl can be connected with thread.
1. Housing material
Cast aluminum, carbon steel
2. Seals
Perbunan (= NBR)
3. Filter element
Filter medium material
High strength carbon steel skeleton
4. Optional accessories
CYB -ⅠClogging indicator ≤ DC24V
CY-ⅡClogging indicator ≤ 220V
5. Type of connection (choose according to filter model)
Flanged connection

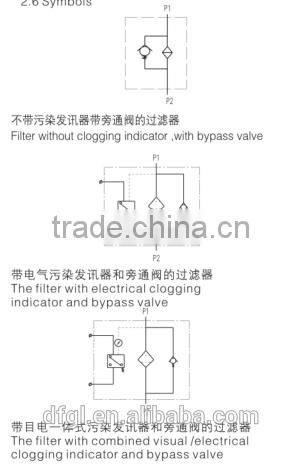

1. Symbols
2. Type Selection And Technical Data

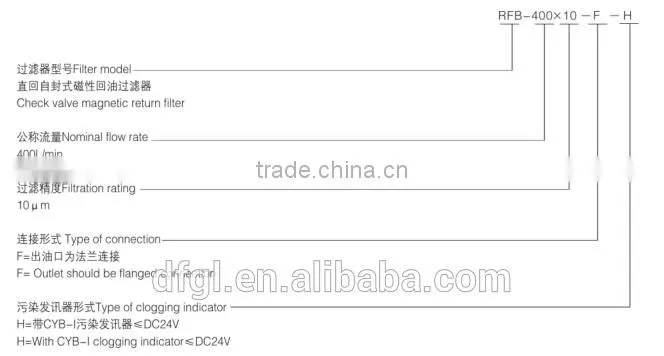

2.1 Order Example

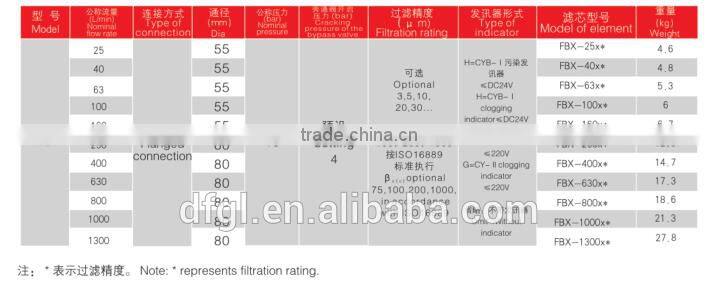

2.2 Technical Data

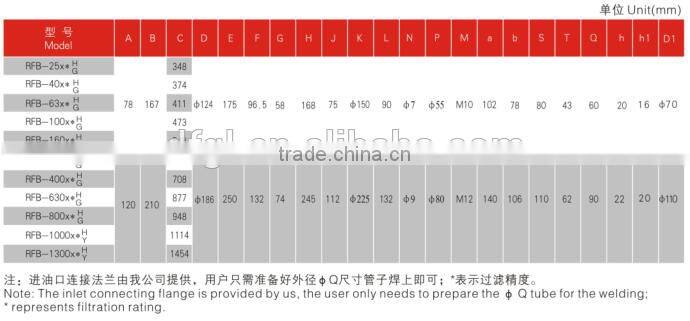

3. Model Selection
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
