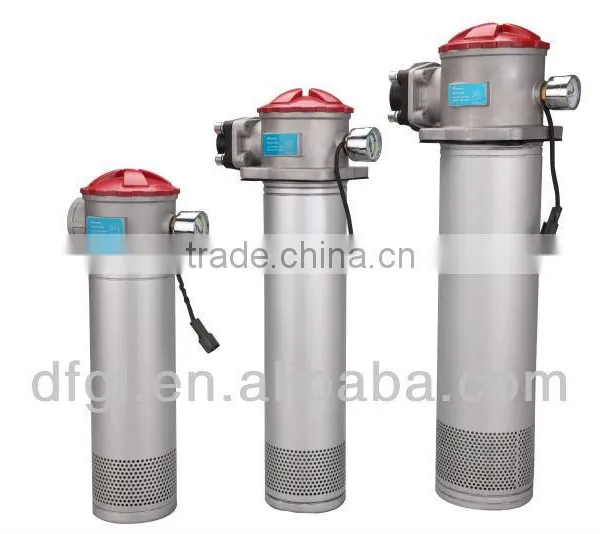

OEM RFA Hydraulic Filter Used in Tractor Hydraulic Tank Hydraulic Filter
1. PRODUCT INTRODUCTION
This kind of filter can be used in hydraulic system for oil return fine filtration, and can keep the oil back to tank clean.
This filter can be installed on the cover of the tank and the filter bowl is immersed in the oil tank, the direct return oil is adopted, it is more convenient to replace the filter element.
2. PRODUCT CHARACTERISTICS
This return filter consists of filter cover and filter bowl,equipped with bypass valve,diffuser,clogging indicator etc device.
2. 1 Housing Material
High strength casting aluminum alloy; high strength aluminum tube
2. 2 Seals
Perbunan (= NBR)
2. 3 Filter Element
2.3.1 Filter Medium Material:Metal Woven Mesh; Metal Fiber Sintered Mesh; Cotton Wood Pulp; Micro-glass Fiber; Chemical Fiber; Metal Woven Mesh; Micro-glass Fiber Composite Filter Material; Chemical Fiber Composite Filter Material.
2.3.2 High strength carbon steel skeleton
2. 4 Optional
CYB-Iogging indicator<=DC24V
CY-IIlogging indicator<=220V
2. 5 Type of connection (choose according to filter models)
Metric threaded connection; Flanged connection

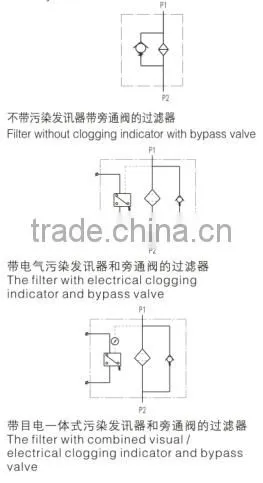

3. SYMBOLS
4. TYPE SELECTION AND TECHNICAL DATA
4.1 Order Example

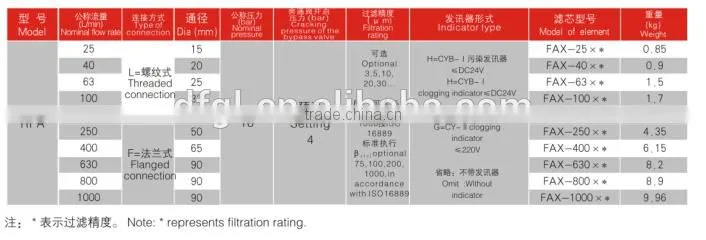

4.2 Technical Data

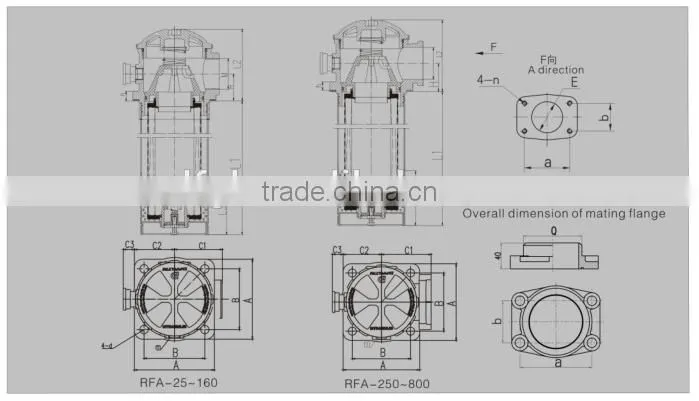

5. MOUNTING SIZE
Inlet Threaded Connection And Inlet Flanged Connection
6. ABOUT US
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
7. OUR ADVANTAGE
1) Adopting the new industrial concept
2) Establishing world-class R&D and testing center
3) Possessing powerful technical force and R&D strength
4) Having the world's advanced production equipment
5) Producing high quality products that comply with international and national standards
6) Outstanding quality products to meet or exceed customer's expectation
7) Professional and wholehearted pre-market after-sales service
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
