XNL Tank Mounted Return Oil Line Filter for Caterpillar
1. Product introduction
The XNL series filters can be installed at the mouth of returning oil in the hydraulic system, filtering the metal particles and the rubber impurities caused by the wear in the hydraulic system,
so as to keep the oil clean.
2. Product characteristics
Filter basic construction
XNL series filter can be installed directly inside the tank. It is composed of flange plate, connecting rod and oil filter element, which is equipped with permanent magnet, check valve, by-pass valve etc.
2.1 Housing material
Flange plate: Carbon structural steel plate
2.2 Seals
Perbunan (= NBR)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
CYB- | Clogging indicator≤DC24V; CYB- || Clogging indicator≤220V
2.5 Type of connection
Flanged connection
3. Product Pictures
3.1 Symbols

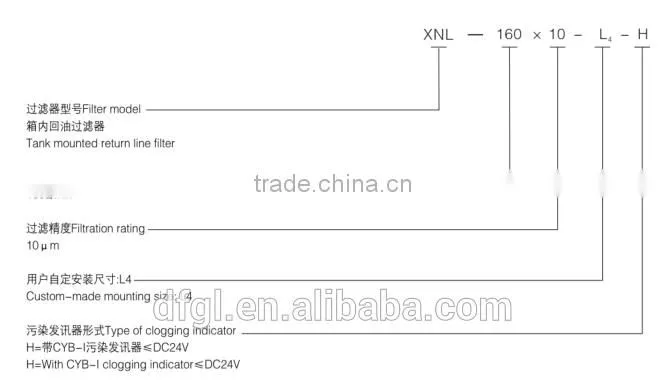

3.2 Order Example

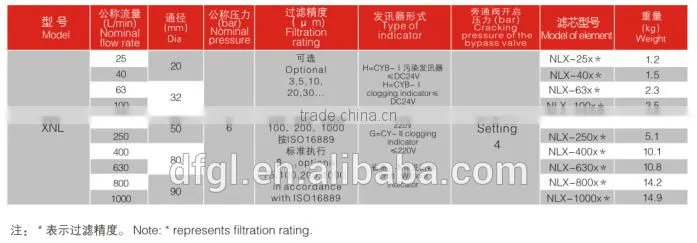

3.3 Technical Data

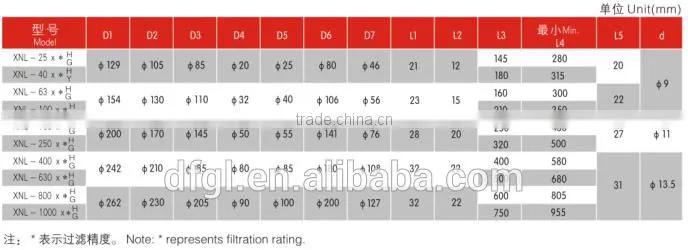

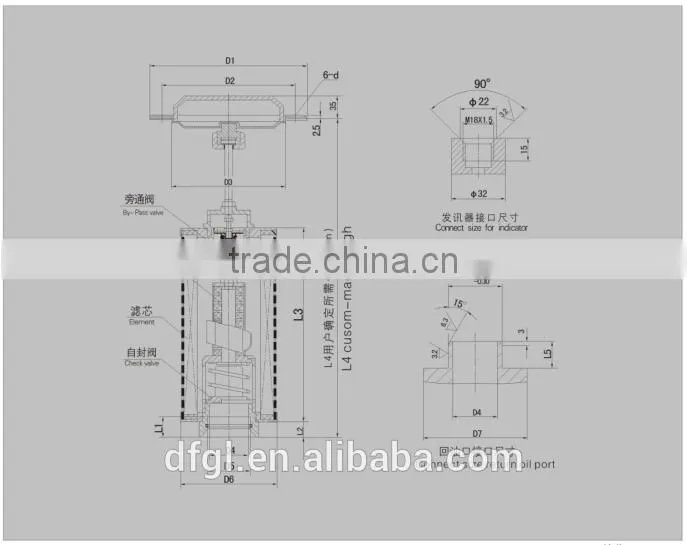

3.4 Mounting Size
5. About Us
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
