1. Brief introduction:
Filter head is outside of oil tank, the remaining is inside of the tank, so as to simplify the
system pipeline, and installation is convenient, the system arrangement is compact and beautiful.
2. Product Characteristics
Filter basic construction
This return filter consists of filter top cover and filter bowl, equipped with indicator, bypass
valve, magnetic device, when the filter element is blocked, can discharge automatically.
2.1 Housing material
High strength cast aluminum alloy; carbon steel
2.2 Seals
Perbunan (= NBR)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
CYB -ⅠClogging indicator ≤ DC24V
CY-ⅡClogging indicator ≤ 220V
2.5 Type of connection (choose according to filter type)
Flanged connection

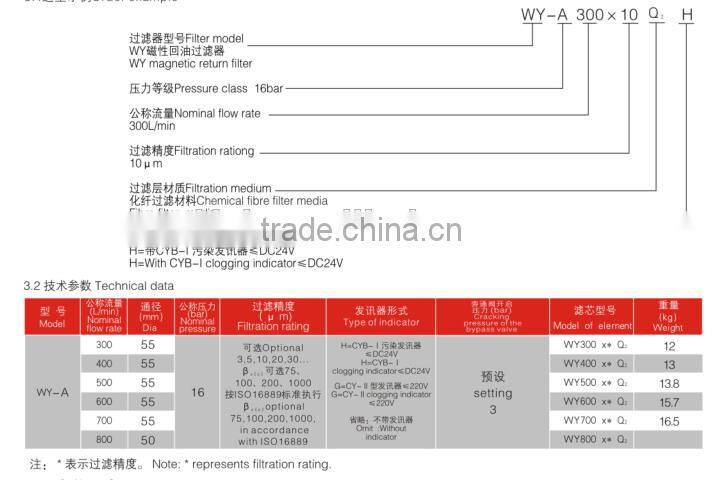

3. Type selection and technical data
4. Mounting Size
5. About Us
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
