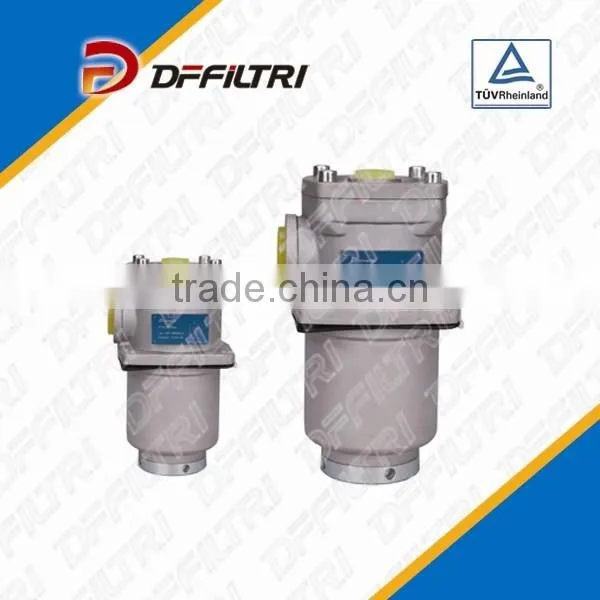

HYDRAULIC RF RETURN OIL FILTER FOR HYDRAULIC SYSTEM
RF series filters are used for oil return fine filtration of hydraulic system, which have high
accuracy, multi-function etc. characteristics.
Filter basic construction
Return filter is composed of filter top cover and bowl,equipped with indicator interface,
it is suitable for -10°C ~ + 100°C mineral oil, lubricating oil, fire resistant oil and rapidly
biodegradable oil etc...
1. Housing material
Filter housing : Aluminum
2. Seals
Perbunan (= NBR); Viton (= FPM)(Customizable)
3. Filter element
Filter medium material
High strength carbon steel skeleton
4. Optional accessories
CYB-Ilogging indicator<=DC24V; CY-IIloggingindicator<=220V
5. Type of connection
Threaded connection; Flanged connection

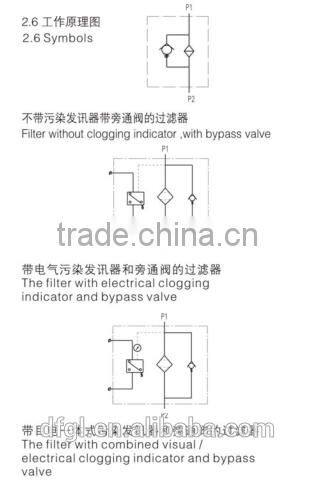

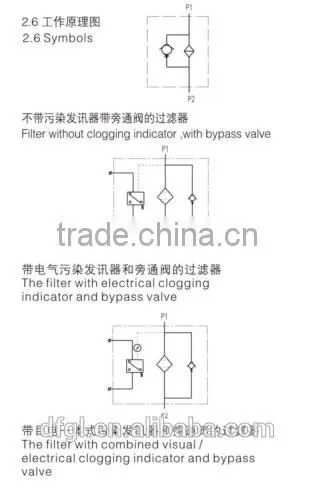

1. Symbols
2. Type Selection And Technical Data

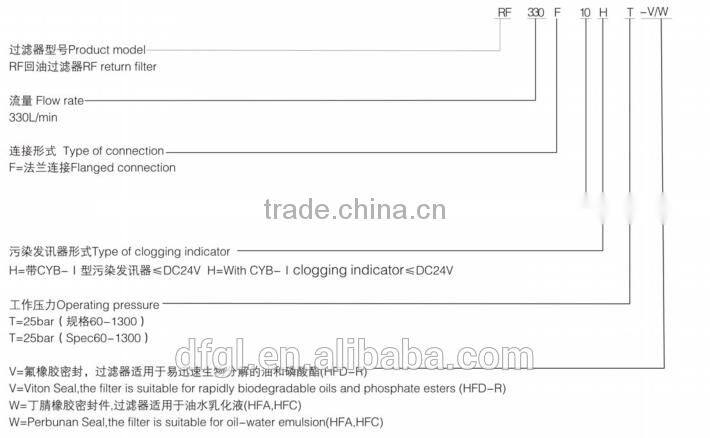

2.1 Order Example

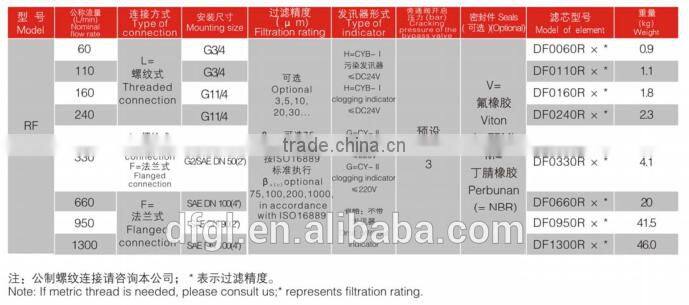

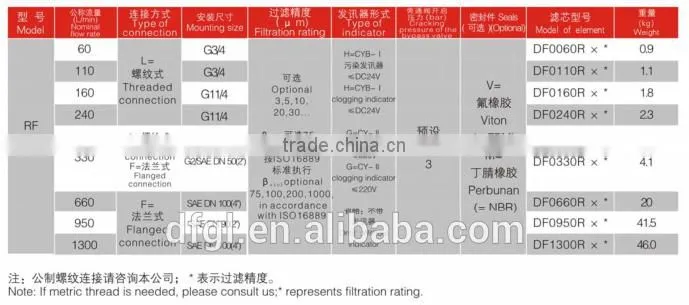

2.2 Technical Data
3. Model Selection
3.1
3.2.2
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
