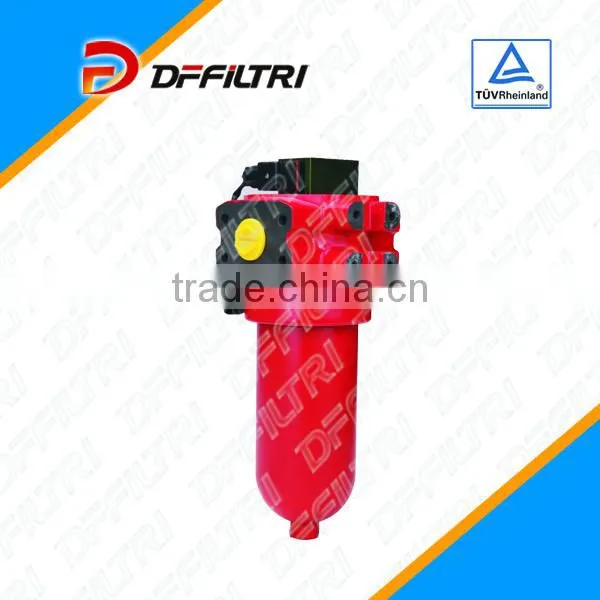

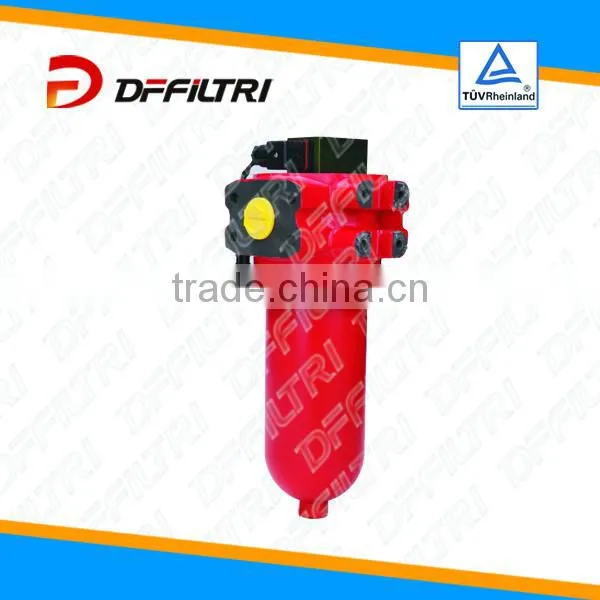

PLF-30* High Pressure Oil Line Filter For Industrial Machines
1. INTRODUCTION
PLF series filter is installed on the different pressure lines of the hydraulic system;
it has high oil-passing capacity, low initial pressure loss, high dirt-holding capacity and so on, which can meet the various requirements from the customers.
2. PRODUCT CHARACTERISTICS
Filter basic construction
PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type, according to the customer requirements, the flow direction and the mounting hole position can be custom-made.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM (-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Inch threaded connection; Flanged connection
3. TYPE SELECTION AND TECHNICAL DATA
4. MOUNTING SIZE

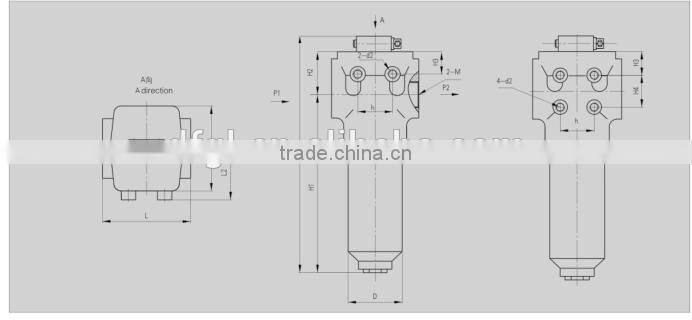

4.1 Threaded Connection

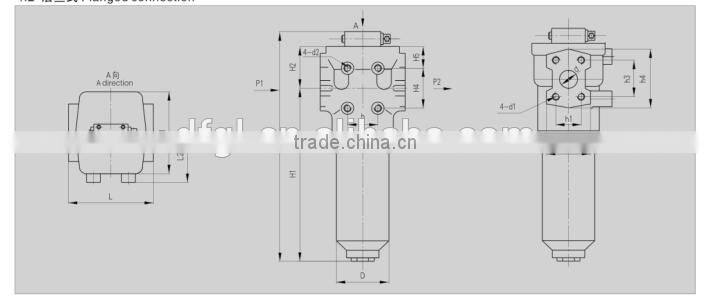

4.2 Flanged Connection
5. ABOUT US
1. Established in 1994 , about 21years experience .
2. Four series leading Products:
(a)Hydraulic system Cleaning&Filtration Device
(b)Complete Hydraulic Filters
(c)Hydraulic System Accessories
(d)Pump Valve Components..
3. Specialized research and development team .
4.Ninety-three thousand square meter(old plant and new plant).
5. Many stock filters .
6.The Testing Center of Xinxiang Filtration&Separation Industry Association
Xinxiang Dongfeng Filter Technology Co., Ltd. Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland) Telephone: 86-373-2677957 Mobile Phone: +86-18336074703 Fax: 86-373-2634868 |
