Hot Sales Hydraulic System LFZ Series Pressure Line Filter
1. Product Description
LFZ series filters are installed on the medium pressure line, with these characteristics of high filtration accuracy, small flow rate resistance,low initial pressure loss, high dirt-holding capacity, which can meet the various requirements from the customers (can replace Hydac LF series).
2. Product characteristics
Filter basic construction

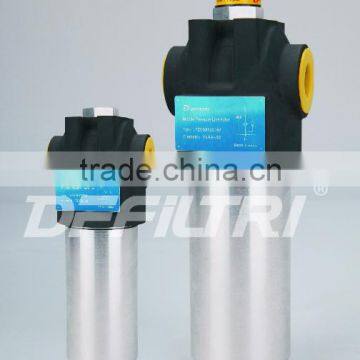

LFZ series filter consists of the cover and the spin-on housing .
2.1 Housing material
Filter cover: High strength casting aluminum alloy
Filter bowl: High strength aluminum alloy
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5 Type of connection (chosen according to the filter type)
Inch threaded connection

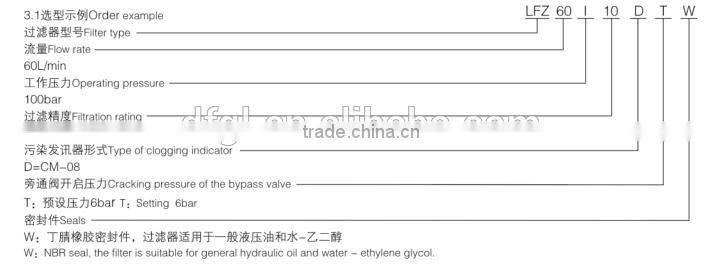

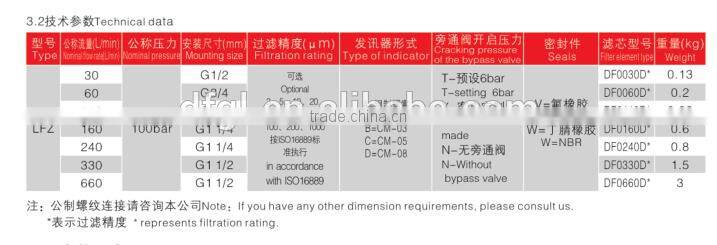

3. Type selection and technical data
4. About Us
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
