Home > Industrial Equipment & Components > Filtration Equipment & Parts > Oil Filter > Stainless Steel Filter GU-H100* Check Valve Pressure Line Filter Used In Pipeline

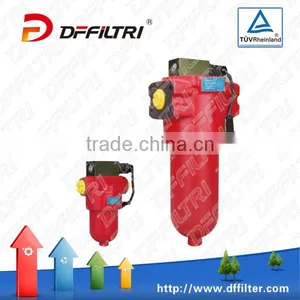

Stainless Steel Filter GU-H100* Check Valve Pressure Line Filter Used In Pipeline

Stainless Steel Filter GU-H100* Check Valve Pressure Line Filter Used In Pipeline photo-1
Stainless Steel Filter GU-H100* Check Valve Pressure Line Filter Used In Pipeline photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Press Filter
Structure Cartridge
Place of Origin Henan, China
Brand Name DFFILTRI
Model Number GU-H100*10FP, GU-H100*10FP
Power(W) Needed
Weight 12.4kg
Dimension(L*W*H) Stardard
Certification ISO9001:2008
Warranty 6 Months
After-sales Service Provided Overseas service center available
Product Description
Filtration rating (μm)
Optional 3, 5, 10, 20...
Filter bowl material
Filter bowl material
Normianl flow rate
100L/min
Application
Hydraulic system
Model Number
GU-H100*10FP
Certification
ISO9001:2008
Norminal pressure
320bar
Warranty
1 year
weight
12.4kg
Pressure Loss
Initial:1bar ; Max: 3.5 bar
Type of indicator
P=CS-V; Omit=Without clog
MOQ
5 Piece
Cracking pressure of the bypass
Setting 4
Price
5-30 PCS USD 20.00
Top cover material
Ductile cast iron
Port
Ningbo/Shanghai/Qingdao/Tianjin

Introduction:

GU-H series filters are high pressure type and used in the pressure line of hydraulic system. Fitler element is made of glass fibre.This new filter media  has high efficiency and large dirt capacity .The absolute filtration is high, beta ration is over 100.The differential pressure indicator signals wehn pressure drop across element reaches 0.35Mpa.As the pressure drop rises to 0.4MPa, the by pass valve in this filter will open allowing oil flowing directly. When the element being changed or cleaned , the oil of system can counter flow to prevent air and contaminant entering the system.The counter flow has not beed filtered and is quarter of this filter flow rate.



Detailed Images
Other Products
Our Company

DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.

DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
