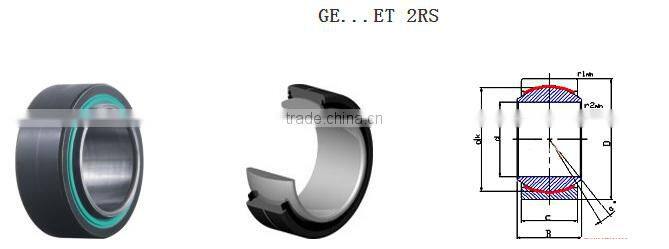

GE50ET 2RS series self-lubricating radial spherical plain bearing
The characteristics and performance parameters:
1, Material: the inner and outer rings are bearing steel(GCr15).
2, Heat Treatment: the inner and outer rings are all quenched . The outer ring are phosphating , and the inner ring surface are chrome-plating.
3, Structure: The outer ring has an axial slot.Sealing rings are attached on the both of the sides.The inside surface of the outer ring is stuck with a layer of PTFE fabric.
4, Performance Characteristic: It has the advantages of self-lubricating, abrasion resistance, self aligning and low friction. It is suitable for dusty enviroment , and applies to the machine which requires heavy radial load and axial load in a small-range direction.
| No. | Model | Dimensions(mm) | Load Ratings | Weight(Kg) | ||||||||
| d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | |||
| (KN) | (KN) | |||||||||||
| 1 | GE15ET 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 23 | 47 | 0.027 |
| 2 | GE17ET 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 30 | 60 | 0.041 |
| 3 | GE20ET 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 42 | 83 | 0.066 |
| 4 | GE25ET 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 68 | 137 | 0.119 |
| 5 | GE30ET 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 88 | 176 | 0.153 |
| 6 | GE35ET 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 112 | 224 | 0.233 |
| 7 | GE40ET 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 140 | 280 | 0.306 |
| 8 | GE45ET 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 180 | 360 | 0.427 |
| 9 | GE50ET 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 220 | 440 | 0.546 |
| 10 | GE60ET 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 345 | 695 | 1.04 |
| 11 | GE70ET 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 440 | 880 | 1.55 |
| 12 | GE80ET 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 567 | 1140 | 2.31 |
| 13 | GE90ET 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 690 | 1370 | 2.75 |
| 14 | GE100ET 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 858 | 1730 | 4.45 |
| 15 | GE110ET 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 924 | 1860 | 4.82 |
| 16 | GE120ET 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 1340 | 2700 | 8.05 |
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
