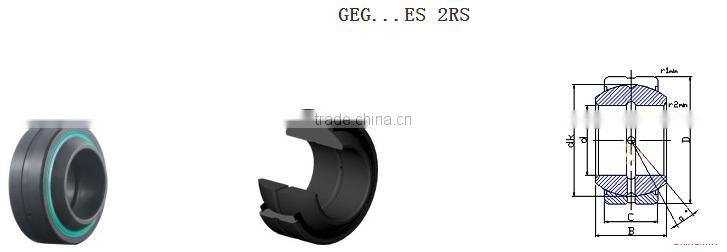

GEG50ES 2RS Series Lubricated Radial Spherical Plain Bearing
US$ 5 - 5
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
50,
Model Number:
GEG50ES 2RS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Radial Spherical Plain Bearing GE Series With Good QualityUS$ 0.2 - 3MOQ: 1 Piece -
GE30ES Series Lubricated Radial Spherical Plain BearingUS$ 5 - 100MOQ: 5 Pieces
-
GE Series Slide Bearings With Good Quality From ChinaUS$ 5 - 200MOQ: 1 Piece
-
Special Stainless Spherical Plain Bearing GE25ESUS$ 3 - 5MOQ: 1 Piece
-
Steel Radial Spherical Plain Bearing Ges...es SeriesUS$ 3 - 5MOQ: 1 Piece
Brand Name
SUMA or OEM
Bore Size
50,
Model Number
GEG50ES 2RS
Place of Origin
Jiangsu, China
Precision Rating
P0
Product Description
The characteristics and performance parameters:
1, Material: the inner and outer rings are bearing steel(GCr15).
2, Heat Treatment: the inner and outer rings are quenched and phosphating.
3, Structure: There are oil groove and oil hole in the inner and outer ring.The outer ring has an axial slot.Sealing rings are attached on the both sizes.
4, The sliding surface coated with MoS2 powder lubricant.
5, Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It has a wide inner ring and a large outer diameter ,which applies to the machine that requires large swing angle and large load.
| No. | Model | Dimensions(mm) | Load Ratings | Weight(Kg) | ||||||||
| d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | |||
| (KN) | (KN) | |||||||||||
| 1 | GEG15ES 2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 21 | 106 | 0.049 |
| 2 | GEG17ES 2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.083 |
| 3 | GEG20ES 2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 48 | 240 | 0.153 |
| 4 | GEG25ES 2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 62 | 310 | 0.203 |
| 5 | GEG30ES 2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 79 | 399 | 0.304 |
| 6 | GEG35ES 2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 99 | 495 | 0.408 |
| 7 | GEG40ES 2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 127 | 637 | 0.542 |
| 8 | GEG45ES 2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 156 | 780 | 0.713 |
| 9 | GEG50ES 2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 1.14 |
| 10 | GEG60ES 2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 2.05 |
| 11 | GEG70ES 2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 3.01 |
| 12 | GEG80ES 2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 3.64 |
| 13 | GEG90ES 2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 5.22 |
| 14 | GEG100ES 2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 6.05 |
| 15 | GEG110ES 2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9.68 |
| 16 | GEG120ES 2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 14.01 |
| 17 | GEG140ES 2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 19.01 |
| 18 | GEG160ES 2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 1530 | 7650 | 20.02 |
| 19 | GEG180ES 2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 2120 | 10600 | 32.21 |
| 20 | GEG200ES 2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 2320 | 11600 | 45.28 |
| 21 | GEG220ES 2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 2550 | 12700 | 51.12 |
| 22 | GEG240ES 2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 3030 | 15190 | 65.12 |
