GE30ES Series Lubricated Radial Spherical Plain Bearing
US$ 5 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
30,
Model Number:
GE30ES
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GE Series Slide Bearings With Good Quality From ChinaUS$ 5 - 200MOQ: 1 Piece -
Special Stainless Spherical Plain Bearing GE25ESUS$ 3 - 5MOQ: 1 Piece
-
Steel Radial Spherical Plain Bearing Ges...es SeriesUS$ 3 - 5MOQ: 1 Piece
-
GE Spherical Plain Bearing / Spherical Thrust Bearing Ge20es Ge30esUS$ 3 - 5MOQ: 1 Piece
-
Stainless Steel Radial Spherical Plain Bearings Ge8e, 15es, 25es, 30esUS$ 3 - 5MOQ: 1 Piece
Brand Name
SUMA or OEM
Bore Size
30,
Model Number
GE30ES
Place of Origin
Jiangsu, China
Precision Rating
P0
Product Description
The characteristics and performance parameters:
1, Material: the inner and outer rings are bearing steel(GCr15).
2, Heat Treatment: the inner and outer rings are quenched and phosphating.
3, Structure: There are oil groove and oil hole in the inner and outer ring.The outer ring has an axial slot.
4, The sliding surface coated with MoS2 powder lubricant.
5, Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It applies to the machine which requires heavy radial load and axial load in a small-range direction.

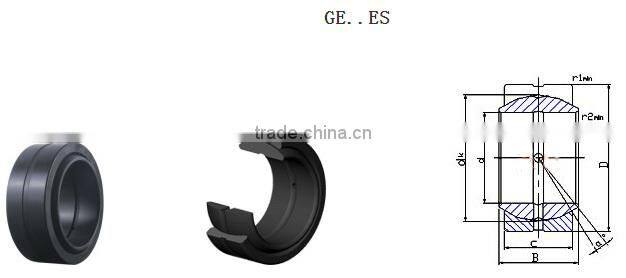

| No. | Model | Dimensions(mm) | Load Ratings | Weight(Kg) | ||||||||
| d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | |||
| (KN) | (KN) | |||||||||||
| 1 | GE15ES | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
| 2 | GE17ES | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
| 3 | GE20ES | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
| 4 | GE25ES | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
| 5 | GE30ES | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
| 6 | GE35ES | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 79 | 399 | 0.233 |
| 7 | GE40ES | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 99 | 495 | 0.306 |
| 8 | GE45ES | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 637 | 0.427 |
| 9 | GE50ES | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.546 |
| 10 | GE60ES | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1.04 |
| 11 | GE70ES | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 313 | 1560 | 1.55 |
| 12 | GE80ES | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.31 |
| 13 | GE90ES | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 488 | 2440 | 2.75 |
| 14 | GE100ES | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 607 | 3030 | 4.45 |
| 15 | GE110ES | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 654 | 3270 | 4.82 |
| 16 | GE120ES | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8.05 |
| 17 | GE140ES | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1070 | 5350 | 11.02 |
| 18 | GE160ES | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14.01 |
| 19 | GE180ES | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.65 |
| 20 | GE200ES | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.03 |
| 21 | GE220ES | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.51 |
| 22 | GE240ES | 240 | 340 | 140 | 100 | 300 | 1.1 | 1.1 | 8 | 2550 | 12700 | 39.91 |
